MacDon HC10 for D-Series User Manual
Page 48
4.
Retrieve stand (A) and hairpin (B) from conditioner
bundle #4798 and install stand in slot in base at lower
right-hand end of conditioner.
Secure stand with
hairpin.
5.
Remove shipping blocks if present.

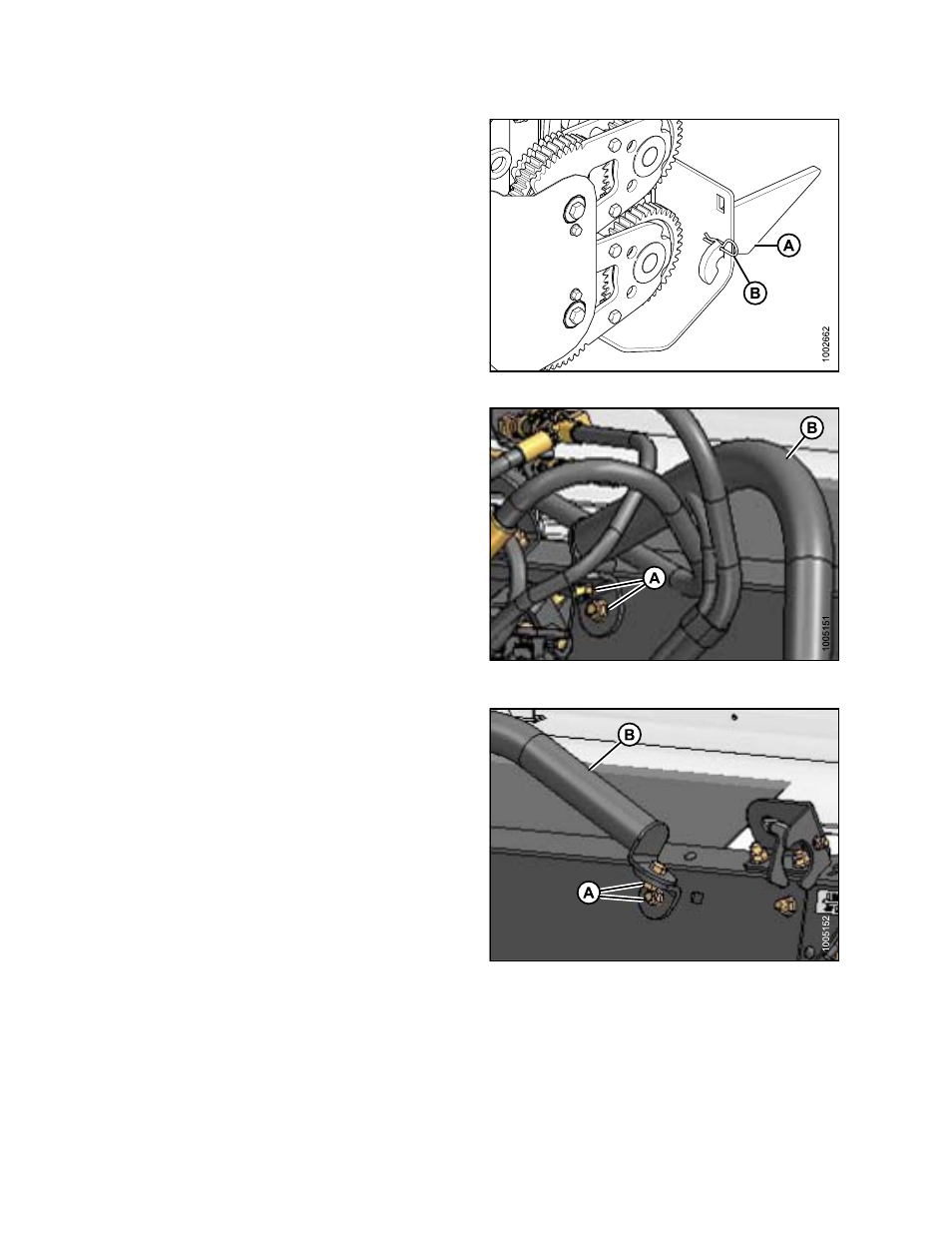

Figure 3.25
6.
Hardware at lifting arms has been tightened for
shipping. Loosen two bolts (A) per side just enough to
allow arms (B) to swing out.
Figure 3.26: LH Shown
Figure 3.27: RH Shown
169254
40
Rev. D
