UNLOADING AND ASSEMBLY

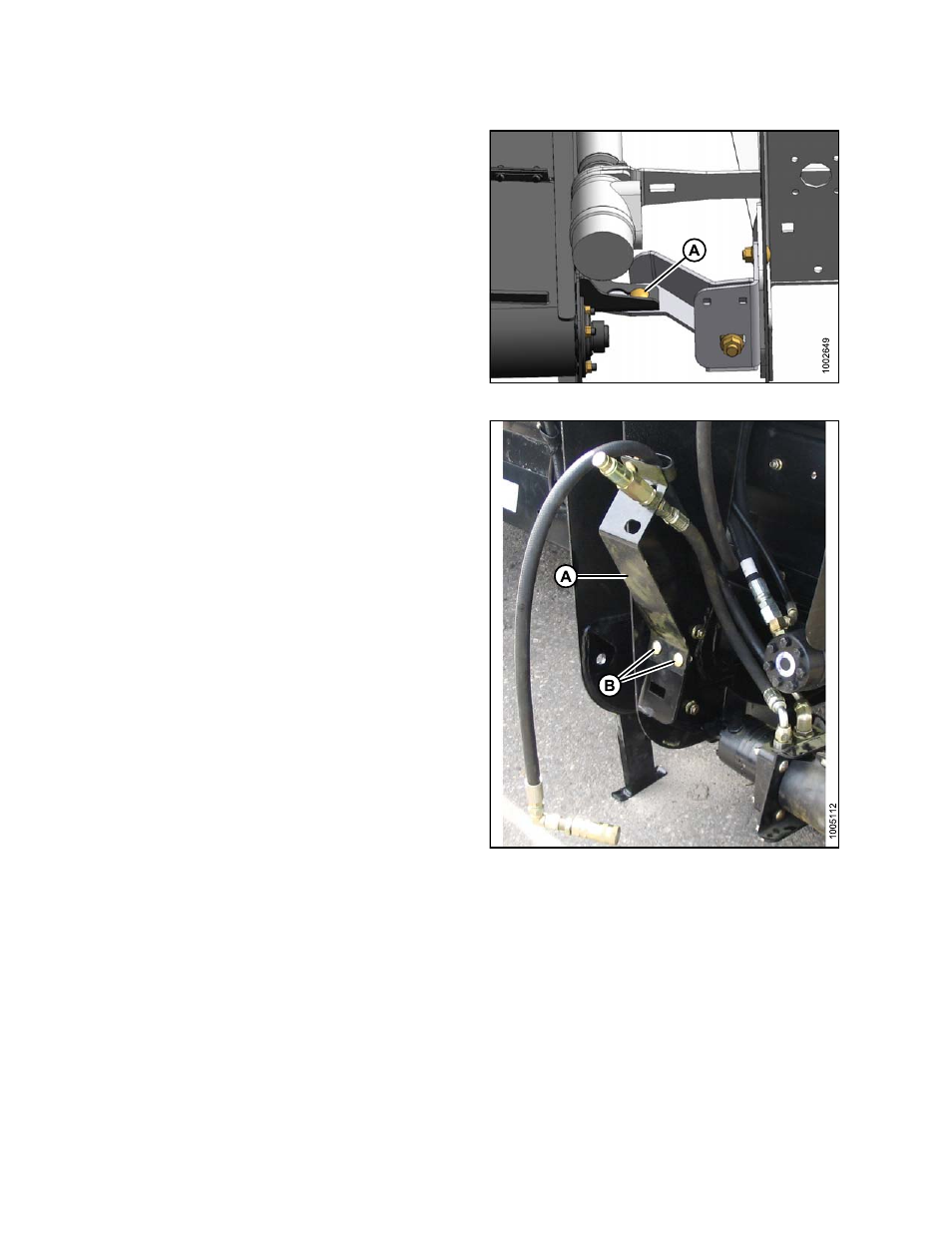

Figure 3.16: RH Side Shown
5. Attach the hose bracket (A) to the mounting bracket
with two 3/8 x 1.0 in. long carriage bolts (B).
6. Adjust header side drapers to overlap feed deck by
2-1/2 to 3 inches (65 to 75 mm). See header operator’s
manual for procedure.
