MAINTENANCE

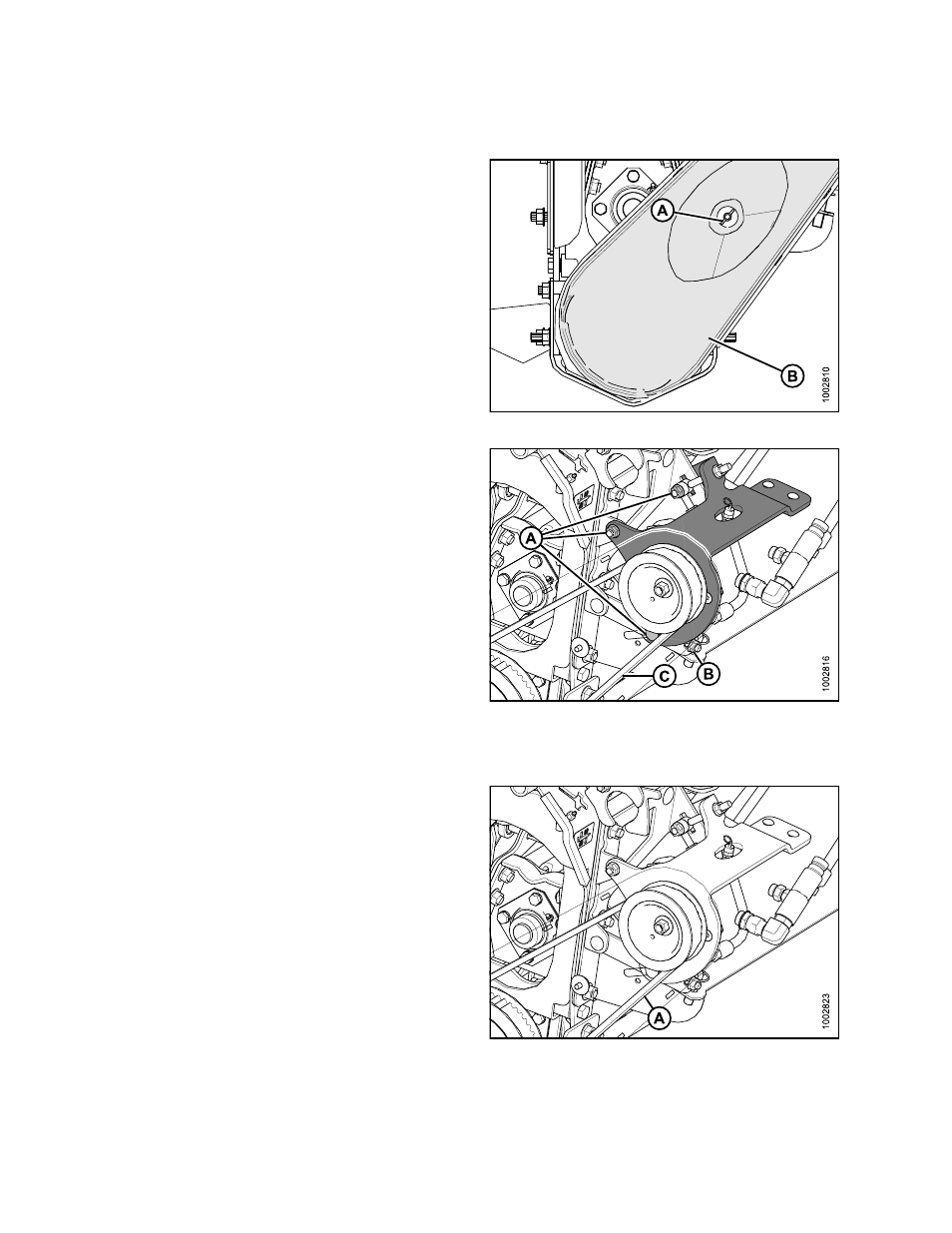

5.7.4 Removing Drive Belt
1. On the LH side, remove the wing nut and washer (A),
then remove drive cover (B).
Figure 5.20
2. Loosen three motor mount bolts (A).
3. Turn tensioning nut (B) counterclockwise to loosen.
4. Remove the belt (C).
Figure 5.21
5.7.5 Installing Drive Belt
NOTE: Depending on belt failure you want to
see 5.7.3 Checking and Adjusting Drive
Belt Tracking, page 98 before installing a
new belt.
1. Install belt (A) onto pulleys.
NOTE: When installing new belt, never pry belt
over pulley. Be sure adjusting device is
fully loosened, then tension belt.
Figure 5.22
169254
100
Rev. D
