26
Sound Level Meter
Overview

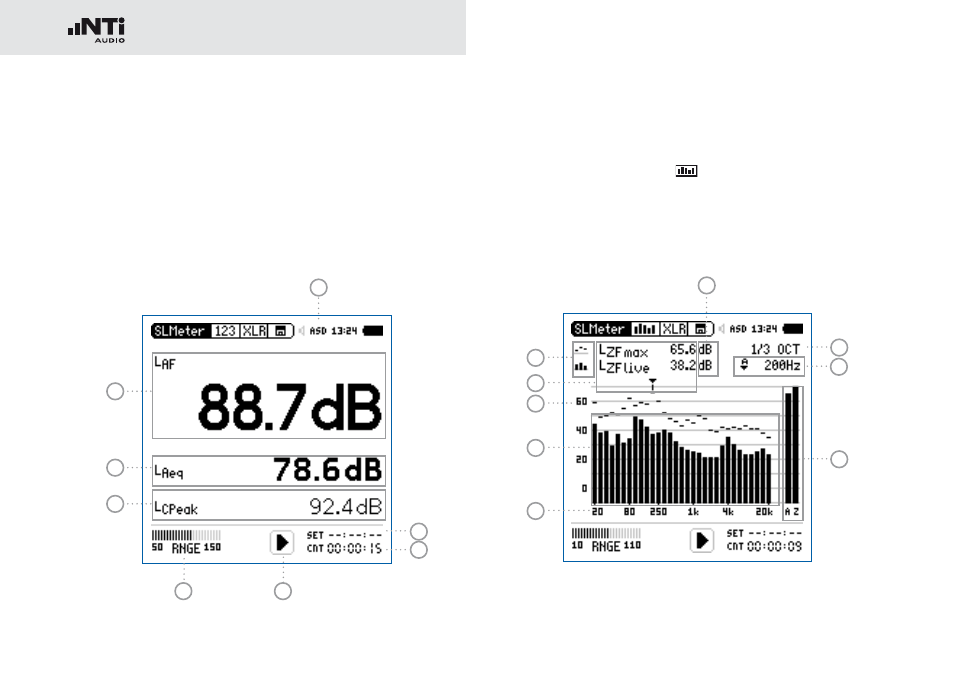

Numeric Result Page
The numeric result page 123 SLMeter displays the selected
broadband sound level results. You can change the font size of
the result. Depending on the font size chosen, the XL2 shows
three or five results simultaneously. Individual frequency
weighting, time weighting, actual, minimum, maximum and
correction values can be chosen for each displayed result.
8
4 5
6
7
1
2
3
Real-Time Analyzer Page
The real-time analyzer page RTA measures and displays
the 1/3 or 1/1 octave spectrum from 6.3 Hz to 20 kHz including
wideband results. The real-time spectrum RTA is measured in
parallel with the A and Z-weighted wideband levels.
14
13
11
12
16
9
10
15
17
