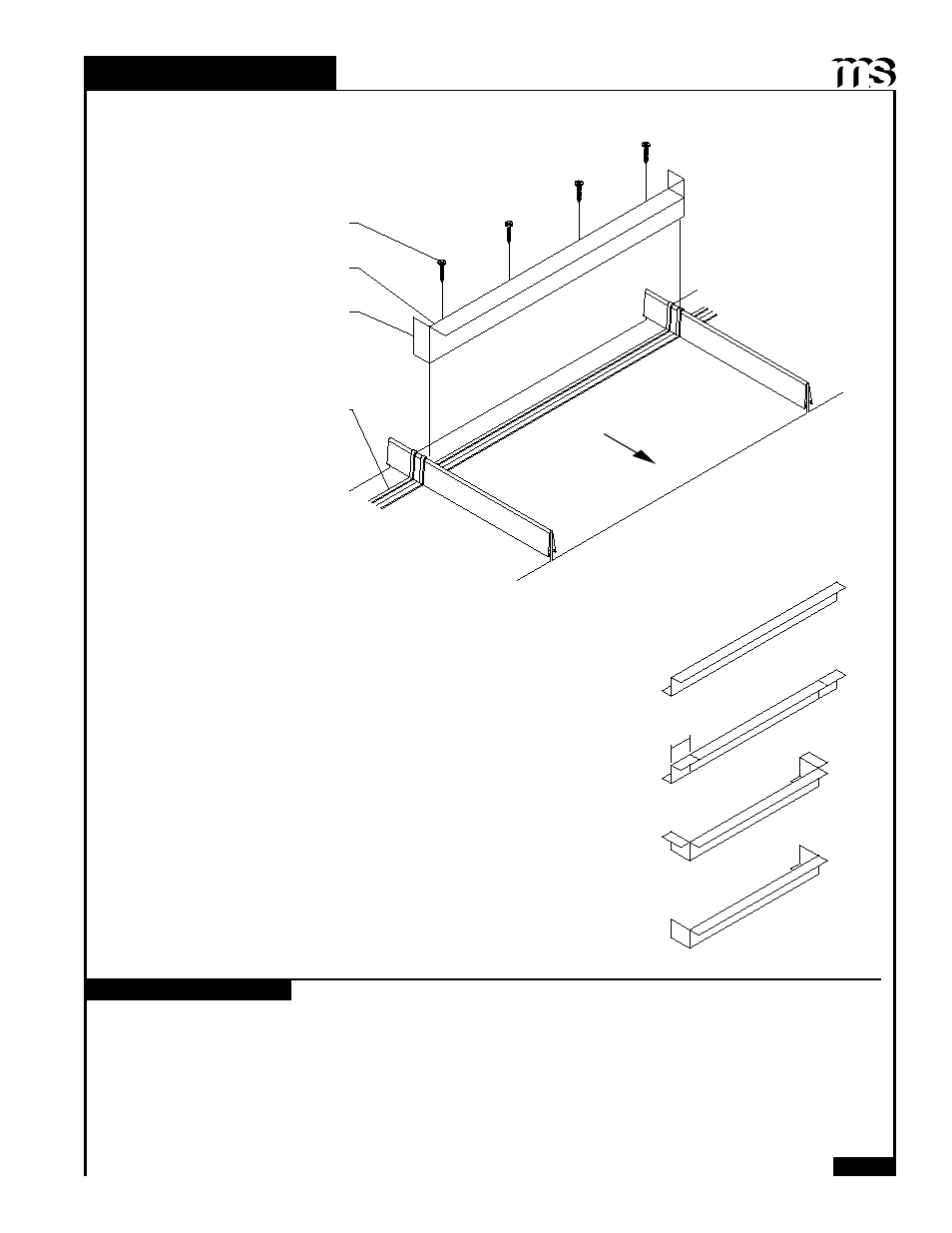

ARCHITECTURAL Z-CLOSURE INSTALLATION
INSTALLATION NOTES
Architectural Z-Closure
Field cut and bend back 1"
Double Bead Tape Sealant
Field cut and bend back 1"
1. Place a row of Double Bead Tape Sealant across panel and over each rib approximately 4" from panel end. Before
proceeding, make sure Z-Closure placement will accomodate flashing.
2. Field cut the Z-Closure 2" longer than the panel width. Snip the top and bottom leg of the Z-Closure and bend both sides
back (as shown above).
3. Fasten through the Z-Closure, Tape Sealant, Magna-Loc panel, and substrate with appropriate fasteners.
4. Apply a row of Double Bead Tape Sealant across the top of the Z-Closure filling any gaps or openings around the panel
ribs. This will be fastened through when the flashing is installed.
SLOPE
#10-12 x 1" PHW
HIGHSIDE
3:12 Slope
Minimum
