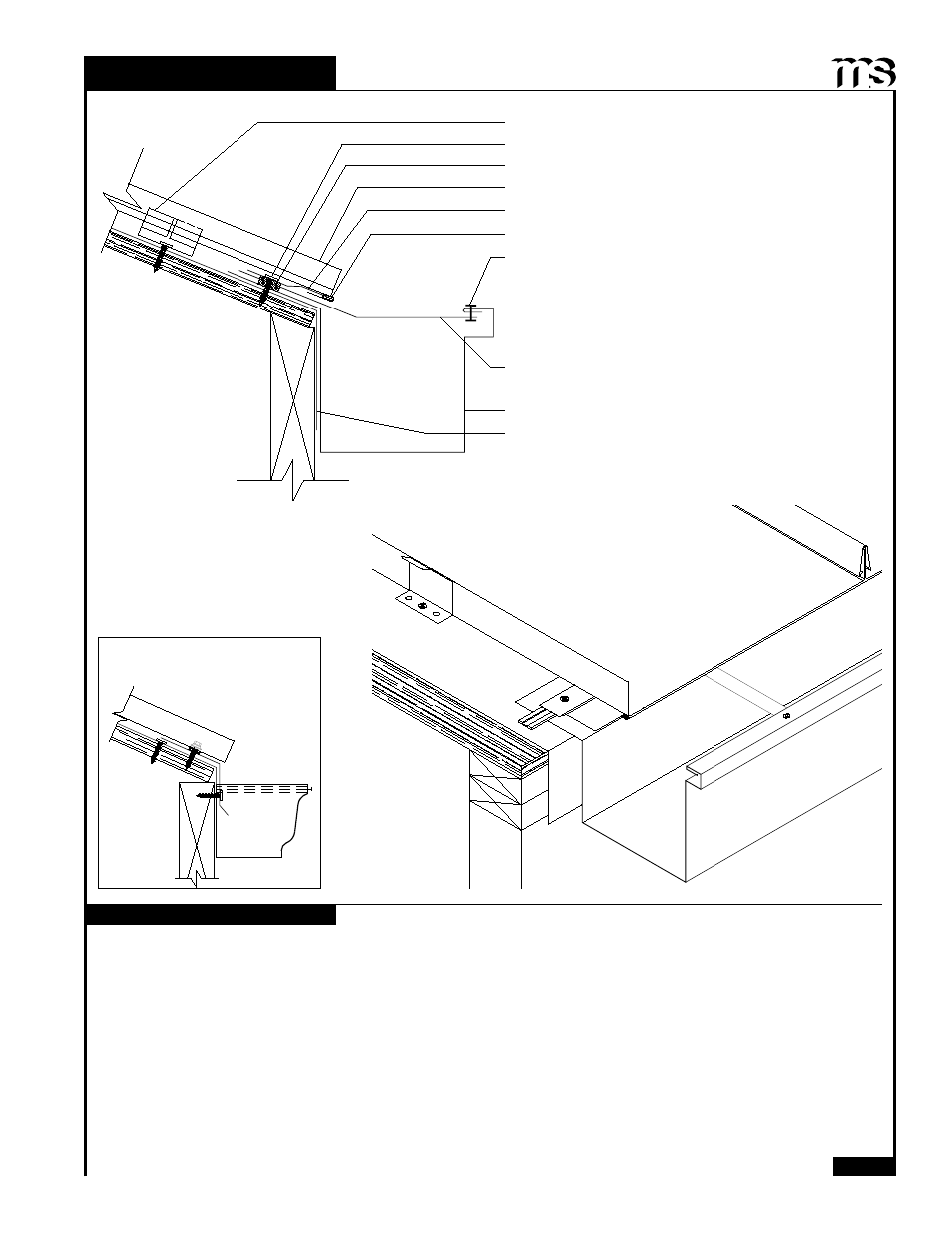

ARCHITECTURAL GUTTER WITH OFFSET CLEAT DETAIL
INSTALLATION NOTES
(Direct Fasten)
(Optional for Image II)
Pancake Head Woodscrew (1'-0" o.c.)
Tube Sealant
Double Bead Tape Sealant
Offset Cleat
Box Gutter
Roof Panel
Moisture Barrier (by others)
Pop-Rivet
Universal Gutter / Downspout Strap
Clip
All Gutter Flashings must be installed prior to panel installation.
1. Install Box Gutter flashing back against substrate. To hold Box Gutter flashing in place, fasten to substrate with
#10-12 x 1" Pancake Head Woodscrew 4'-0" o.c.
2. Install Universal Gutter/Downspout Straps every 3'-0" of gutter length to substrate with #10-12 x 1" Pancake Head
Woodscew, and fasten to Box Gutter with (1) Pop Rivet per Strap.
3. Apply a row of Double Bead Tape Sealant to bottom leg of Offset Cleat, position on back leg of Box Gutter, and fasten
to substrate with #10-12 x 1" Pancake Head Woodscrew, 12" o.c.
4. Install panel by engaging field hemmed end of panel (see pages 59 and 60) to Offset Cleat (see pages 24-34 for panel
installation).
5. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a
bead of Tube Sealant between the flashings and securing with pop rivets 2.5" o.c.
6. Note: Size and gauge of box gutter must be designed to applicable governing building code.
Panel rib must be field
notched and flat part
of panel must be field
bent to accept offset
cleat (see pages 59 and
60).
3:12 Slope
Minimum
