© Metal Sales Manufacturing Corporation / Subject to change without notice, effective 02/09.
50
ARCHITECTURAL

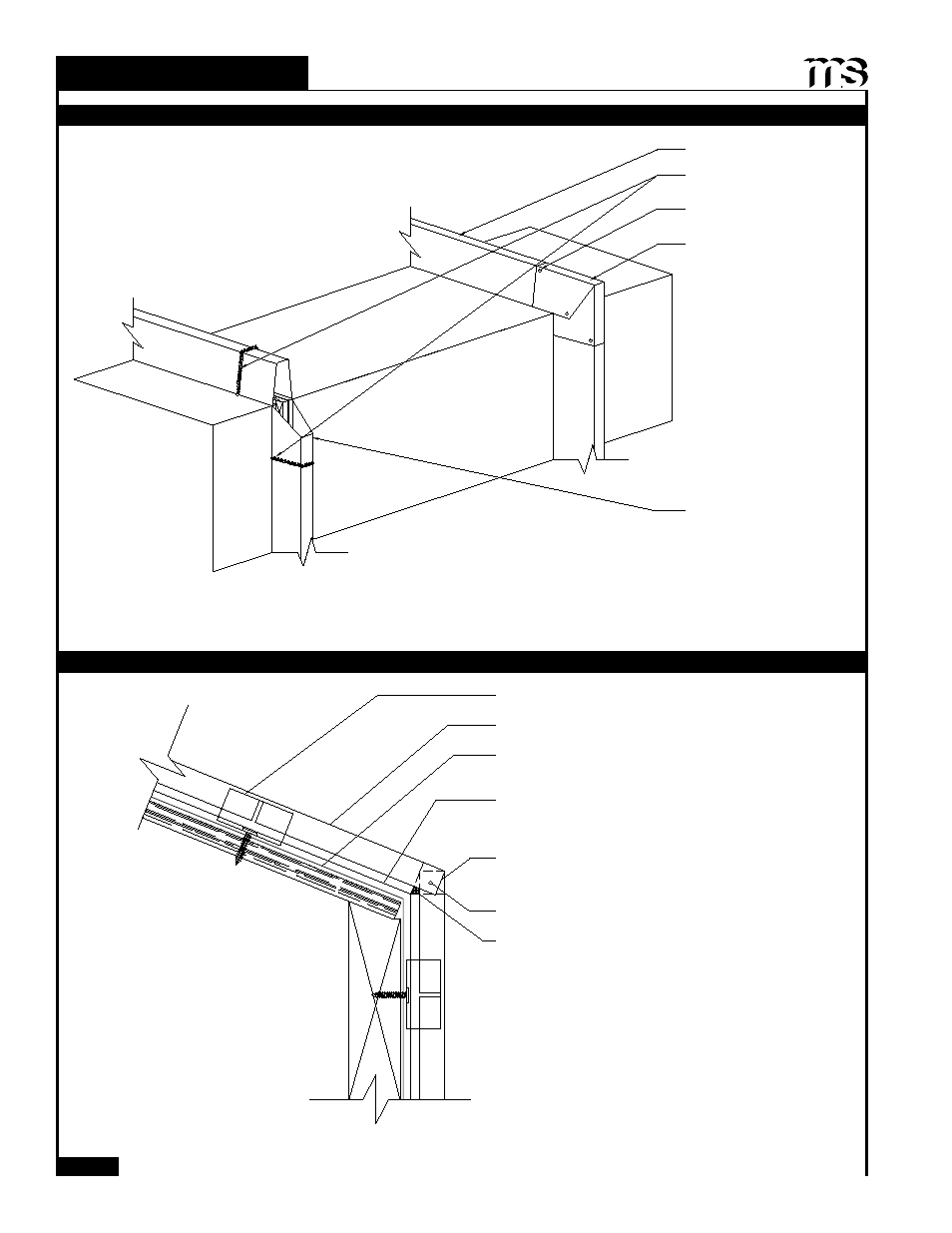

PRO-LOC TRANSITION
Pro-Loc Panel
Tube Sealant
Pop-Rivet (3 per side)
Pro-Loc Rib Cover
Field Notch &
Bend Panel
Note: Concealed Clip System (CCS) is recommended for this application.
Do NOT use Concealed Direct Fasten (CDF).
TRANSITION DETAILS
MINI / MAXI-BATTEN TRANSITION
Mini or Maxi-Batten Panel
Moisture Barrier (by others)
3DQ WR EH ¿HOG FXW DQG EHQW E\ LQVWDOOHU
Pop-Rivet (1 per side)
Tube Sealant
Clip
%DWWHQ WR EH ¿HOG FXW DQG IDVWHQHG ZLWK 3RS5LYHWV
3:12 Slope
Minimum
3:12 Slope
Minimum
