Visualising in the ApplicationTemplate PackML
Extending the visualization
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

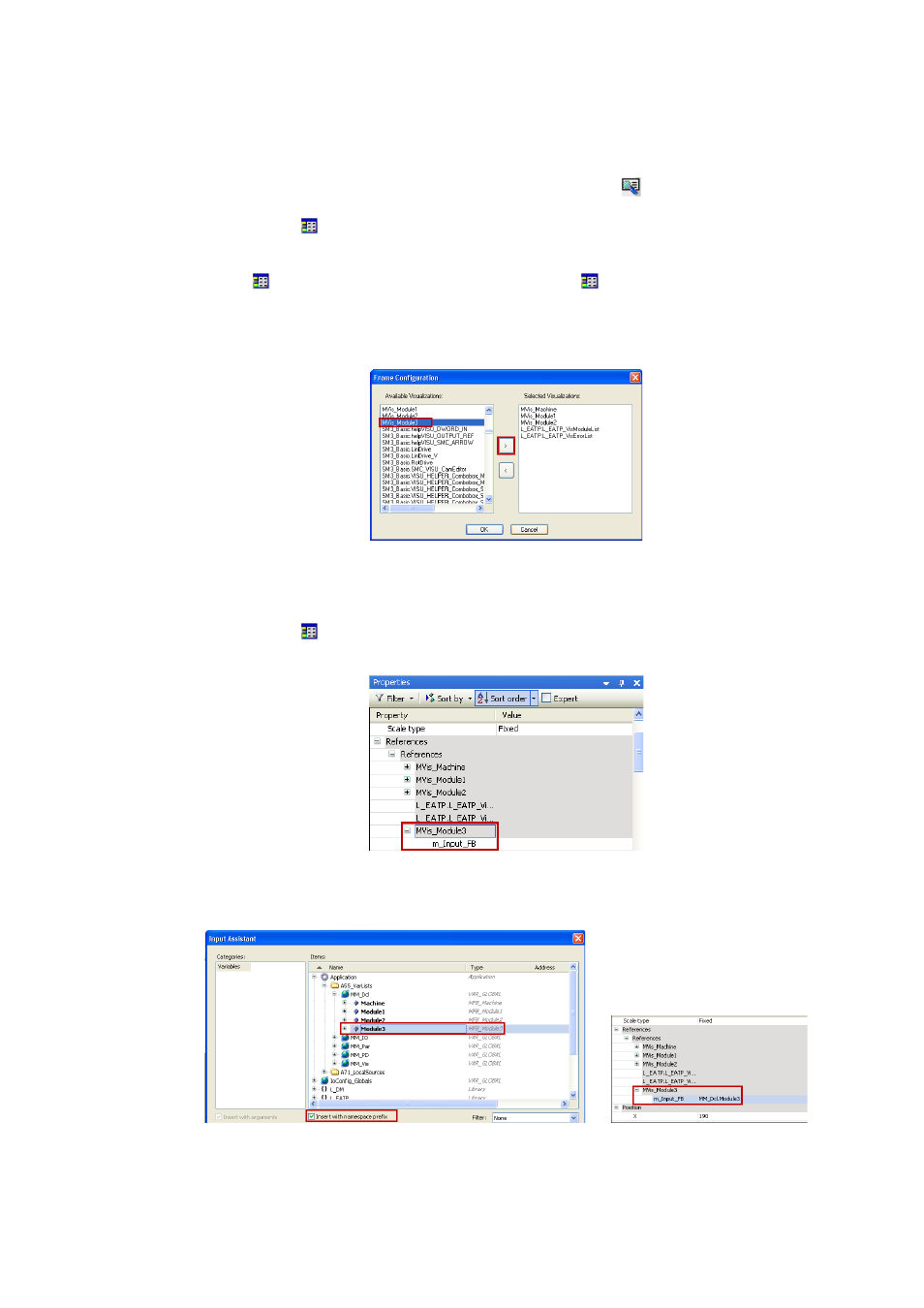

2. Open the visualization element list:
• Call + or the menu command Visualisation Element list.
3. Go to the Element list tab and select the #0 Frame visualization.
• Execute the Frame selection command by right-clicking the visualization frame.
• Select Element list: Command Visualisation Element list (or +).
4. Call the Frame selection by right-clicking.
• In the following dialog window, the frame visualizations are listed in the order in which
the buttons/control elements are arranged.
• Highlight the visualization of the new module (example: MVis_Module3).
• Click the > button to select the visualization.
• Confirm the selection by clicking OK.
5. Go to the Element list tab and select the #0 Frame visualization.
• Go to the Properties dialog window and select the Referenced visualisations area.
Assign the required data to the corresponding visualization:
• Click the visualization name.
• Click the desired field in the area on the right of m_Input_FB.

• Note: Activate the  Insert with namespace prefix option.
