Preconditions
System requirements
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3 Preconditions
3.1 System requirements

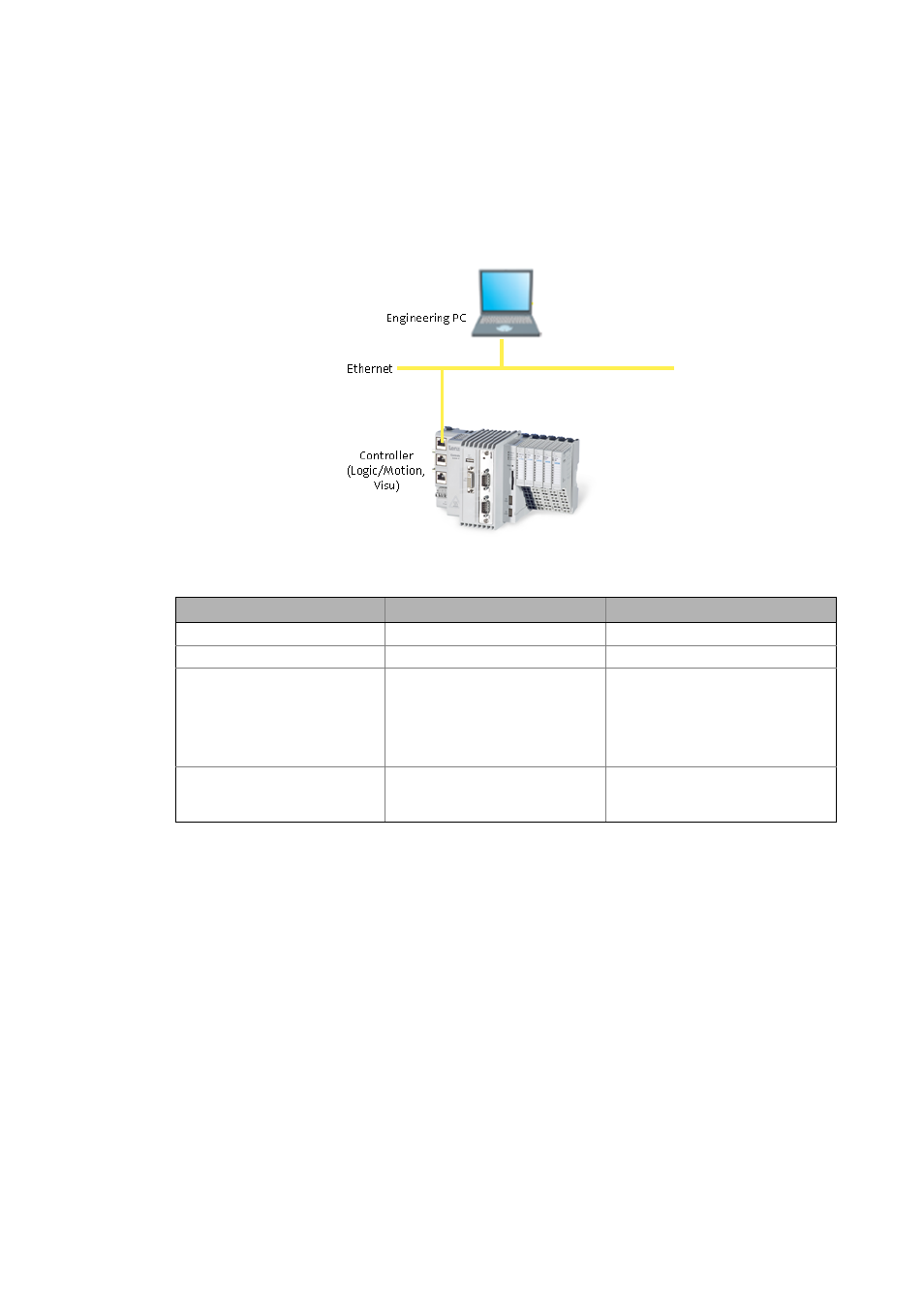

[3-1] Sample configuration with a Controller 3200 C
3.2 Setting up communication to the Controller
• Connect the Engineering PC with the controller via a network cable. The »PLC Designer«
accesses the controller via Ethernet.
• Make the IP settings with the »PLC Designer«.

How to check the communication settings:
1. Double-click the desired controller in the Devices view.
2. Make the desired settings on the Communication settings tab.
• Click the Add gateway button to insert a gateway.
Engineering PC Controller
Hardware PC/notebook PLC (Logic) from firmware V3.8
Operating system Windows XP Windows CE
Required Lenze software »PLC Designer« from V3.8
• Contains the
ApplicationTemplate PackML
• Contains the Lenze library
"L_EATP_ApplicationTemplate.co
mpiled-library"
Runtime software
• Logic
• Motion (for this purpose, the project
data must be updated: "Update
Device")
Further requirements - Depending on the application case:
• CAN-/EtherCAT bus system
• CAN-/EtherCAT node
