Working with the ApplicationTemplate PackML
Creating module applications
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.11.2 Integrating a module application
This section describes the procedure for integrating a newly created module application into a
machine module.

Tip!
In the ApplicationTemplate, all positions that are to be edited if a new module application
is to be integrated are marked with the AT_ACTION_ADD_MODULEAPPLICATION keyword.
The search function in the »PLC Designer« makes it easier to find the positions to be edited:
• Execute the menu command EditFind&replaceFind.
• Enter the required keyword and search/continue to search in order to navigate to the
corresponding positions in the ApplicationTemplate PackML.
Example: Integration of the module application into the Task_Mid task.

How to integrate a module application:
Taking the MM_Module1 machine module as a basis, the example shows how the newly created
App2 module application is to be integrated into the ApplicationTemplate PackML.

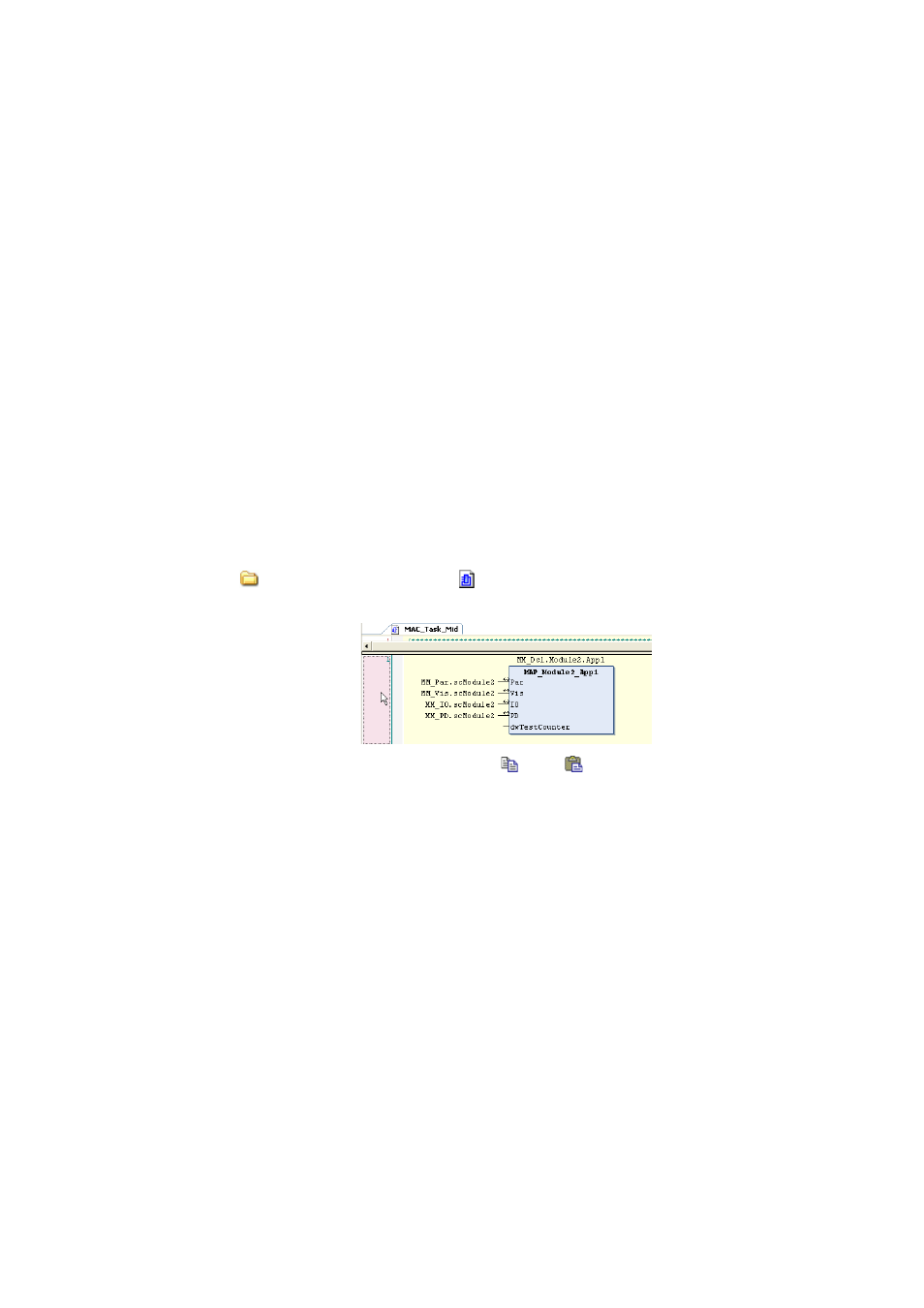

1. Call of the newly created module application in the corresponding task
( A11_ModuleAppCalls folder, MAC_Task_Mid block).
• Highlight the MAP_Module block.
• Copy and Paste the block (right click: Copy/ Paste)
