6 Overview - the folder structure in the ApplicationTemplate PackML

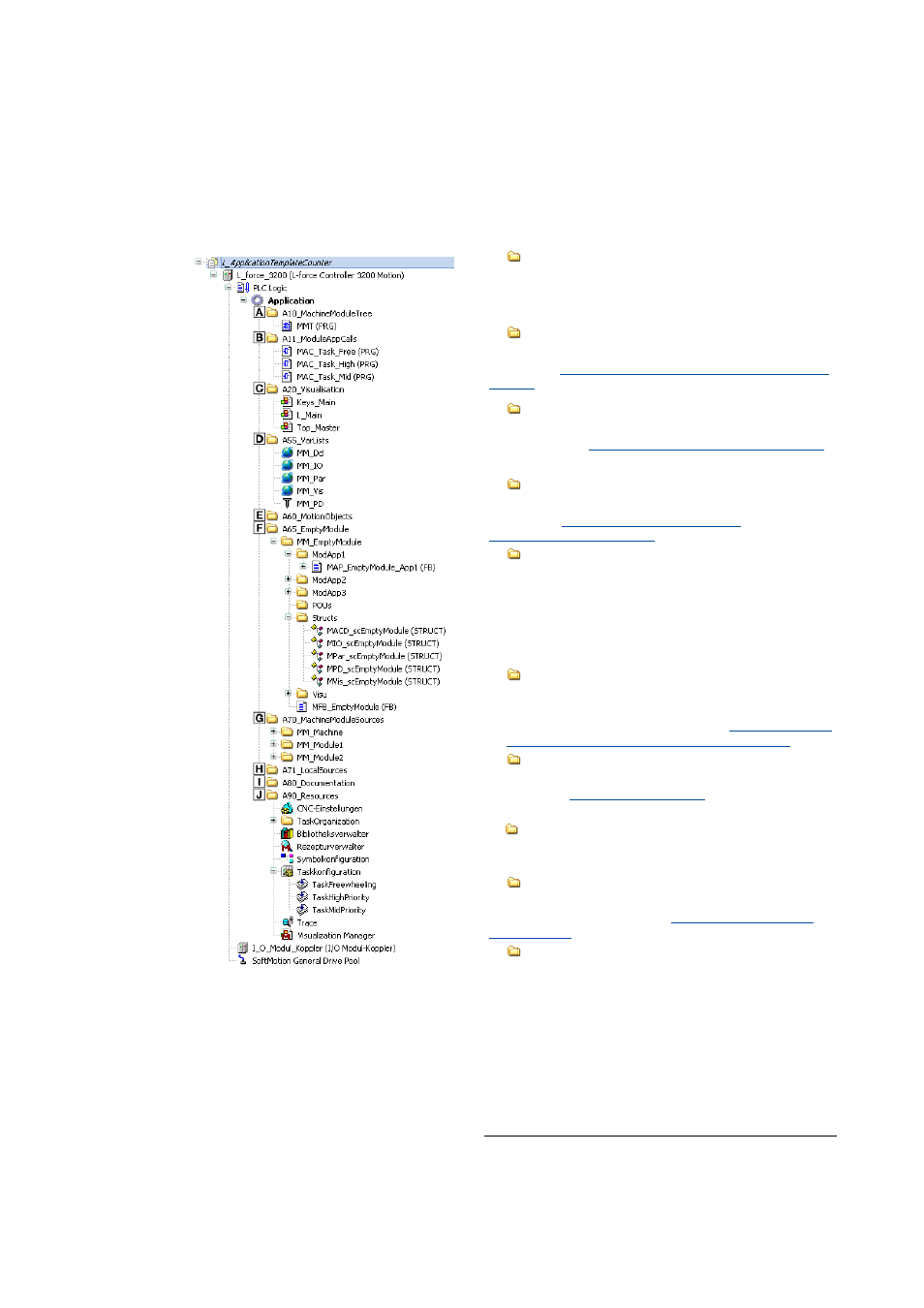

The Lenze ApplicationTemplate PackML facilitates programming with the »PLC Designer«. The
ApplicationTemplate PackML has the following structure:
 A10_MachineModuleTree (MMT)
The Machine module tree maps the mechatronic
functionality of the machine structure in the form of
machine modules (MM).
 A11_ModuleAppCalls (MAC)
...contains the assignments of module applications (MAP) to
the tasks.  Assigning the module application (ModApp) to
the task ( 43)
 A12_PackML_Configuration
...contains the configuration of the operating modes and the
state machine.  Predefined operating modes in ModApp1
( 20)
 A20_Visualisation
...contains the visualizations for the device-independent
functions.  Getting started - operating the
ApplicationTemplate PackML ( 35)
 A55_VarLists
...contains the declarations of the global variables:
• Machine modules used: MM_Dcl
• IO variables: MM_IO
• Parameters: MM_Par
• Variables for an external visualization: MM_Vis
• Persistent data: MM_PD
 A66_EmptyModule_PackML
• ...contains the source data of the machine modules
• ...contains the EmptyModule_PackML template for
creating your own machine modules.  Creating machine
modules: Copy/insert machine module templates ( 41)
 A70_MachineModuleSources
• ...contains the individually created machine
modules  Machine modules (MM) ( 16)
• ...contains the visualization of the machine modules.
 A71_LocalSources
...contains machine-independent enumerations, function
blocks, structures, visualisations.
 A75_UserTags
...contains data elements to be defined individually that can
be programmed additionally.  User Tags: Defining own
data elements ( 59)
 A90_Resources
...contains the system information such as:
• task settings,
• used libraries,
• Recipe manager,
• Visualization manager.
