Working with the ApplicationTemplate PackML
Creating module applications
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.11 Creating module applications
This chapter describes how to create a module application.

Tip!
In the ApplicationTemplate PackML, all positions that are to be edited if a new module
application is to be created are marked with the
AT_ACTION_CREATE_NEW_MODULEAPPLICATION keyword.

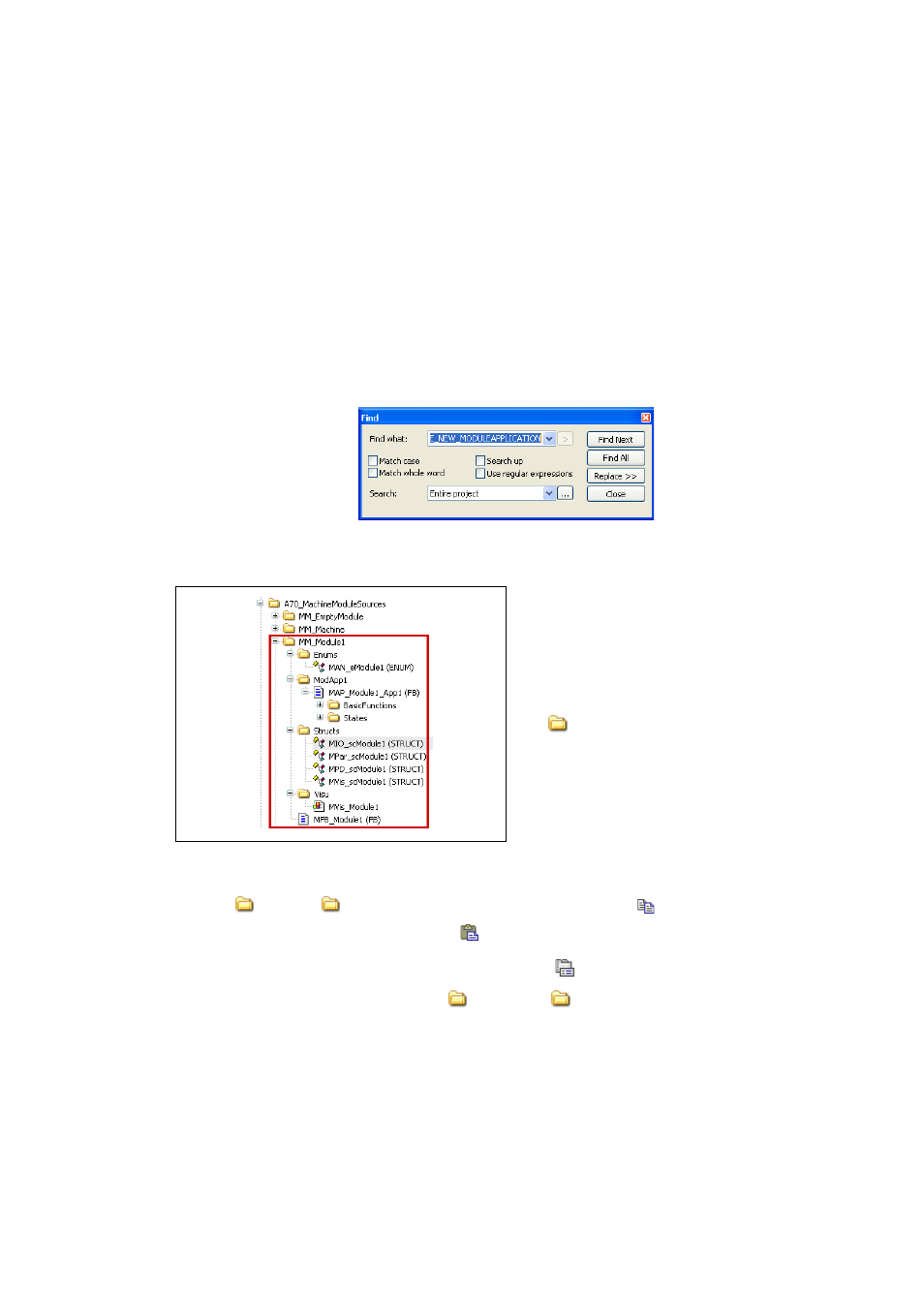

The search function in the »PLC Designer« makes it easier to find the positions to be edited:
• Execute the menu command EditFind&replaceFind
• Enter the required keyword and search/continue to search in order to navigate to the
corresponding positions in the ApplicationTemplate PackML.
Example: Extend the MM_Module1 machine module by a module application.

How to create a module application:
1. Copy the MM_Module1\ModApp1 folder (right click: Copy) and insert it in the
MM_Module1 folder (right click: Paste).
Rename the following elements (by right click Properties):
• The folder name (previously: ModApp1): ModApp2
• Initial situation:
• A machine module (example:
MM_Module1) is to be extended by a
module application.
• Create the module application in the
following folder of the machine module:
MM_Module1\ModApp1
