7.6 Visualisation of the machine modules

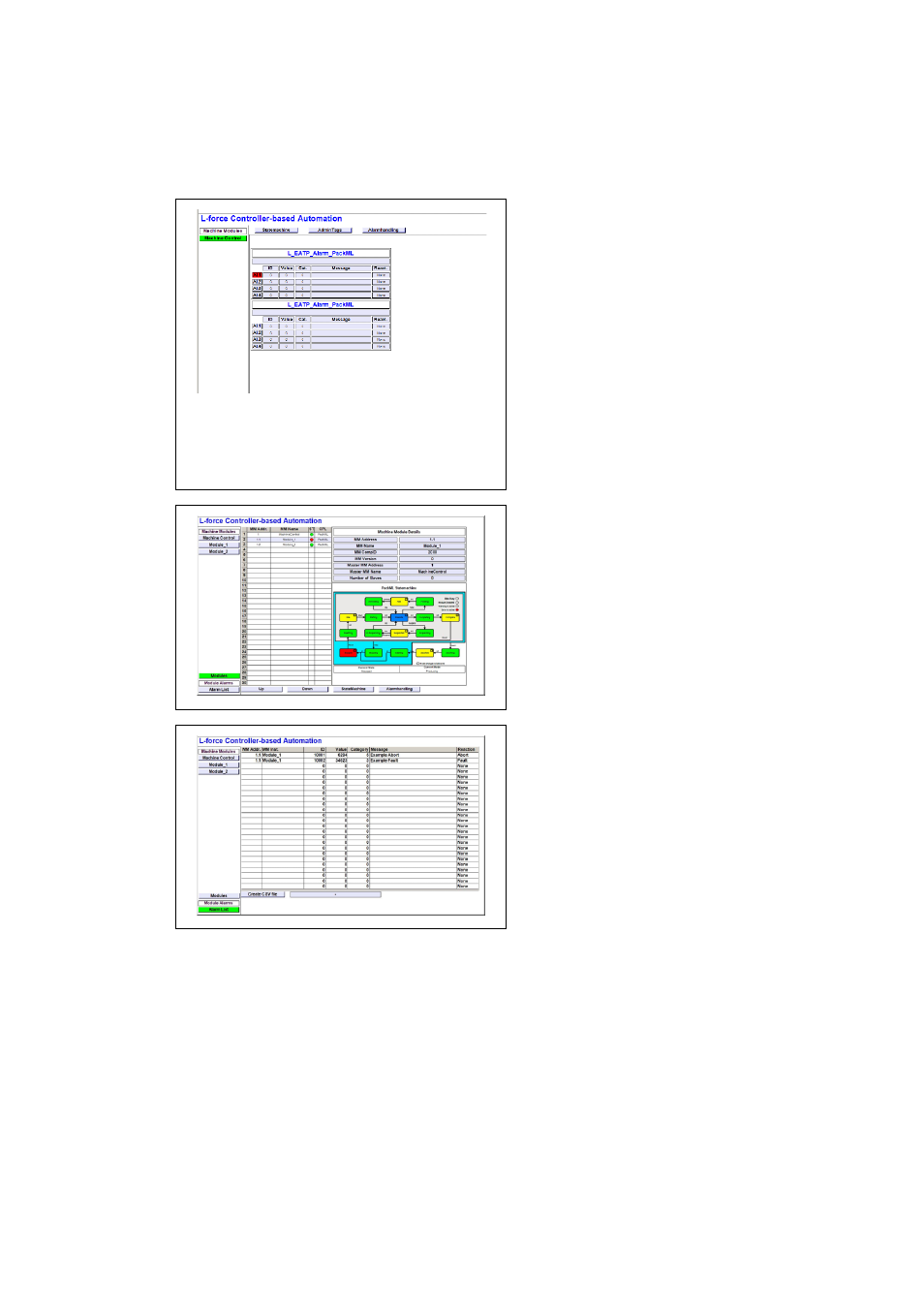

• If, for instance, Machine Control has been
selected, the fields Al[01...04] of
L_EATP_Alarm_PackML serve to trigger
alarms.
• Possible reactions (Reac.) are: Abort, Stop,
Error, SystemFault, Warning, Information.
• The machine module transmits the
reaction type to the higher-level machine
module. The desired response to the alarm
can be programmed individually, except
for the commands Abort/Stop.
• If no error response has been programmed,
the state machine remains in the current
state.
• The Modules button calls the detailed view
for the machine modules.
• Click the desired machine module to show
the respective status and further details.
• All alarm messages are visible in the global
alarm list which can be called via the Alarm
List button. The global alarm list provides
an overview of all alarms occurred.
• The Alarm Quit button has to be pressed to
reset the error. The reason for the tripping
has to be removed. Then, the
corresponding alarm can be reset.
