Opening the ApplicationTemplate PackML
Getting started - operating the ApplicationTemplate PackML
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
• Start the PLC program: Call OnlineStart menu command.
• As an alternative, you can execute the DebugStart menu command or press .

Tip!
In order to load a project automatically after a device is restarted, it can be defined as
"boot project".
Setting up the project as boot application

How to install the project as boot project:
1. Select the OnlineGenerate boot project for L-force Controller menu command.
7.5 Getting started - operating the ApplicationTemplate PackML
In the Device view, select the A20_Visualisation folder: Double-click the L_Main visualization.
Welcome page - L_Main visualisation
The user interface of the visualisation is divided into the following areas:

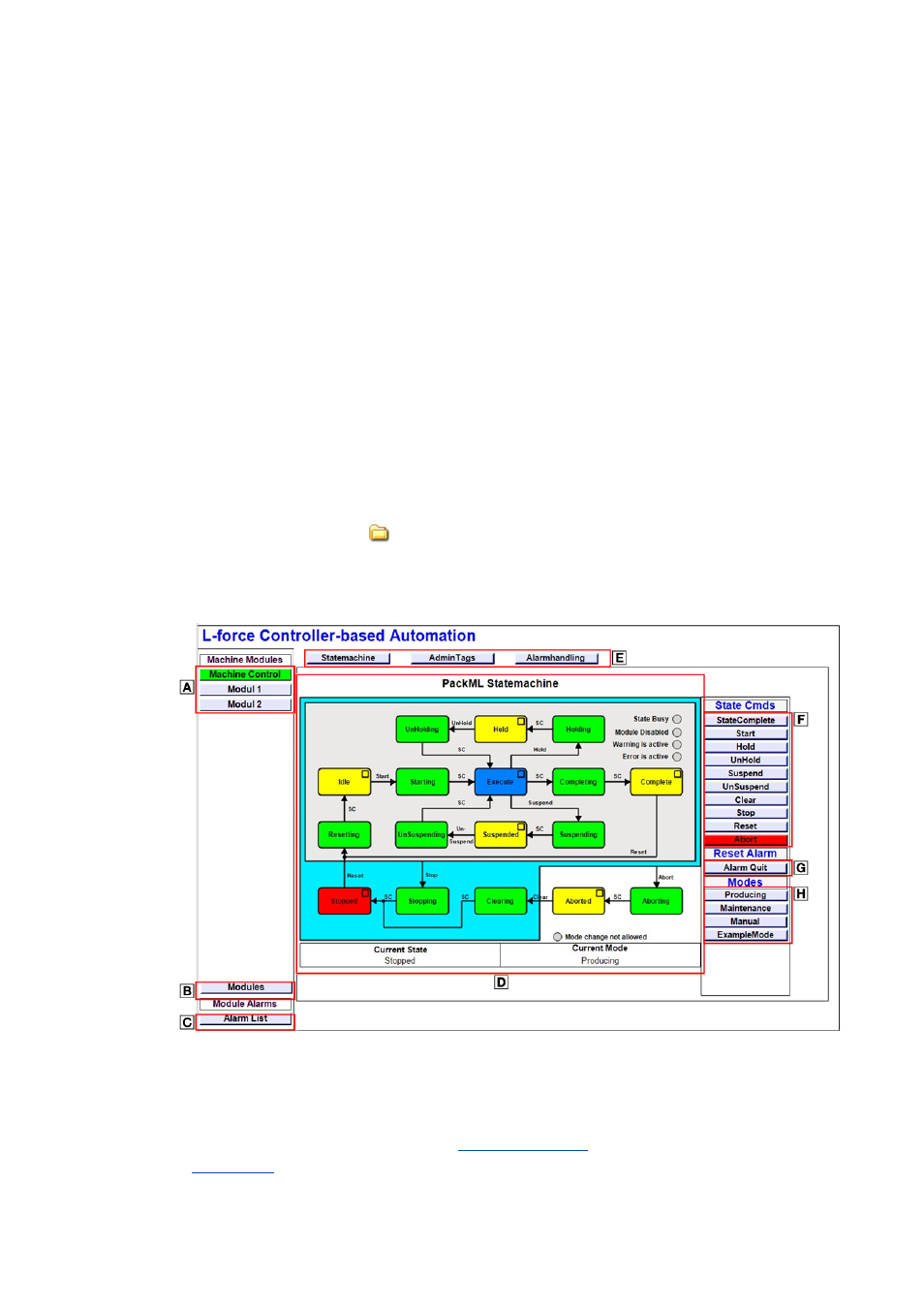

[7-1] Example: ApplicationTemplate Counter with two machine modules (modules 1, modules 2)
Select machine module Select state machine/admin tags/alarm handling
Detailed view of the machine modules  Activate states
 Select global alarm overview  Acknowledging alarms
 State machine  Activate modes
