Architecture: The ApplicationTemplate PackML in detail
Module diagnostics
82
Lenze · ApplicationTemplate PackML · 1.0 EN - 05/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

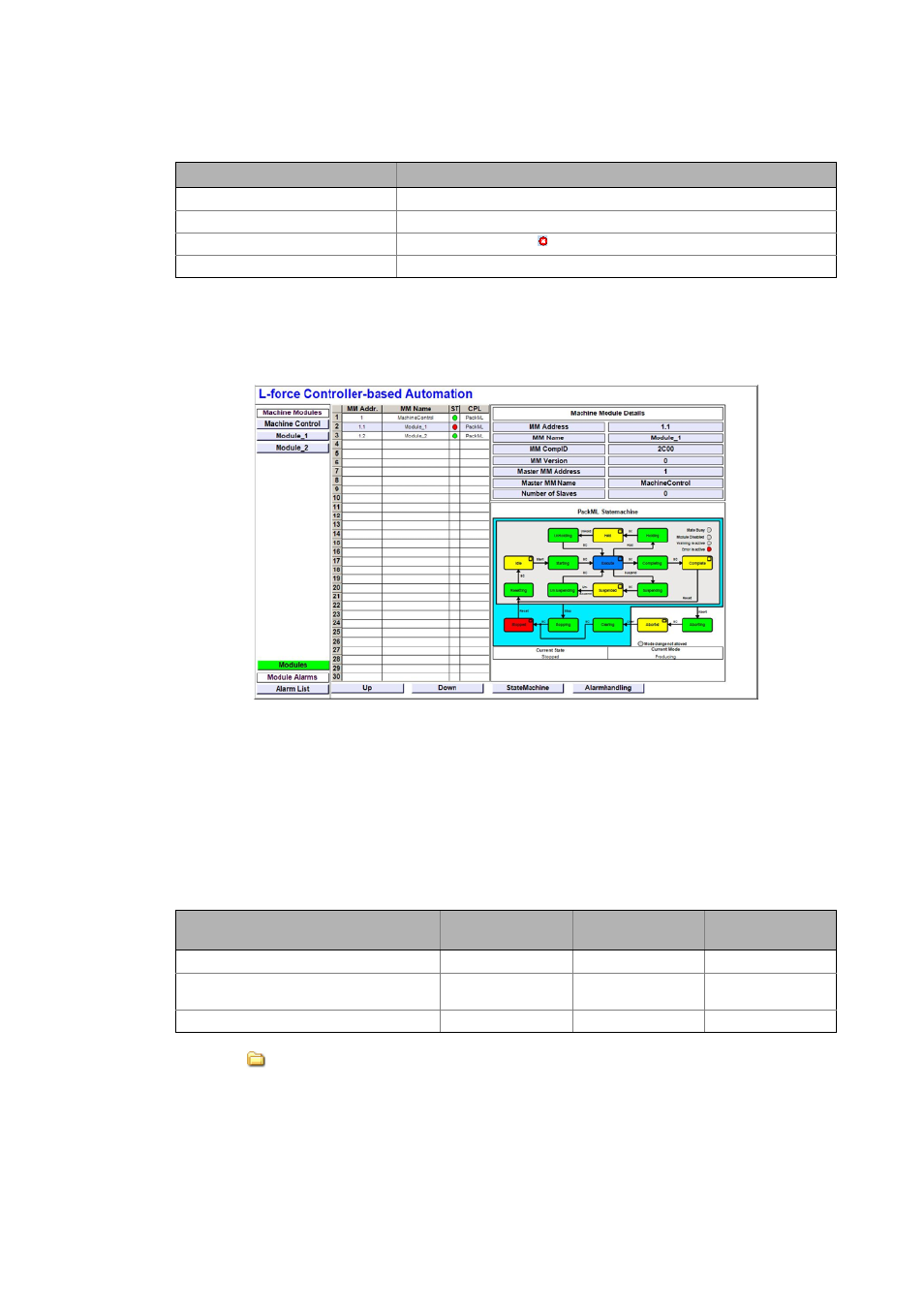

9.14 Module diagnostics
For diagnosing the modules, the ApplicationTemplate PackML provides a visualisation.
• The Modules button calls the detailed view for the machine modules.
• Click the desired machine module to show the respective status and further details.
• The visualization for module diagnostics is provided as a separate visualization
L_EATP_VisModuleList (for instance for own visualization processes).
9.15 Multitasking
The ApplicationTemplate PackML is able to multitask. The following tasks are defined:
• In the A11_ModuleAppCalls folder, the respective module applications can be assigned to
the corresponding task.
• ModuleAppCalls (MAC) are the calls of a module application (MAP) by the associated
machine modules (MM) of the corresponding task.
Element Source
M1.2 Absolute ID of the machine module
Module2 Name of the machine module
F12002 Error ID, response type: error
Demo: Drive Error of drive 2 Error text
Task level Priority Type Cycle time
(bold = default value)
Task_High High cyclic Short (1, 2, 4 ms)
Task_Mid Medium cyclic Medium (4, 6, 8, 16
ms)
Task_Free Low Unsolicited Unsolicited
