Structuring the automation system: Standard procedure
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5
Structuring the automation system: Standard procedure
This section describes the standard procedure to create an application with the »PLC Designer«
based on the ApplicationTemplate PackML.
• Use the following recommendations as a guide in order to be able to then create a PLC project
in the »PLC Designer« in a structured manner using the ApplicationTemplate PackML and to
program it effectively.
• Due to the structured layout of the ApplicationTemplate PackML (the consistency in these
structures and the compliance with these structures), applications can be created more quickly
and hence integrated in an existing PLC program more quickly.

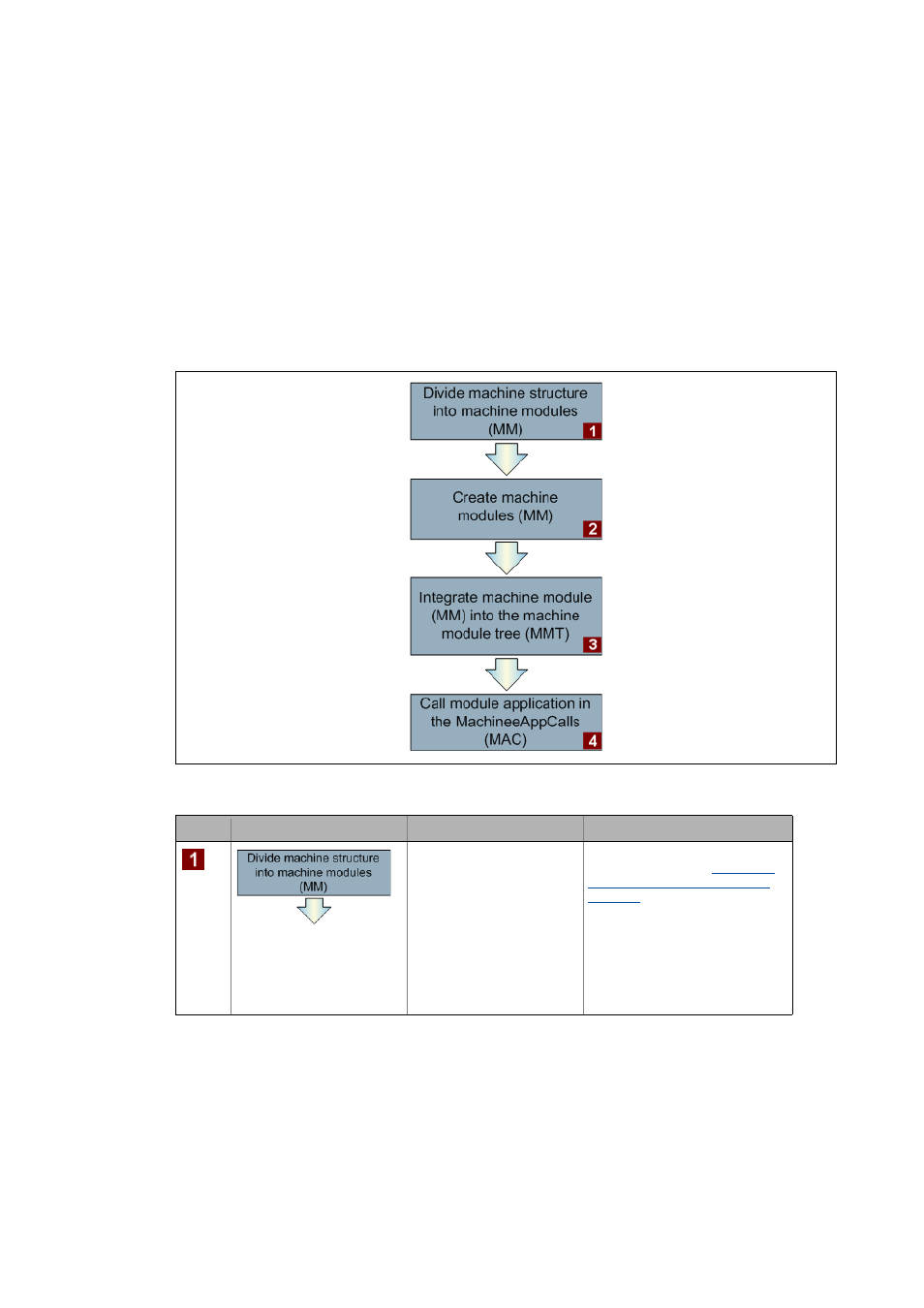

[5-1]
Recommended procedure for creating a project efficiently.
Step
Activity
What has to be done?
Description
Gain an overview of the
overall functionality of the
machine structure.
• Divide the overall
functionality of the
machine structure into
subfunctions.
• Transfer the identified
subfunctions of the
machine structure to
machine modules.
In this project phase, programming
is not yet required!
