What is the ApplicationTemplate PackML?
Elements of the ApplicationTemplate PackML
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
 An overview of the methods ( 91)
4.3.7 State machine
Each machine module has an own state machine. The state machine of a mode can be created
individually: By deactivating single states in the entire state machine.
More information:
 State machine in detail ( 65)
4.3.7.1 State transitions - overview

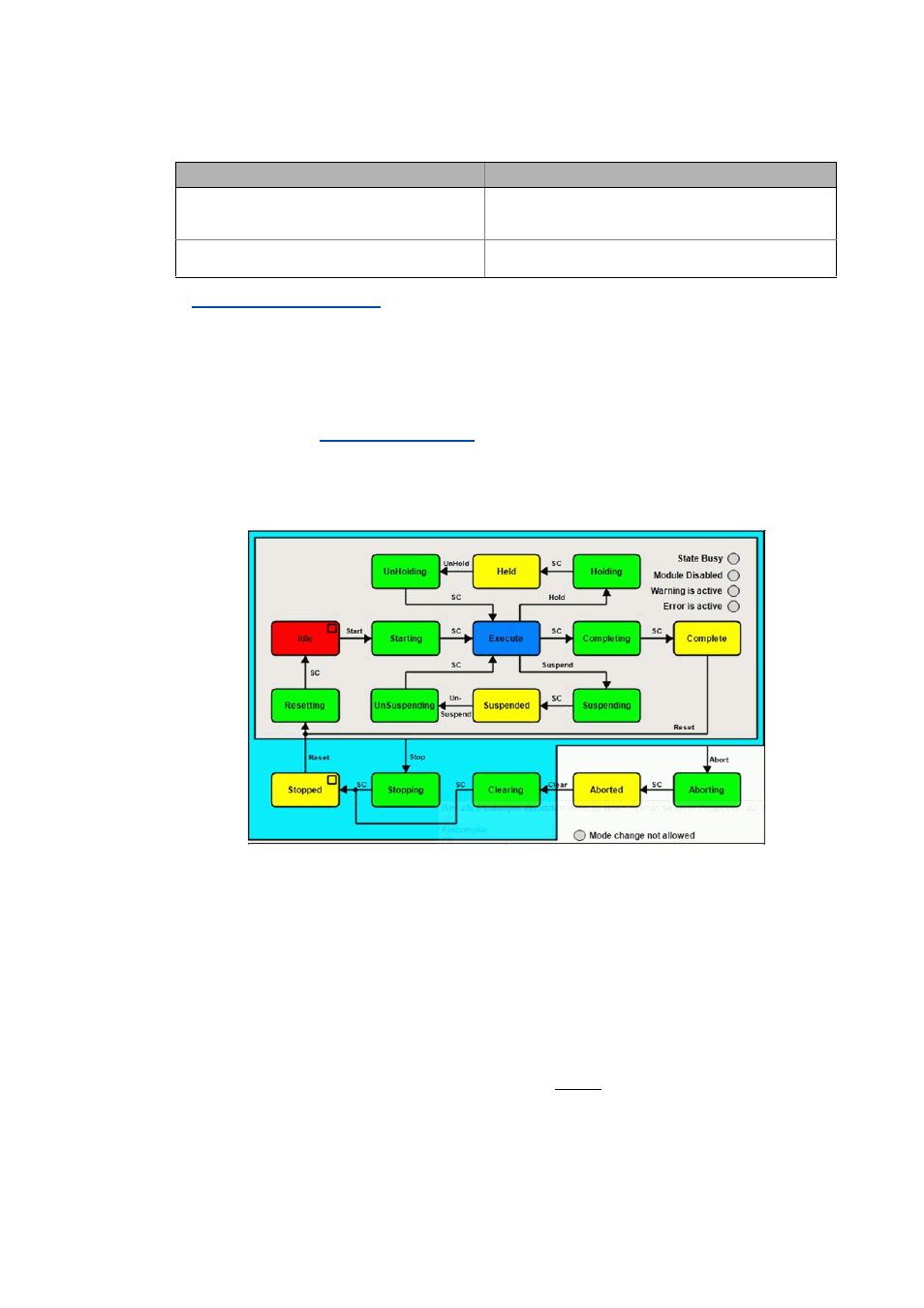

The following status diagram illustrates the possible state transitions of the state machine:
[4-8] State machine in the ApplicationTemplate PackML
The current state of the state machine is highlighted in red.
• Active state in the illustration: "Idle"
• "Idle" corresponds to the "Waiting" state and is thus highlighted in yellow.
The colouring in the state machine distinguishes the following states:
• Yellow: Waiting state
• Green: Acting state
• Blue: Dual state (can be "waiting" or "acting")
The "waiting" states "Stopped", "Aborted" and "Execute" cannot be deactivated.
Deactivating a state simultaneously switches off the respective (outbound) transitions. If it is the
"Wait" state, it also switches off its "Active" state.
Method Description
Command_UnitMode (eUnitMode:=
L_UserModes_PackML.ExampleMode,
xUnitModeRequest:=TRUE)
Changes over a mode if this is permissible.
Status_ModeChangeAllowed
(L_UserModes_PackML.ExampleMode)
Checks if a changeover of the mode is permissible in the
current state.
