Working with the ApplicationTemplate PackML
Integrating machine modules in the MMT
42
Lenze · ApplicationTemplate PackML · 1.0 EN - 05/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.3 Integrating machine modules in the MMT
A machine module (created on the basis of the EmptyModule_PackML machine module template)
has to be integrated into the MachineModuleTree (MMT) in order to integrate it functionally into
the ApplicationTemplate PackML.

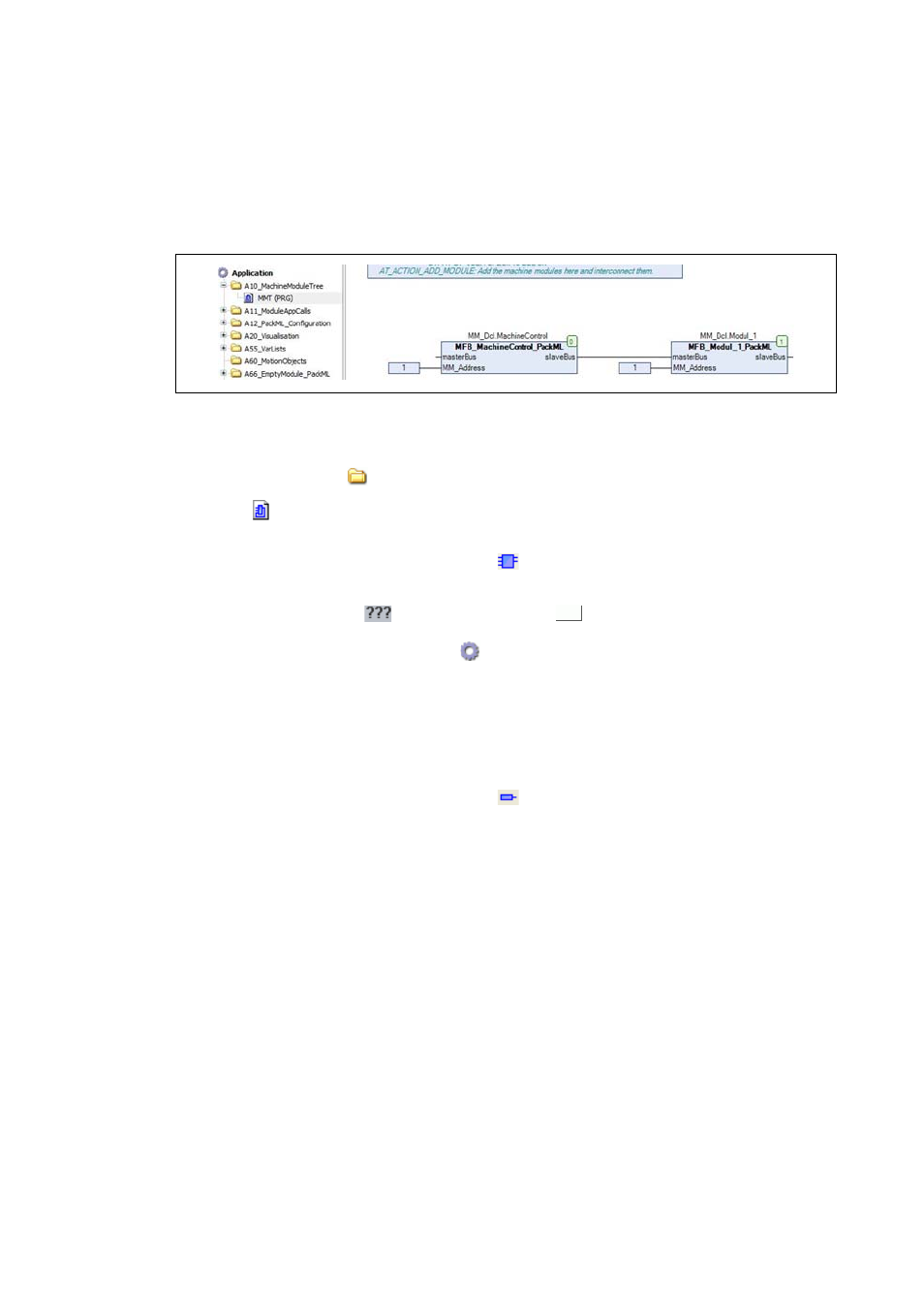

[8-1] Example: MachineModuleTree in the ApplicationTemplate PackML

How to proceed:
1. Double-click the A10_MachineModuleTree folder in the device view.
• Double-click MMT (PRG).
Note: The programming language of MMT (PRG) is CFC (Continuous Function Chart).
• In the Tools dialog window, click the Block button.
• Create the new FB via drag-and-drop.
• Double-click the area of the FB, click the button.
Use the Input assistance from the Application element...
• ...to assign the MFB_CrossCutter FB.
• ...to assign the CrossCutter instance.
Note: Go to the Input assistant and select the  Insert with namespace prefix when
assigning the instance name.
2. Specify the relative address for the machine module.
• In the Tools dialog window, click the Input button.
• Add the new input at MM_Address
• Assign the relative address (example: "3").
