What is the ApplicationTemplate PackML?
Elements of the ApplicationTemplate PackML
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
4.3 Elements of the ApplicationTemplate PackML
4.3.1 Machine Module Tree - MMT
In order to map the desired automation system in the »PLC Designer« using the
ApplicationTemplate PackML, the structure of the whole machine application must be created in
the »PLC Designer«.
• In a first step, the electronic machine structure (total functionality of the machine) has to be
divided into machine modules (subfunctions of the machine).
• The A10_MachineModuleTree machine module tree (MMT) shows the machine modules in
the form of a tree structure from left to right.
• The top module is the machine control module. The other functions of the machine are
subordinated to the machine control module.

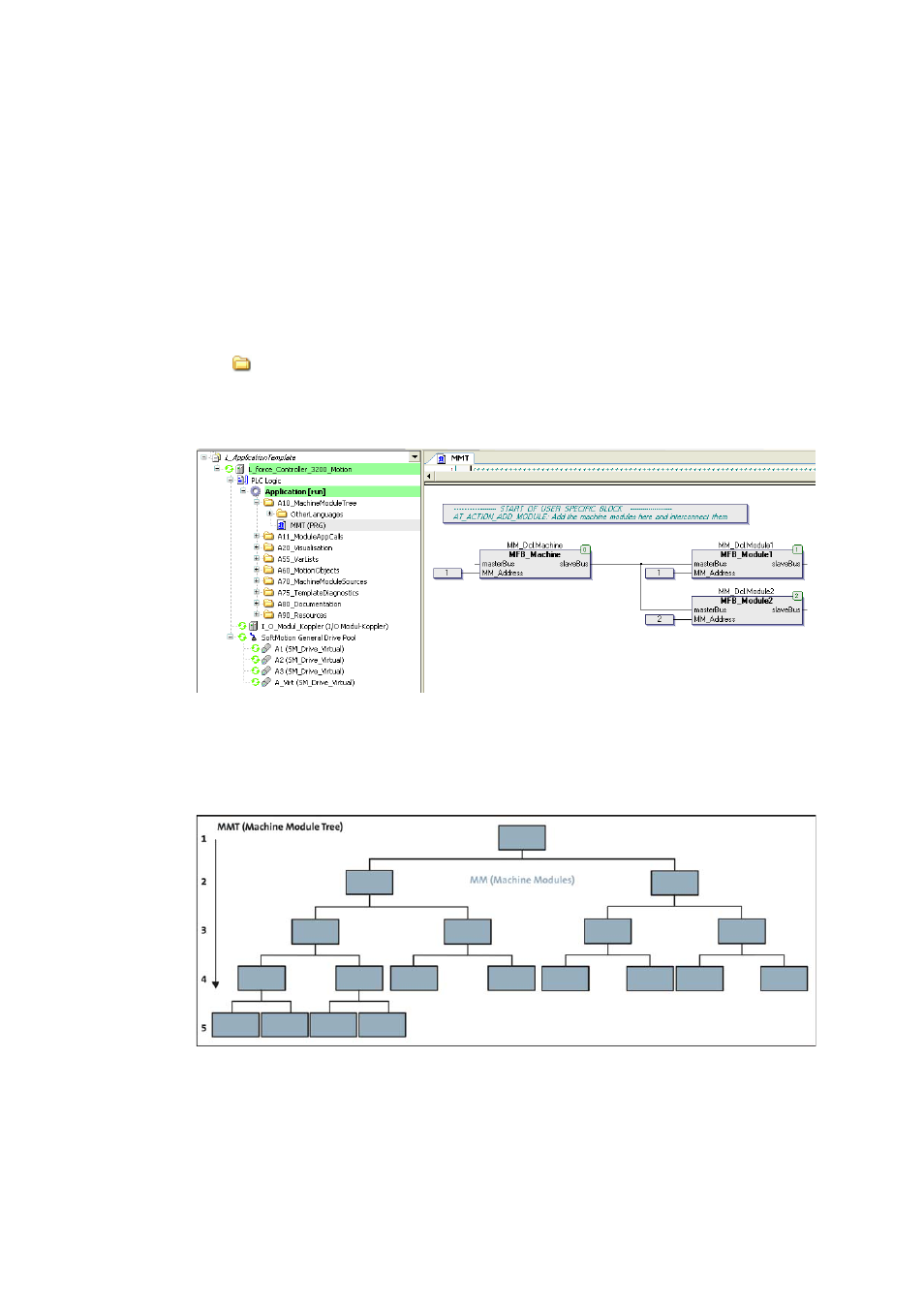

[4-1] Illustration example: Machine structure tree (MMT) in the ApplicationTemplate, folder A10_MachineModuleTree
The ApplicationTemplate PackML...
• ...supports two to five hierarchy levels of machine modules.
• ...supports up to 30 machine modules.
[4-2] MMT (Machine Module Tree) with up to five possible hierarchy levels of machine modules
