Communication manual 8400 motec CANopen
Commissioning
Possible settings via DIP switch
32
L
EDS84DMOTCAN EN 3.0 - 11/2011
6.3 Possible settings via DIP switch

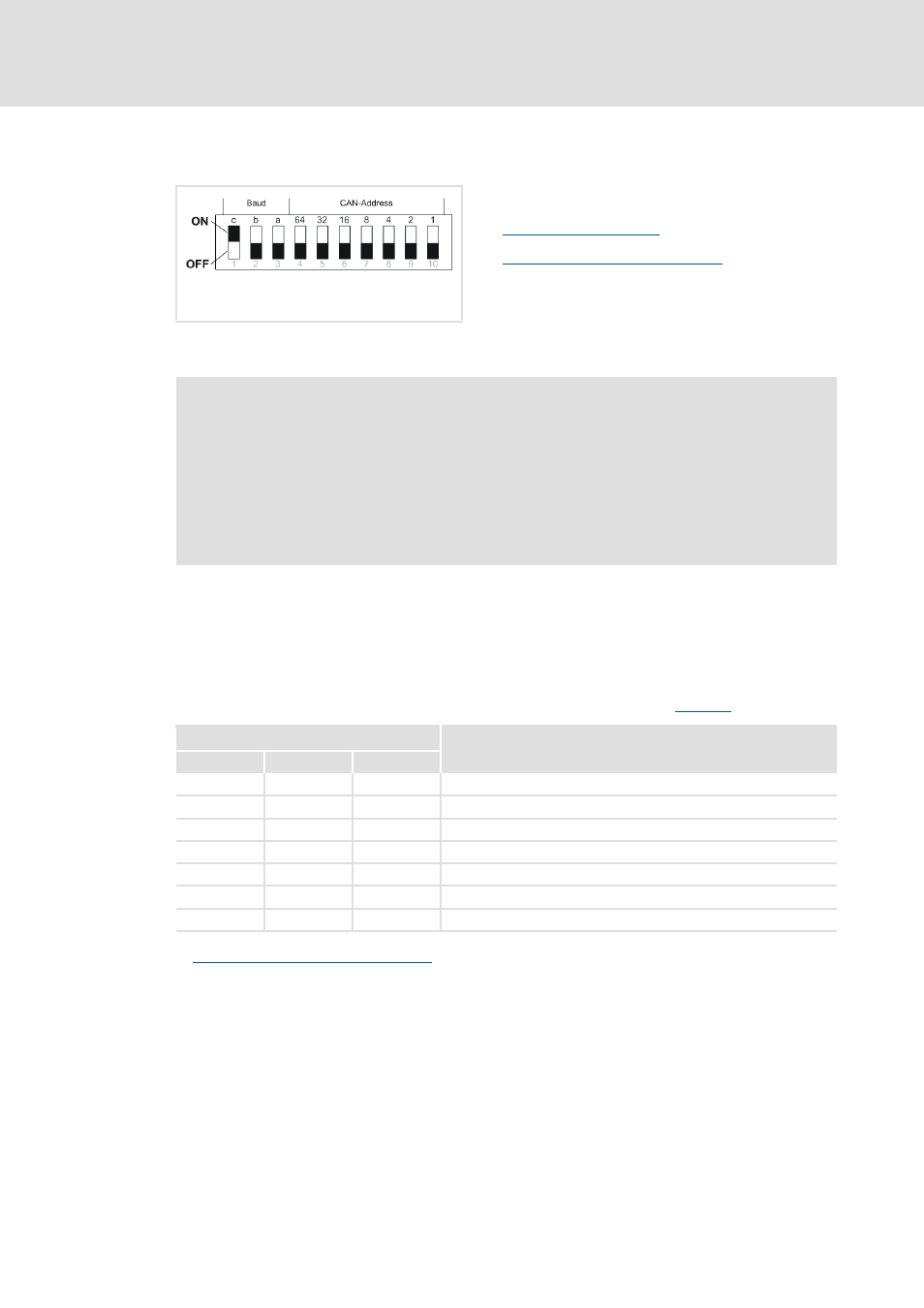

[6-1] DIP switch
6.3.1 Setting the baud rate
The baud rate ...
 must be the same for all networked CANopen nodes;
 can be set via the DIP switches a ... c or via the »Engineer« (code
C00351 ).
Settings in the Lenze »Engineer«
( 34)
The DIP switches serve to ...
 Setting the baud rate
( 32)
(switches: a ... c)
 Setting the CAN node address
( 33)
(switches: 1 ... 64)
Lenze setting: All switches OFF

Note!
• The DIP switches can only be accessed when the drive unit is detached from
the communication unit. Loosen the four fixing screws at the drive unit.
Observe the notes in the mounting instructions.
• Switch off the voltage supply of the controller and the external supply of the
communication unit before starting with the dismounting of the drive unit.
• The DIP switches are only read in when the device is switched on.
DIP switch position Baud rate
c b a
ON OFF ON 20 kbps
OFF ON ON 50 kbps
OFF ON OFF 125 kbps
OFF OFF ON 250 kbps
OFF OFF OFF 500 kbps
ON ON OFF 800 kbps
ON OFF OFF 1000 kbps
