Electrical installation − HighLine/StateLine version
Devices in a power range of 0.75 ... 7.5 kW (3/PE AC 400 V)
Terminal assignment of the power connections
6
l
91 EDS84DPS424 EN 5.0

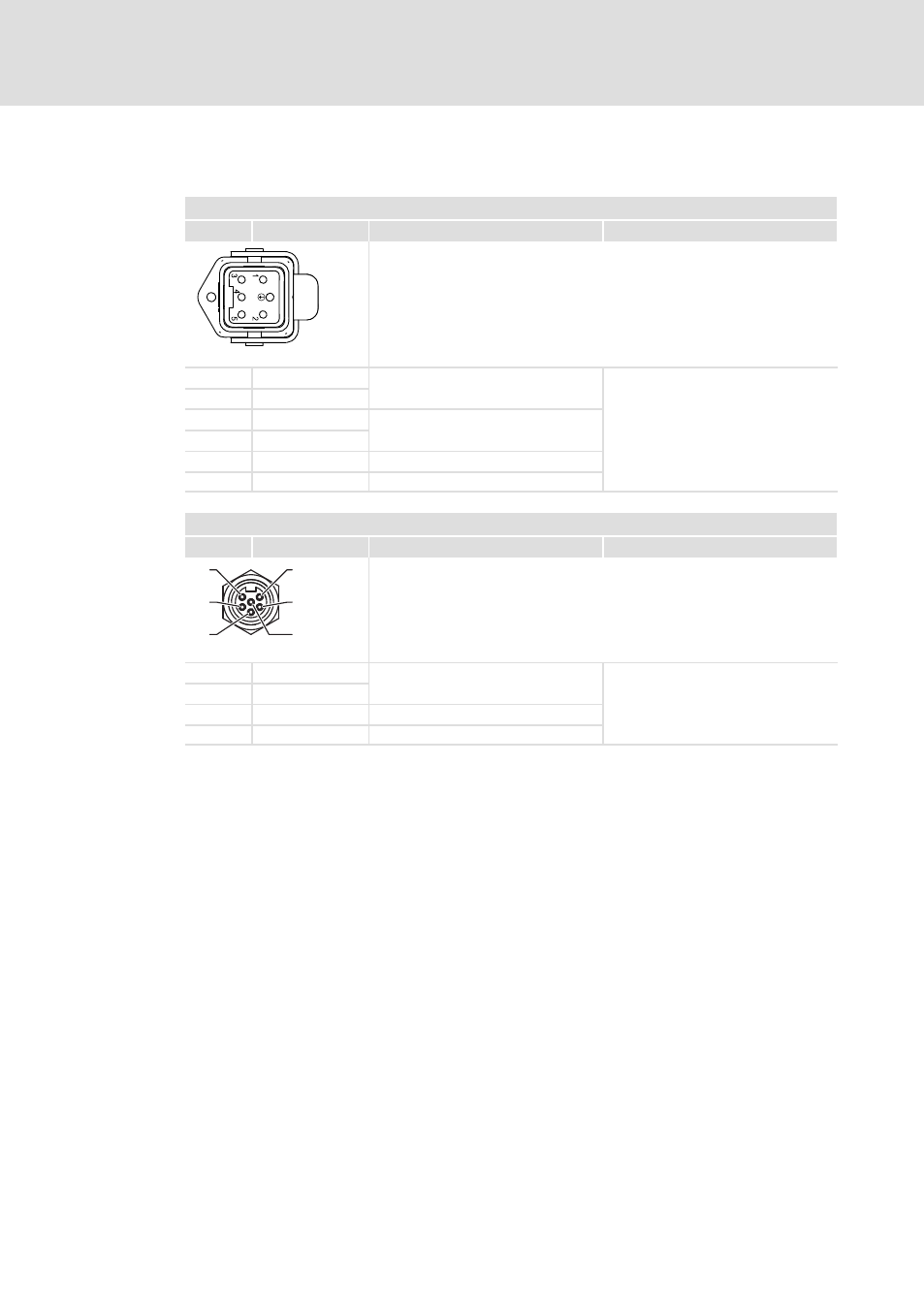

Connection of external brake resistor
X20 − connection of external brake resistor (optional)
Pin Connection Description Data
Type Q5, sockets
E84DWX0202
1 RB2 Brake resistor max. 2.5 mm 2
2 RB1
3 T1 only E84DHxxx7524:
brake resistor temperature monitoring
5 T2
4 n. c. not assigned
+ PE PE conductor
X20 − connection of external brake resistor (optional, − device version E84DxH...)
Pin Connection Description Data
5 1
2
6 3
4
Type Molex, Brad Mini−Change, sockets
E84DWTXXMO 3
1 RB1 Brake resistor max. 16 AWG
5 RB2
3 PE + PE conductor
2, 4, 6 n. c. not assigned
