Braking operation
Braking operation with external brake resistor
Wiring of brake resistor
9
l
155 EDS84DPS424 EN 5.0

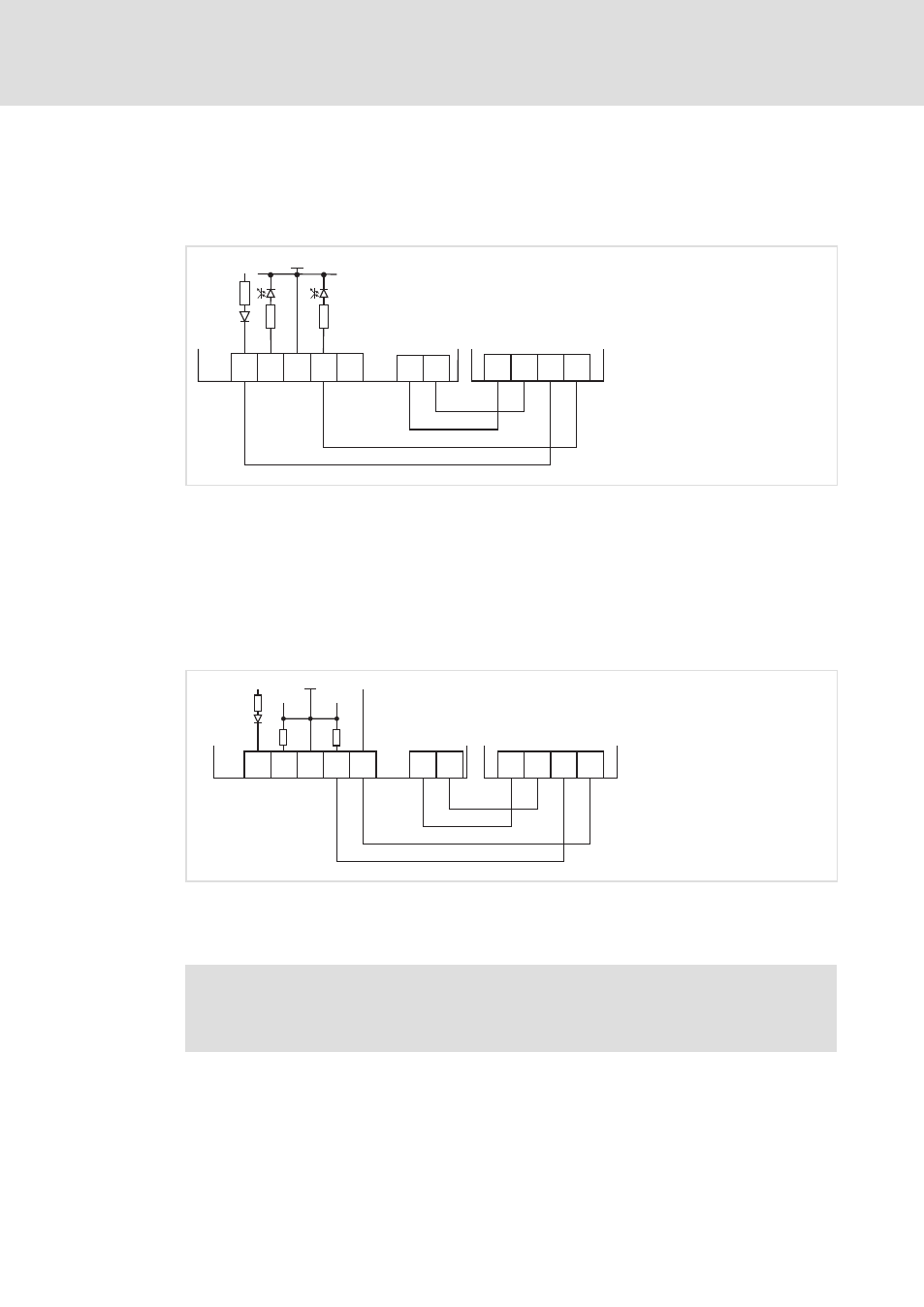

Evaluation of the thermal contact via digital input
As an alternative to the integration of the thermal contact via a mains contactor, the brake
resistor can also be monitored via a digital input. Please use a Lenze system cable. The
response to the input signal must be parameterised in the FB Editor using the »Engineer«.
DI1 X41
GND-IO
GIO 24O
3
.3k
3
.3k
DI2 RB2 RB2 RB1 RB1 T1 T2
ERB...
X20
E84D...
8400DDI032
E84D... 8400 protec
X41 Digital input
X20 Brake resistor connection
ERB... Brake resistor
Evaluation of the thermal contact via analog input
As an alternative to the integration of the thermal contact via a mains contactor, the brake
resistor can also be monitored via an analog input. Please use a Lenze system cable. The
response to the input signal must be parameterised in the FB Editor using the »Engineer«.
GND-A
X50 24O
E84D...
GA RB2 RB2 AI RB1 RB1 AU T1 AR T2
+10 V /
10 mA
ERB...
X20
8400DAI031
E84D... 8400 protec
X50 Analog input
X20 Brake resistor connection
ERB... Brake resistor
,
Further information on brake resistor monitoring is provided in:
ƒ the 8400 protec software manual, chapter "Motor control"
è
"Monitorings"
