Electrical installation − HighLine/StateLine version

Installation according to EMC (installation of a CE−typical drive system)

Wiring

EDS84DPS424 EN 5.0

6.4.4

Wiring

Notes on the laying of cables:

In the case of greater cable lengths, a greater cable distance between the cables is
required.

In the case of parallel routing (cable trays) of cables with different types of signals,
the degree of interference can be minimised by using a metallic cable separator or
isolated cable ducts.

Cover

Barrier without
opening

Power cables

Signal cables

EMVallg001

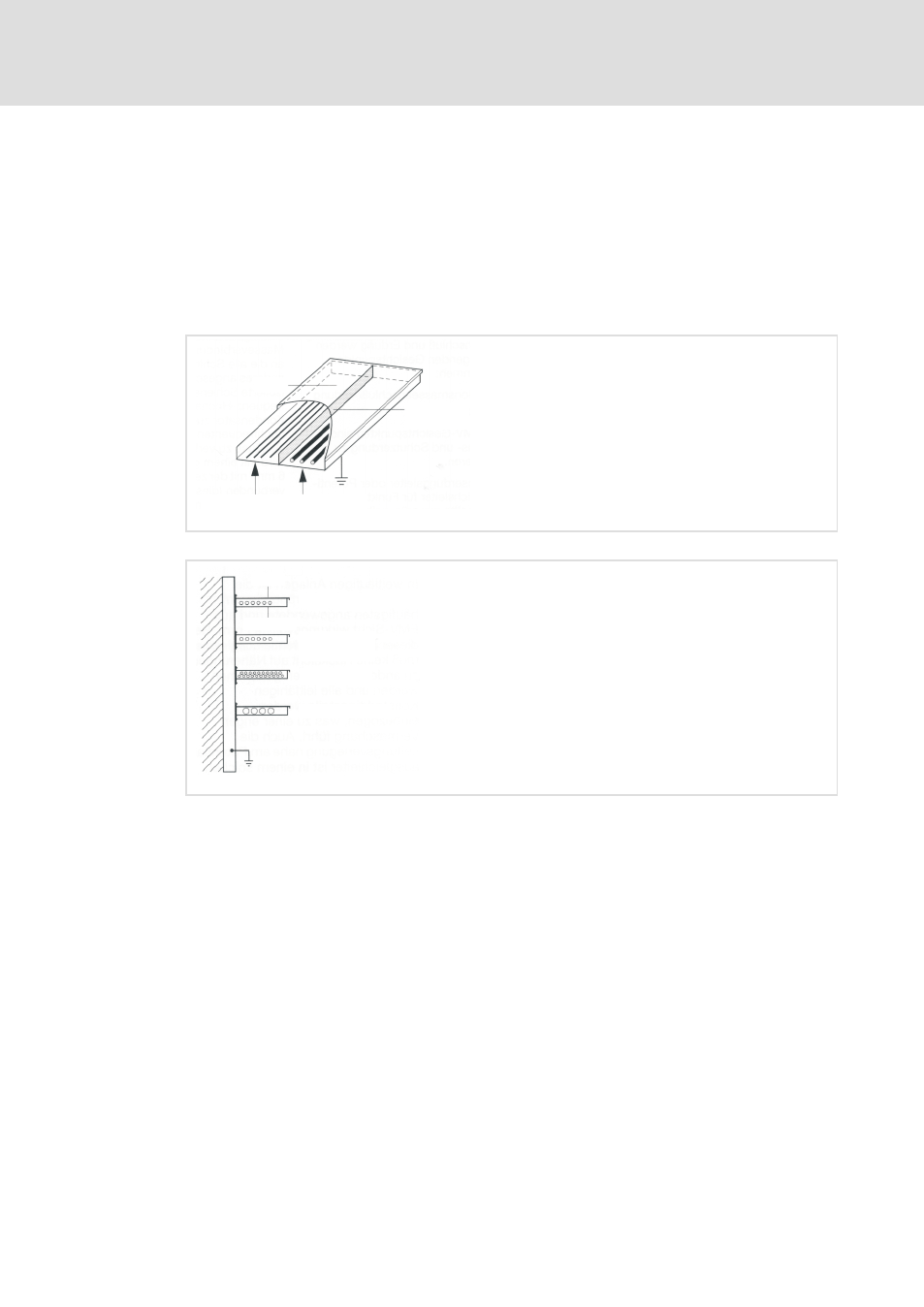

Fig. 6−3

Cable routing in the cable duct with barrier

Cover

Communication cables

Cable duct

Measuring cables
Analog cables

Control cables

Power cables

EMVallg002

Fig. 6−4

Cable routing in separated cable ducts
