Product description
Overview of standard devices
3
l
25 EDS84DPS424 EN 5.0

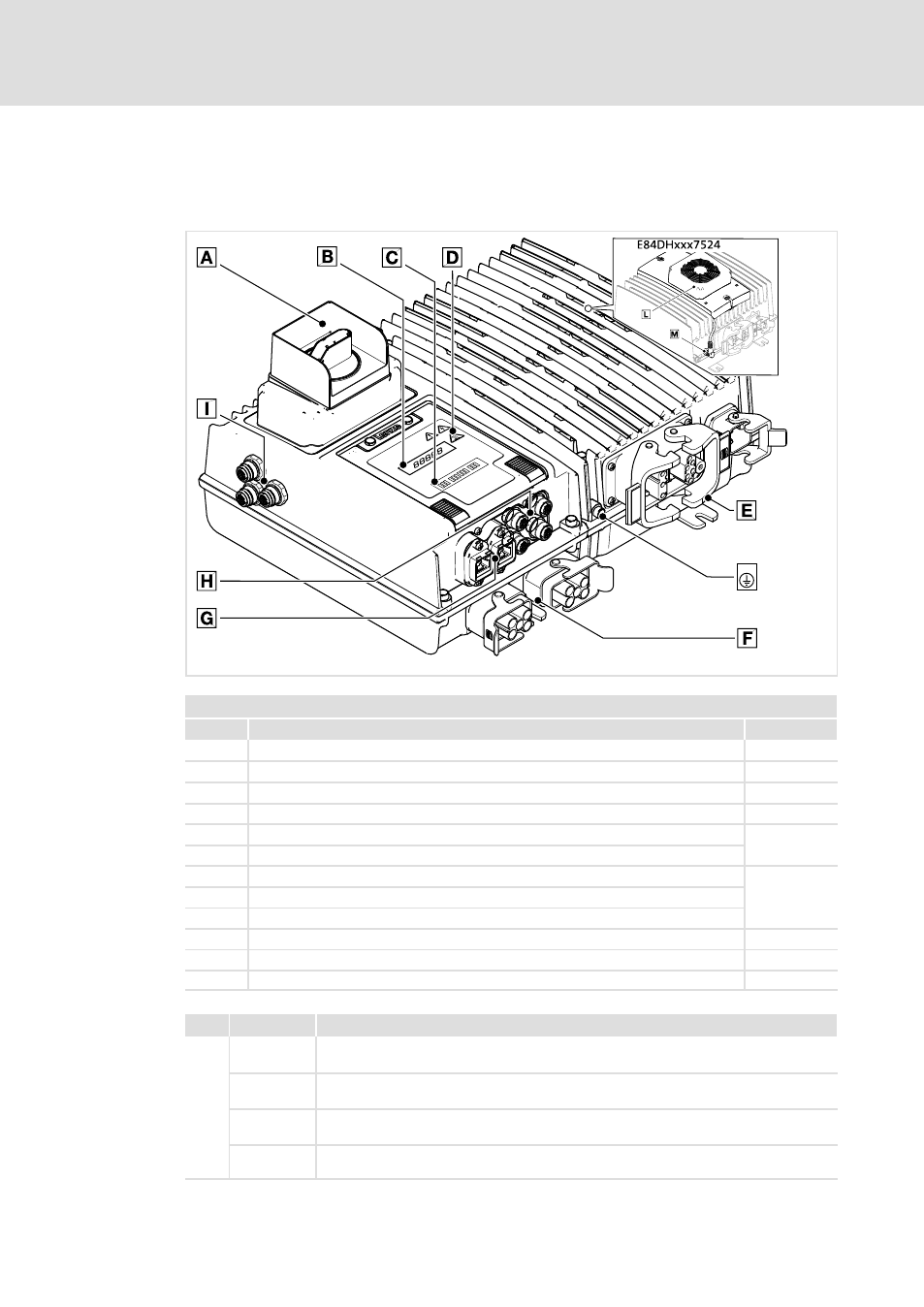

3.4 Overview of standard devices
StateLine, HighLine
E84DWGA010
Control elements and overview of connections
Pos. Description/function Page(s)
0 Control element, various versions, optional 22
1 Display for values and messages, 5 characters 165
2 LED status display 159
3 Warning symbols See below
4 Motor and brake resistor connections
From 87
5 Connections for mains and 24 V supply voltage
6 Fieldbus connections
From 64
7 Input and output connections
8 Connections for safety system and/or CAN on board
+ PE connections, M6 thread −
; only E84DHxxx7524: External fan
< Operating voltage for the external fan −
Pos. Icon Description
3
{
Long discharge time: All power terminals remain live for up to 3 minutes after mains
disconnection!
}
High discharge current: Carry out fixed installation and PE connection according to
EN 61800−5−1!
'
Electrostatic sensitive devices: Before working on the device, the personnel must be free
of electrostatic charge!
|
Hot surface: Risk of burns! Hot surfaces should not be touched without wearing
protective gloves.
