Electrical installation − HighLine/StateLine version
Devices in a power range of 0.75 ... 7.5 kW (3/PE AC 400 V)
Example circuits
6
l
86 EDS84DPS424 EN 5.0
6.5 Devices in a power range of 0.75 ... 7.5 kW (3/PE AC 400 V)

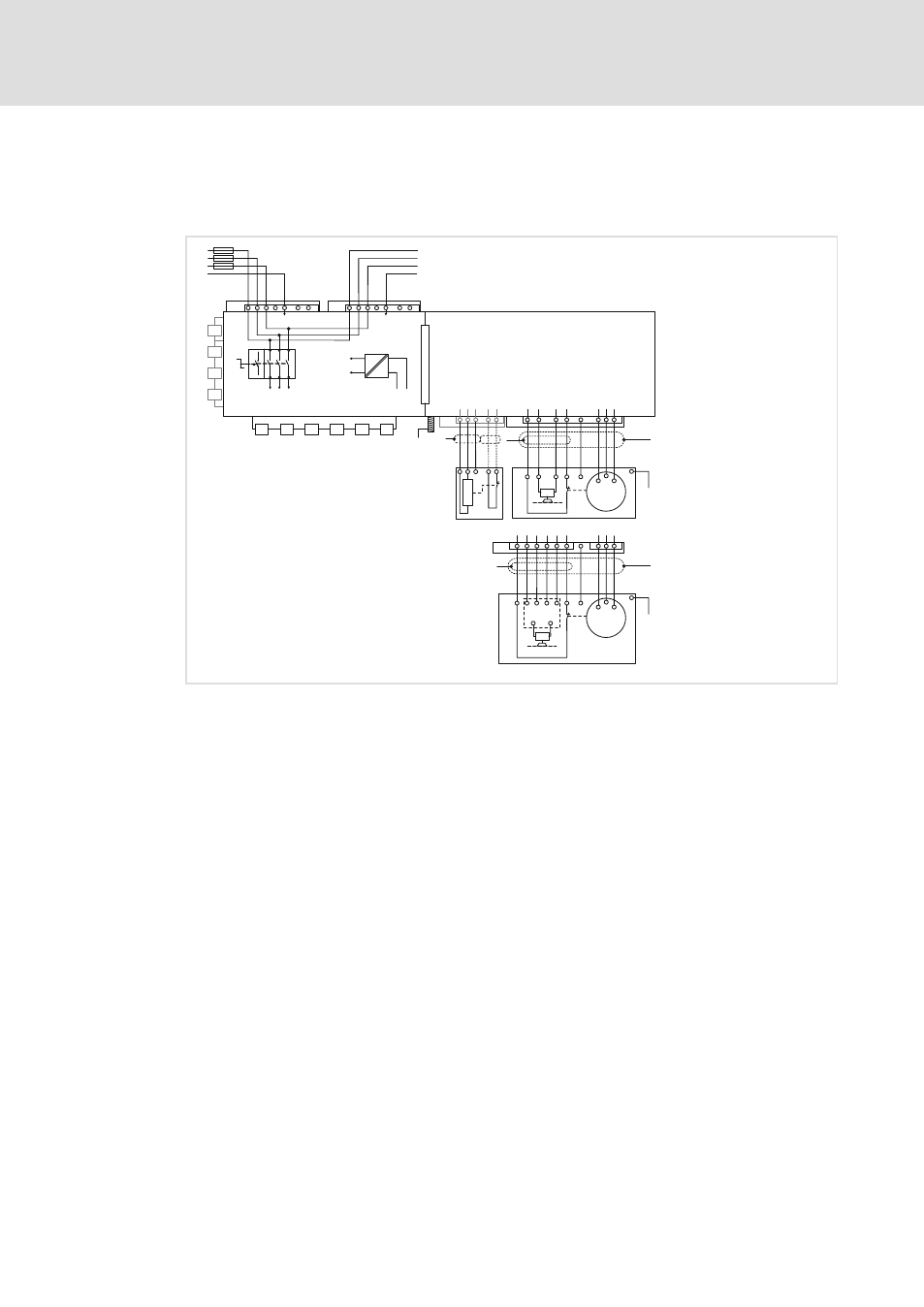

6.5.1 Example circuits
5 8 4 6 1 7 3 X21 +
M
3~
U
V
W
+
+
BRK1
T1 T2
T h
+ -
" "
0
" "
6 4 1 2 3 X21
+ c 1 2 3 a 5
M
3~
U
V
W
+
+
T1 T2
T
h
BRK1
+ -
~ ~ S1 S2
GL1
1
1 3 2 5 X20 +
X50 X43 X42 X41 X32 X31
X62
X63
X64
X61
E84D...
L1
L2
L3
PE
3/PE AC 380 ... 500 V
L1
L2
L3
PE
+
1 11 2 3 4 12 + X10
T h
BRW1
1 2 +
1 11 2 3 4 12 + X11
S1 +
-
+24 V
GND
U24
=
"
E84DWSP055
E84D... 8400 protec controller
S1 Service switch control element (optional)
U24 Supply voltage 24 V internal
BRK1 Spring−applied brake
GL1 Spring−applied brake control
BRW1 External brake resistor at optional terminal X20
− for E84DHxxx7524: Direct connection of the thermal contact
T
h
PTC thermistor (PTC) or thermal contact (NC contact)
M Motor
0 Motor connection system: Plug type Q8/0
1 Motor connection system: Plug type Modular
X31 ... X50 Communication, inputs and outputs
X61 ... X64 Optional: Drive−based safety
