Electrical installation − EMS version
Control terminals
Digital inputs and outputs
7
l
131 EDS84DPS424 EN 5.0
Digital outputs
)
Note!
If inductive loads are being connected, it is essential to use a spark suppressor
at the digital output.
X42 − digital outputs DO1, DO2 (configured digital input!)
Pin Signal Description Data
Type M12, 5−pole sockets
84DPSO05_5
1 24O 24 V supply of the external sensors
2 DO2 digital output 2 (configured) HIGH +24 V or V
DC
at X10
3 GIO Reference potential LOW 0 ... +5 V
4 DO1 digital output 1 (configured) max. 200 mA per output
5 n. c. Not assigned
X46 − digital outputs DO3, DO4 (configured digital inputs)
Pin Signal Description Data
84DPSO05_5
M12 type, 5−pole sockets, A−coded
1 24O 24 V supply of the external sensors
2 DO4 Digital output 4 HIGH +24 V or V
DC
at X10
3 GIO Reference potential LOW 0 ... +5 V
4 DO3 Digital output 3 Max. 200 mA per output
5 n. c. Not assigned
Example circuit
0 1
DO1 X42
GND-IO
GIO 24O DO2
8400DIO016

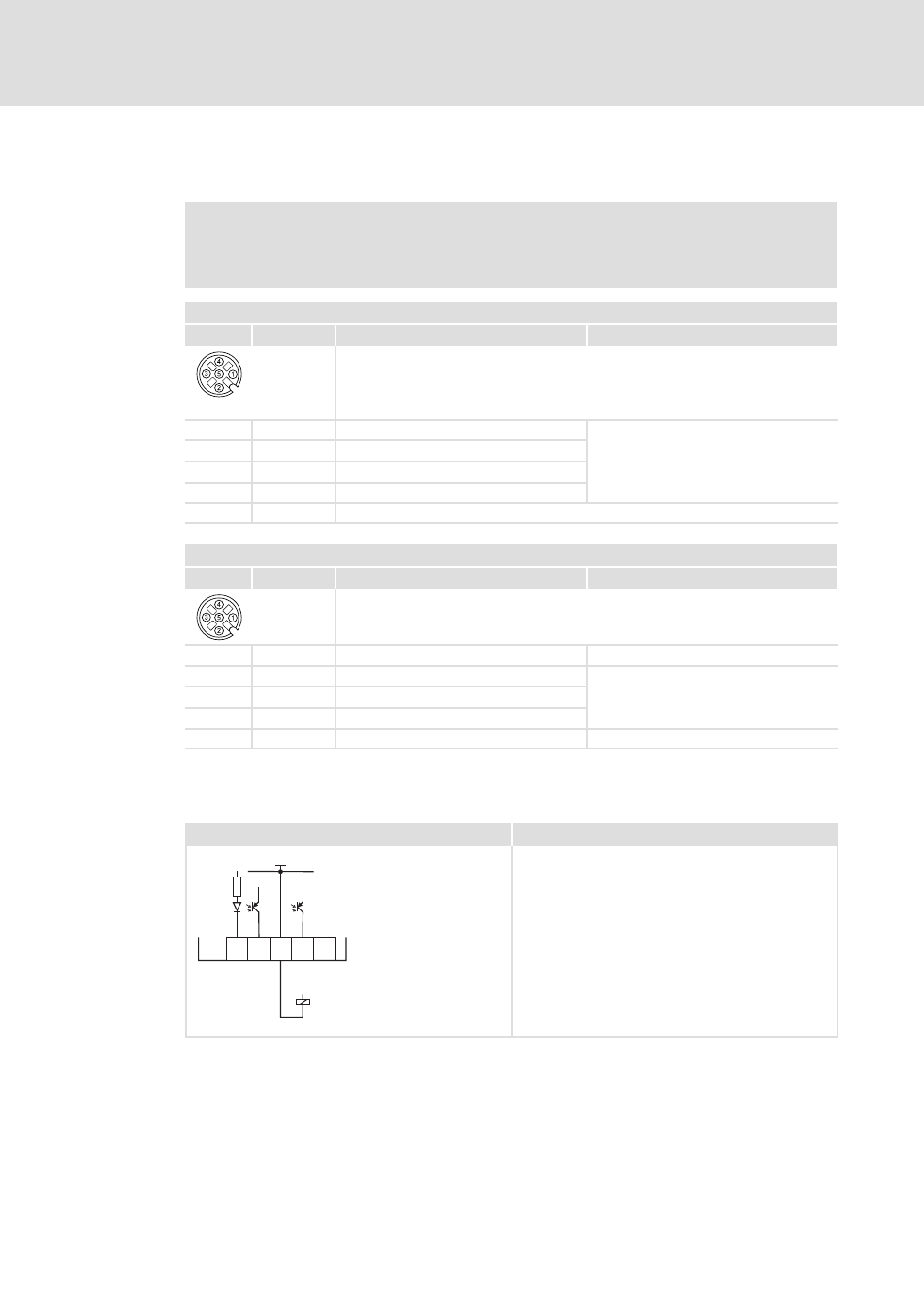

Fig. 7−6 Wiring examples of the digital inputs and outputs
0
Digital control (relay, valve, ...) with internal 24 V supply
1 −
X42 Plug for the digital outputs (configured)
GIO Ground reference potential for the digital inputs and outputs (GND−IO)
