Commissioning
Quick commissioning
Terminal control
8
l
147 EDS84DPS424 EN 5.0
MCTRL: Act. speed val.
C00051
0 rpm

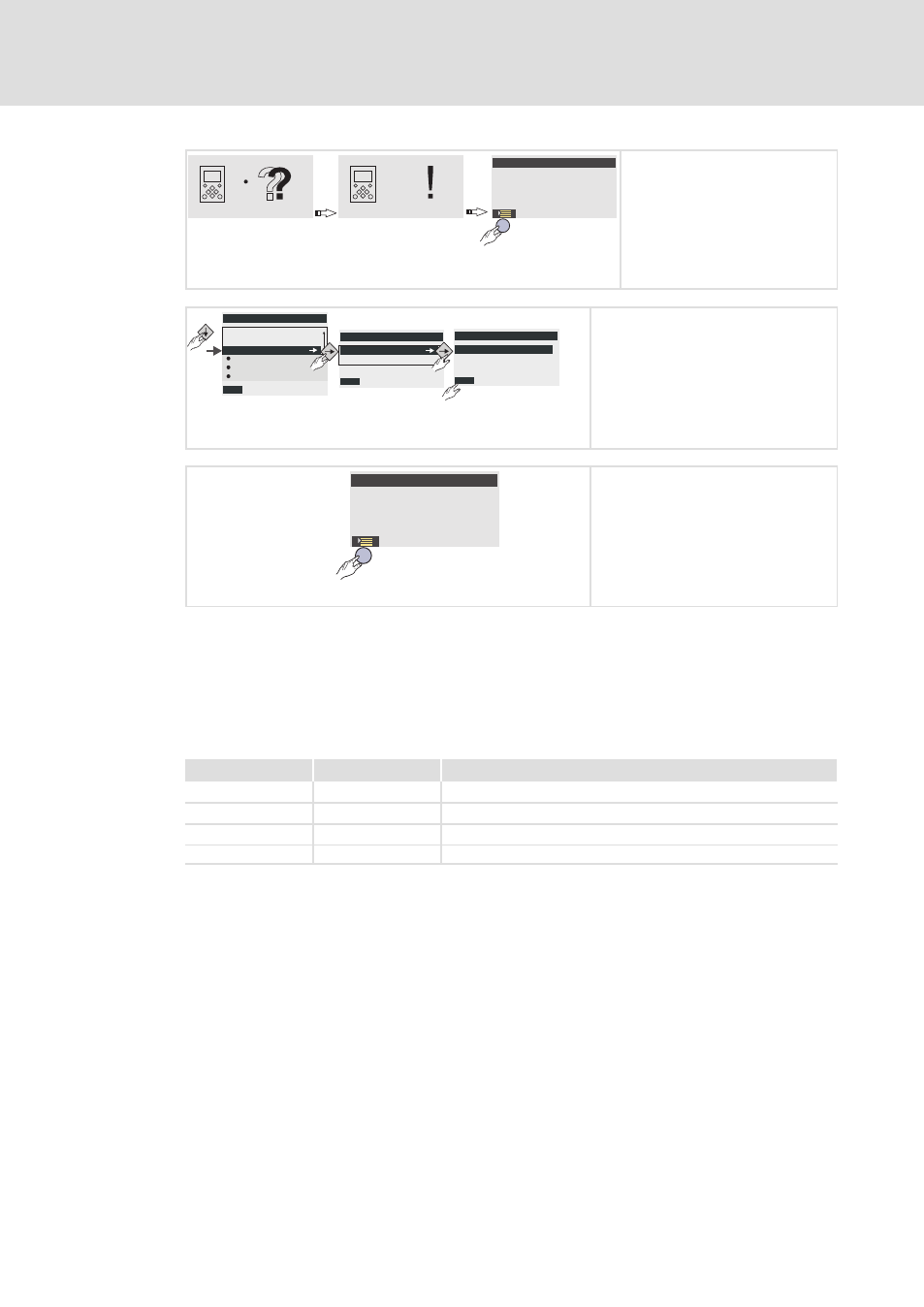

After attaching the keypad or
switching on the controller with
keypad attached, the connection
between keypad and controller is
established.
The connection has been
established when the code C00051
appears in the display.
l Then press the left function key.
SAVE
Par1 8400 StateLineC
User - Menu
Code list
Quick commissioning
SAVE
Par1 Quick commissioning
Terminals
Keypad
EDIT
Load Lenze setting
C00002/1
l Starting from "User menu" scroll
down with button to "Quick
commissioning" menu
l Click right button.
l Select "Keypad" menu.
l Click right button.
l Code 00002/1:
– Parameterise with left "Edit"
function key
MCTRL: Act. speed val.
C00051
0 rpm
l When the Lenze setting is loaded, the
display goes off for a short time.
l When the display goes on again, the
main menu appears.
– The main menu settings can be
defined by the user using codes
C00465 ... C00469.
l Press the left function key to go to the
user menu.
4. Enable controller:
– 8400 protec controllers are automatically enabled after mains connection. The
motor rotates according to the default value at the analog input or the defined
fixed setpoints.
5. Vary the motor speed with the potentiometer or by defining different fixed
setpoints:
DI2 DI1 Motor speed
0 0 Setpoint by potentiometer
0 1 40 % of C00011 (reference speed)
1 0 60 % of C00011 (reference speed)
1 1 80 % of C00011 (reference speed)
ƒ Please observe
– the actual speed value: C00051
– the front LEDs (
¶ 159)
6. Save the settings with
Πin the keypad.
