Lenze · Controller-based Automation · System Manual · DMS 1.4 EN · 04/2014 · TD17

System components

4.4

Runtime software of the Lenze Controllers

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

4.4.3.1

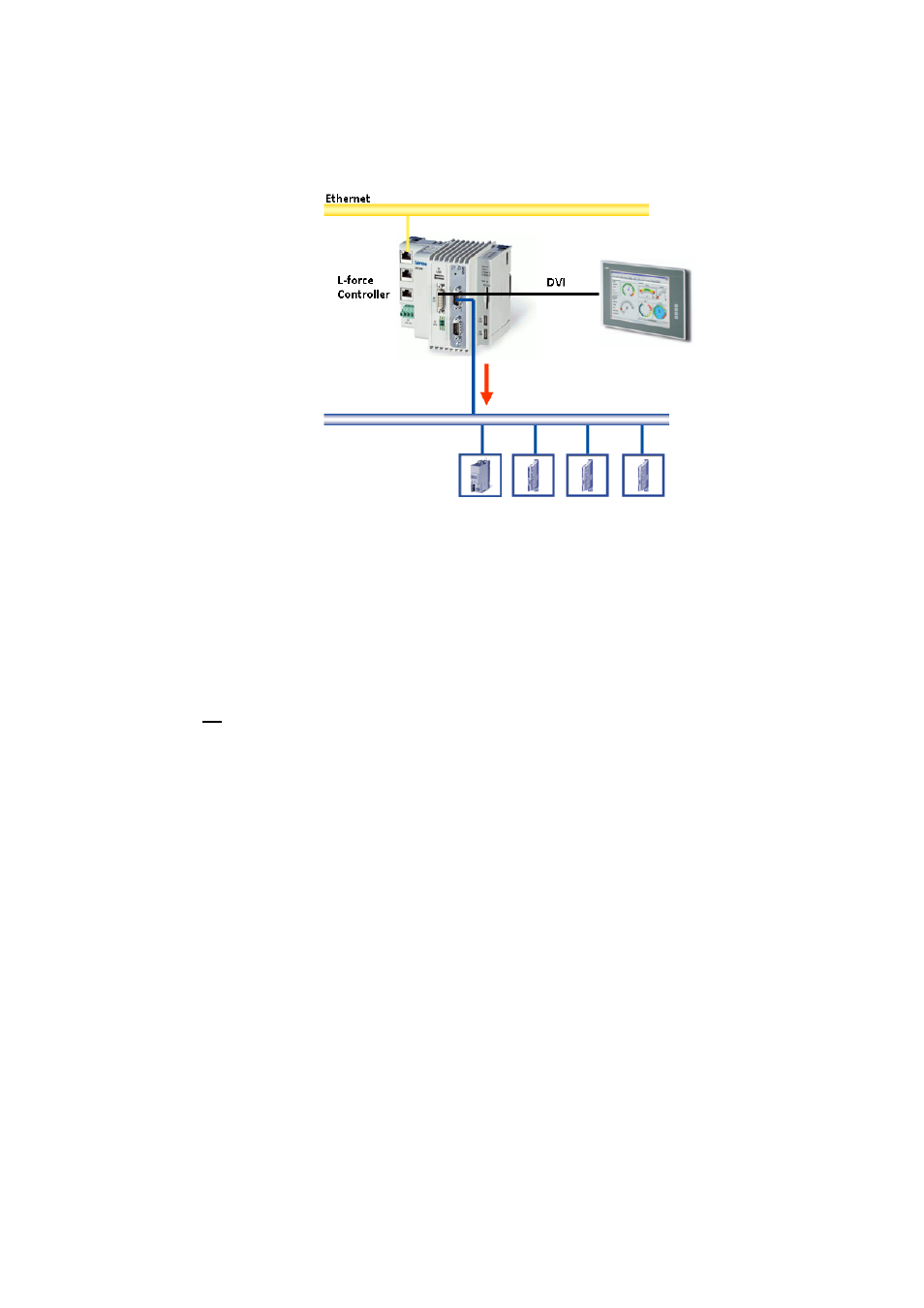

Sample topology 1: External monitor panel/display for cabinet controllers

[4-1]

Sample topology: Controller 3231 C with an external monitor panel (connected to the DVI interface)

This topology with regard to its performance corresponds to the implemented solution (control/

visualisation on the same controller). The external monitor panel/display shows the visualisation.

Advantages

• Small amount of cabling
• Protected operating conditions
• Extensible topology
• No impact on the real-time capability of the fieldbus by the visualisation
