4 System components
4.1 Engineering tools
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Depending on which device you want to use, the suitable Engineering tool has to be started. The
overview shows which Engineering tool is required in order to be able to execute a specific
application with the respective Lenze device series:

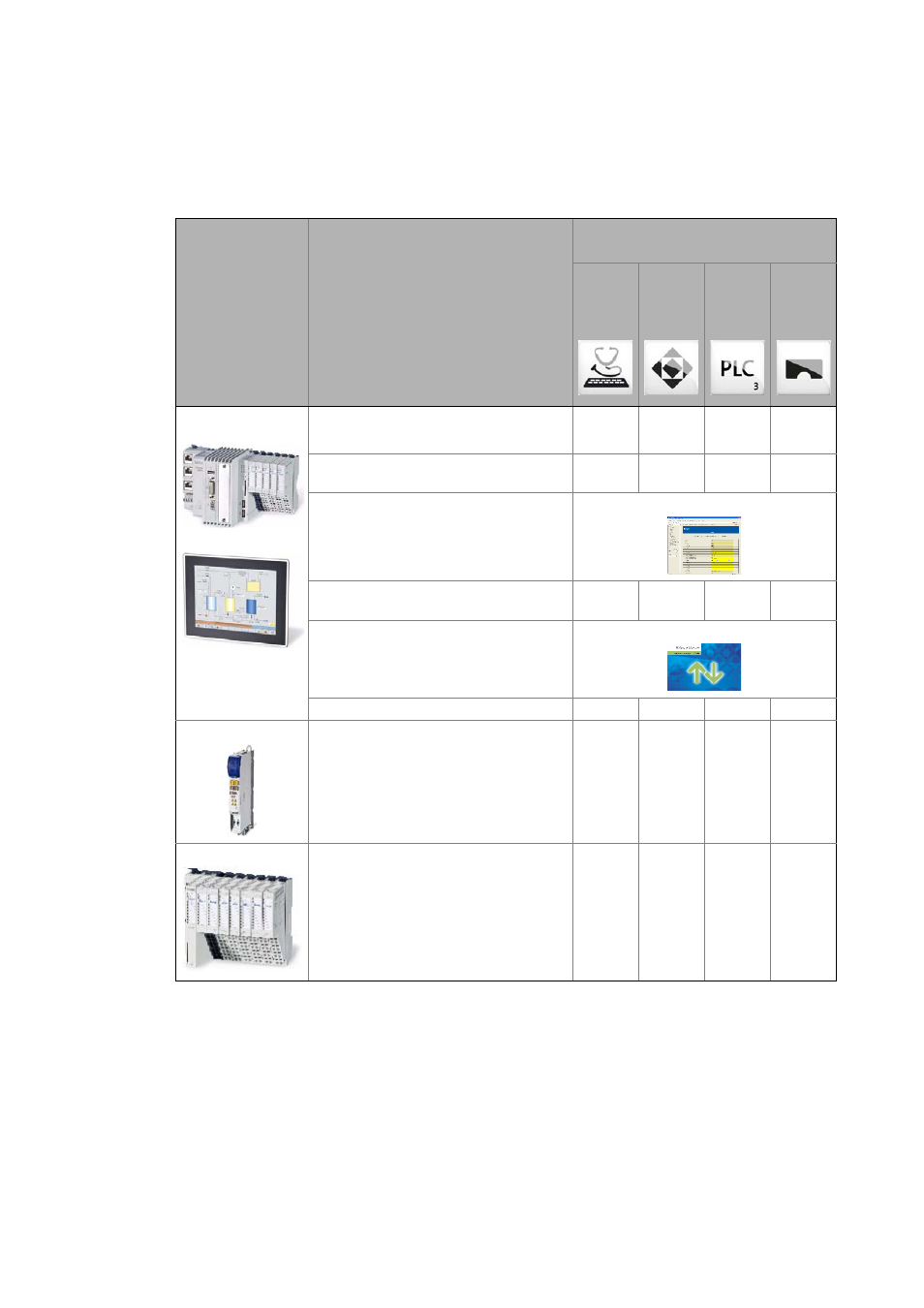

Which device? What would you like to do? Which Engineering tool do you need?
Button/icon in the EASY Navigator
»EASY
Starter«
»Enginee
r«
»PLC
Designer
«
(V3.x)
»VisiWin
NET«
Lenze device series
(illustration examples)
Controller
Cabinet Controller 3200 C
Panel Controller p500
Without illustration:
• Cabinet Controller c300
• Panel Controller p300
• Set the parameters/configure
• Online diagnostics

From V1.2
SP1
- - -
• Programming
• Configure the bus system
- -  -
• Configuration
• Online diagnostics
»WebConfig« via web browser
• Programming
• Configure the bus system
- -  -
• Back up data
• Restore data after device replacement
»Backup & Restore«
• Visualisation - - - 
i700 servo inverter • Set the parameters/configure
• Online diagnostics via the gateway
function of the Controller
(connection via EtherCAT interface)

From V1.2
SP1
- 
From V3.3
-
I/O system 1000 • Set the parameters/configure
• Online diagnostics via the gateway
function of the Controller
   -
