4.2.6 Power and Communication Cable Setup
1 Connect the crossover cable (PN 5183-4649) between the computer and
3000 Micro GC.
NOTE: If a LAN connection through a hub is required, consult an IT specialist
to configure the setup.
2 Connect the power cable to the AC/DC converter supplied in the Shipping Kit.
3 If desired, connect the remote start cable (PN G2801-60618) to
3000 Micro GC. See
section 5.2, The Remote Connector, on page 5-30 for
remote start cable pinout details.
4 If a customized checkout is necessary or no checkout is required, reconfigure
carrier gas type as needed by following the instructions in
section 6.4, Change
Carrier Gas Configuration, on page 6-9 .

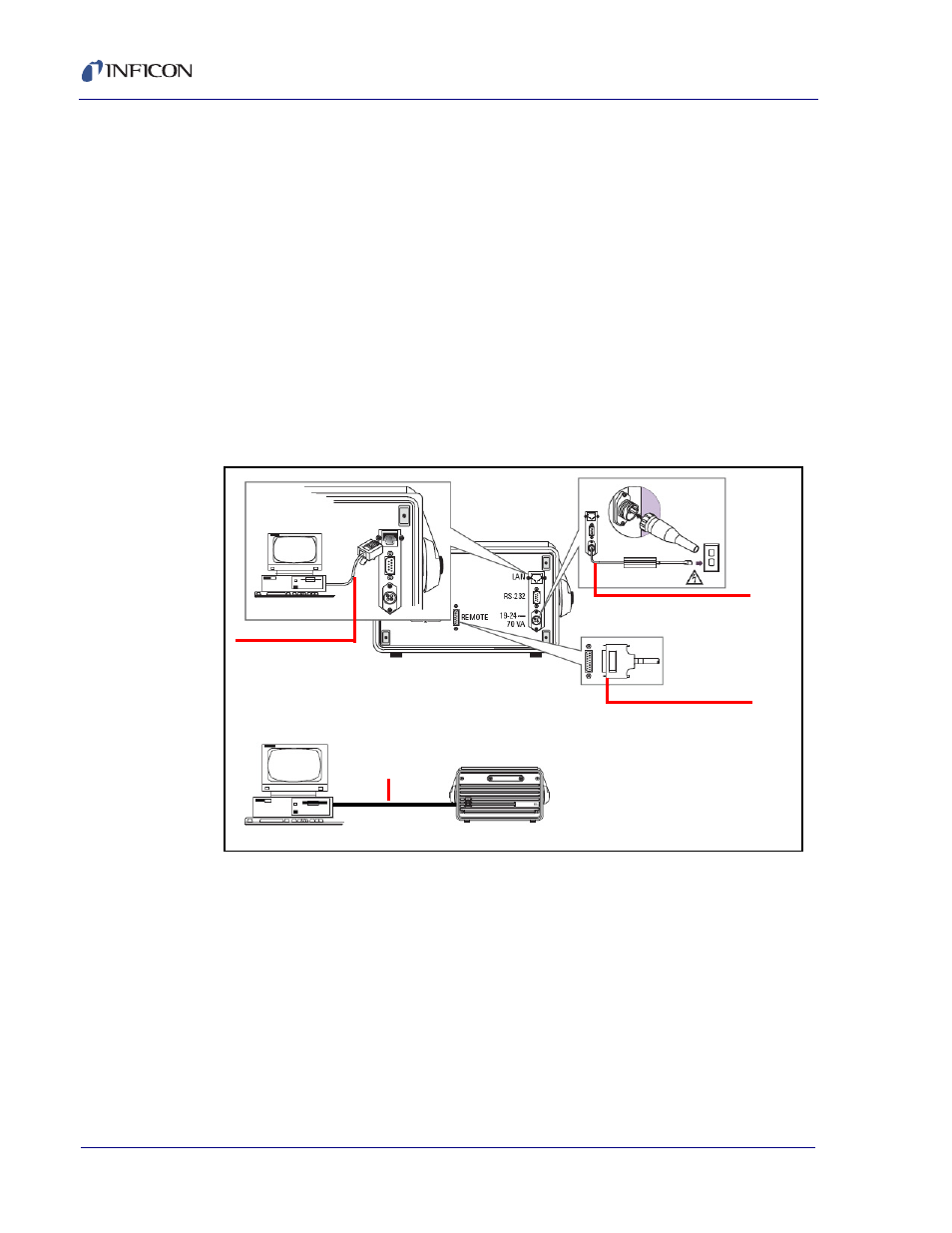

Figure 4-9 Power and communication connections
Crossover cable
(PN 5183-4649)
Standalone Installation
Power cord and converter
Remote start/stop
cable
(PN G2801-60618)
Crossover cable
(PN 5183-4649)
