3.2.3 Portable Chassis
Portable 3000 Micro GC is a completely self-contained, miniaturized gas
chromatograph specifically designed for fast, accurate analysis in the field. Each
instrument contains one or two GC channels and an internal carrier gas cylinder.
Rechargeable battery packs and automobile power cable options are available for
alternative power sourcing. See
,

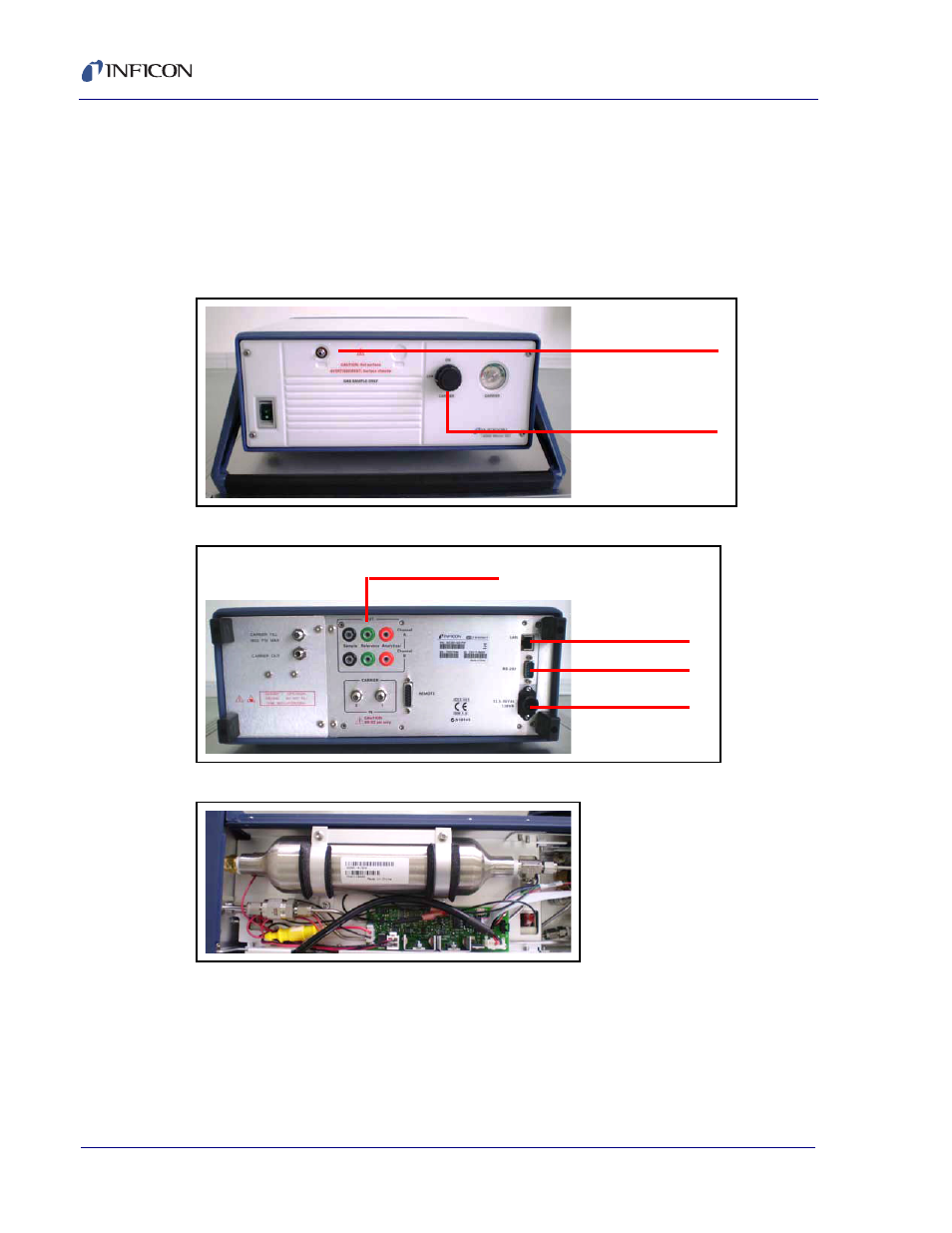

Figure 3-5 Front panel of the Portable 3000 Micro GC
Figure 3-6 Rear panel of the Portable 3000 Micro GC
Figure 3-7 Onboard carrier gas cylinder (battery installed underneath)
Portable 3000 Micro GC has an internal, refillable carrier gas tank. When full, it can
support 35 to 40 hours of operation, application dependent.
Portable 3000 Micro GC also contains an optional internal, rechargeable lead-acid
battery pack that supports instrument operation without external power.
Sample Inlet
Onboard carrier
gas control knob
Vents
Power supply
connector
RS-232 Port
RJ-45 LAN Port
