HMG 3000 Page 75
Power supply connector :
JEITA RC-5320 A
Pin 1 (outer contact): 0V (GND)
Pin 2 (inner contact): +12 – 30 V DC
USB device connector
:
Standard USB device connector for standard USB device connector cable.
Jack socket 3.5 mm (RS 232)
:
For connecting the HMG to the serial port (RS 232) of a PC.

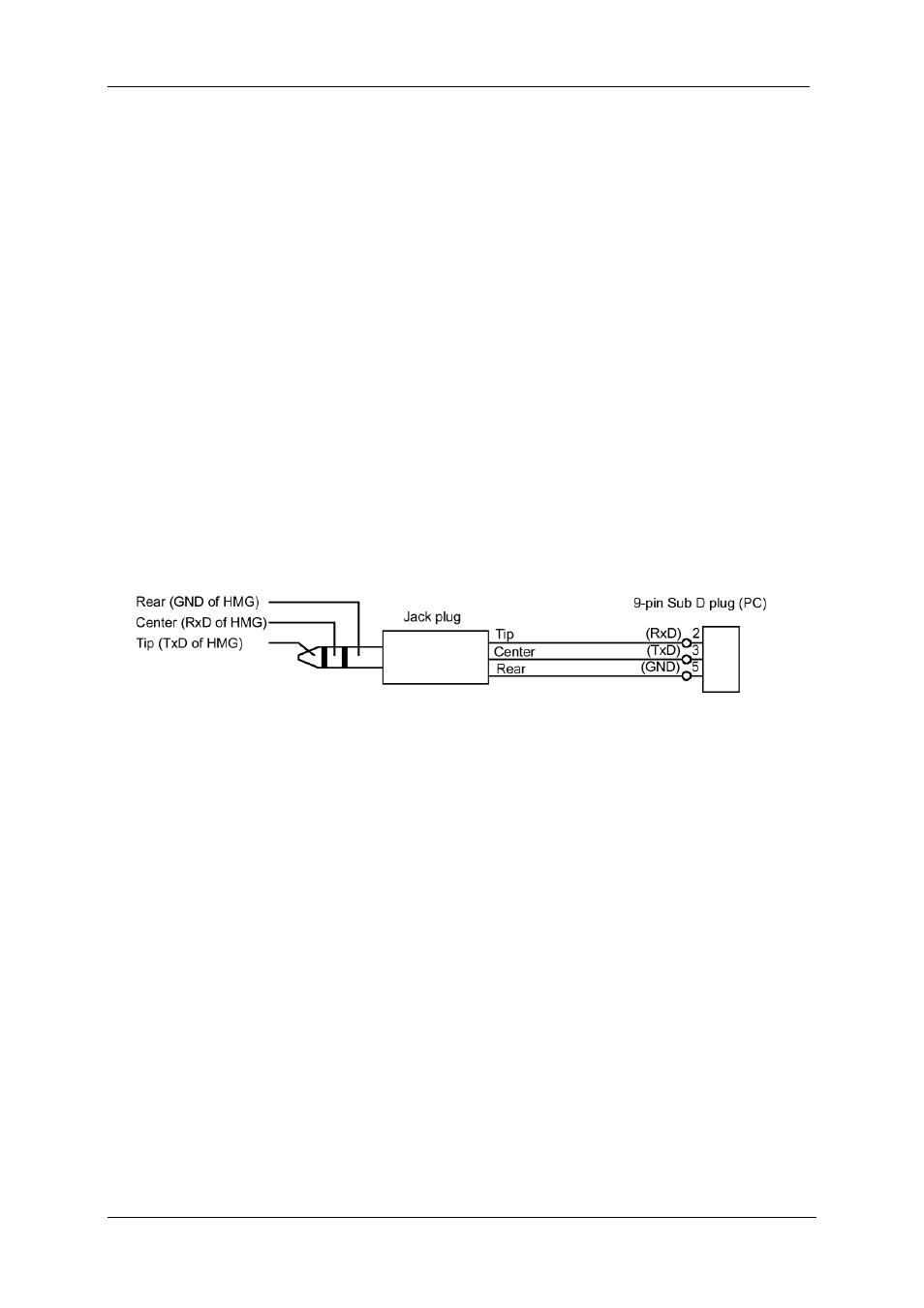

Connecting diagram/pin assignment:
