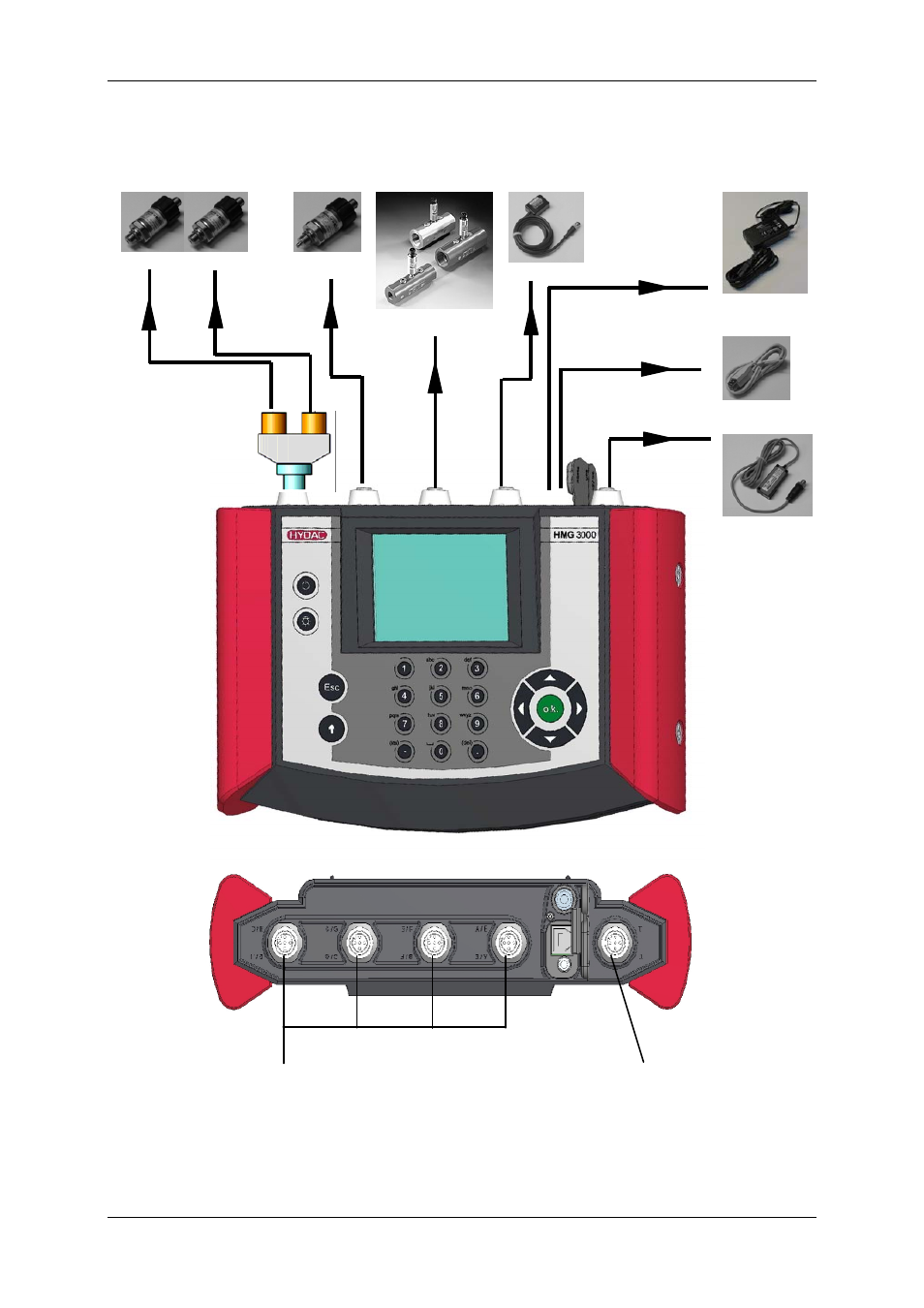

Connection of HMG Components
Pin 1: 12 V; 50 mA
2: Channel E / F / G / H
3: Signal A / B / C / D
4: GND
5: HSI
Pin 1: 12 V; 50 mA
2: Channel
J
3: Channel
I
4: GND
5: Analog input +/-10 V
Pressure transducers
Temperature
transducer
Volume transducers
UVM 3000
Power supply
USB connection cable
Speed sensor HDS 1000
