Tracker:

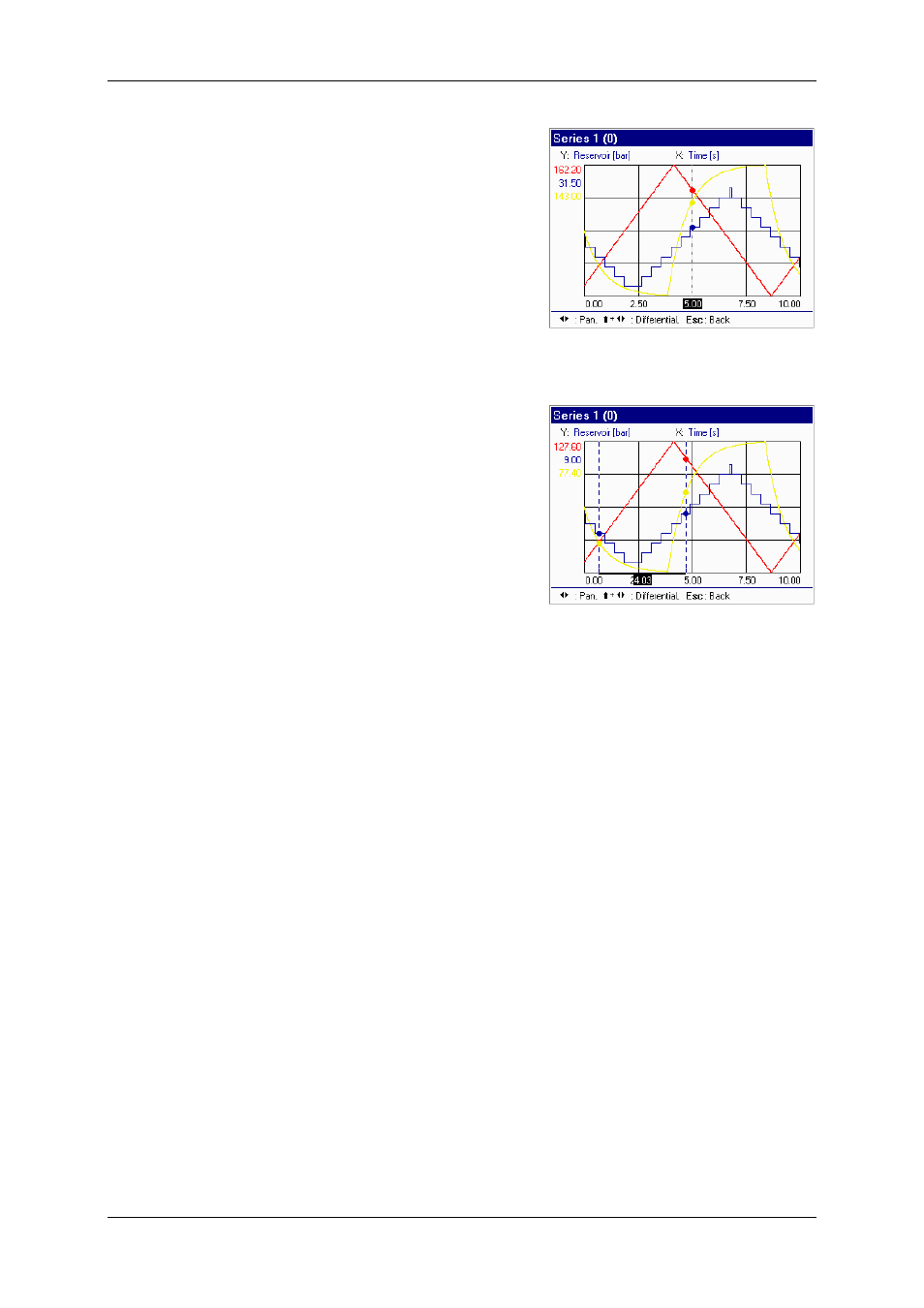

Using the Tracker is similar to using the
ruler. The difference is that each value
actually measured is rendered by a point.
Only a ruler appears for "processing" the
curve through time. The tracker "jumps"
from one measurement point to the next,
with the respective measured value of each
measurement channel shown along the
y-axis to this point x in time (x-axis).
Here, too, the differential between a selected
starting and end point of a particular curve
section (e.g. of a pressure pulse) can be
rendered and measured.
To exit the Tracker, press Esc.
Undo:
Undo enables you to undo any changes
(e.g. Automatic, Navigate, Magnifier) you
have made, step by step.
Performing measurements using the tracker
