HMG 3000 Page 59
Edition 11/2007 - V02 R01-S02 Stock no.: 669712

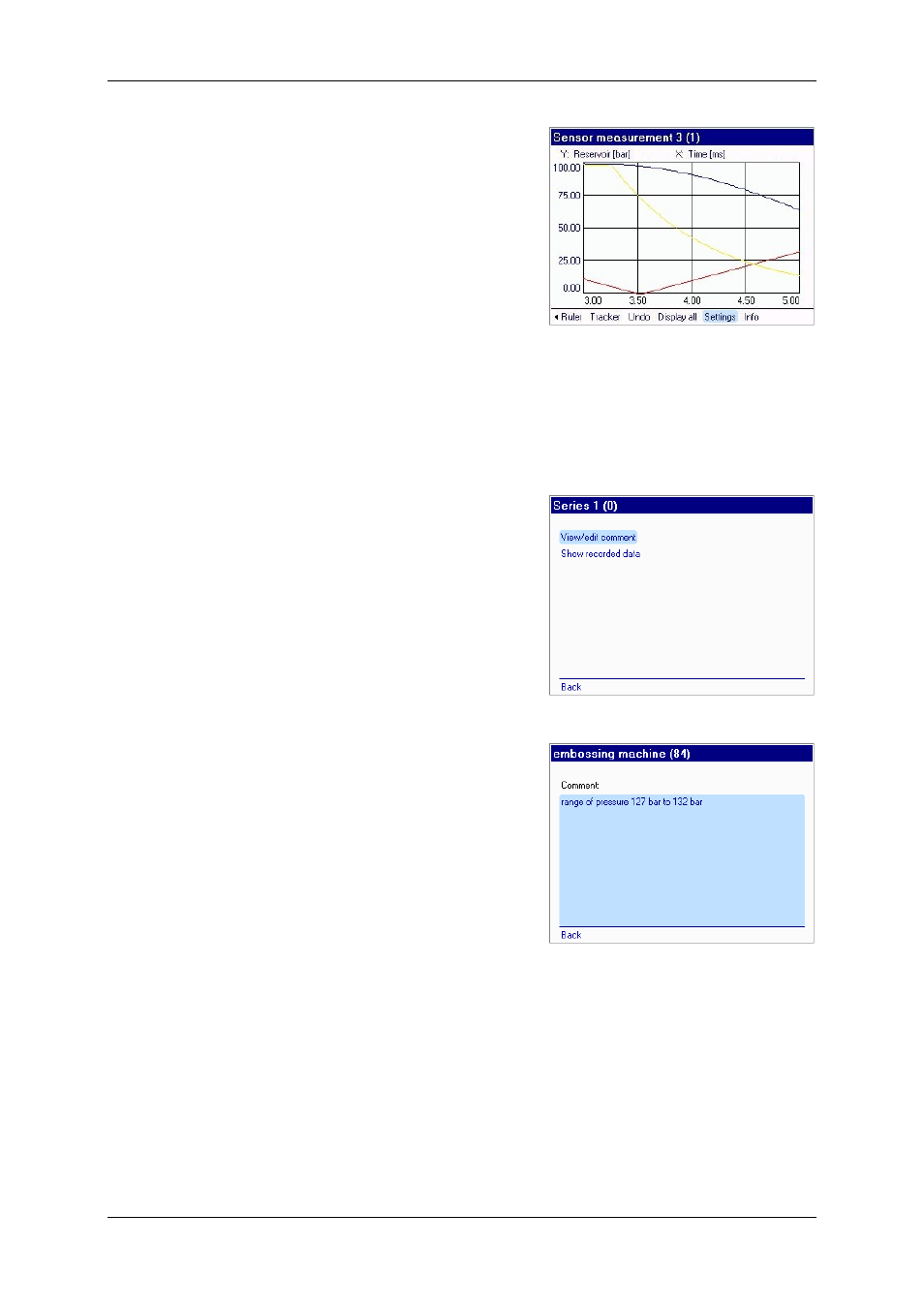

Entering the following new settings for
"Sensor measurement 3(1)" would result
in the curve shown at the right:
Scaling (lower and upper limit) of y-axis:
0 - 100 bar
– Control line
Time range of x-axis:
3.00 – 5.00 s
– Time
Info:
The last item Info
in the graph screen is
used to view and modify comments entered
by you (comments are entered using the
combination keypad). You can also have the
recording data for a measurement displayed.
To exit the Info menu, use Back.
The exit the graph, use Back or Esc.
