HMG 3000 Page 42
Edition 11/2007 - V02 R01-S02 Stock no.: 669712

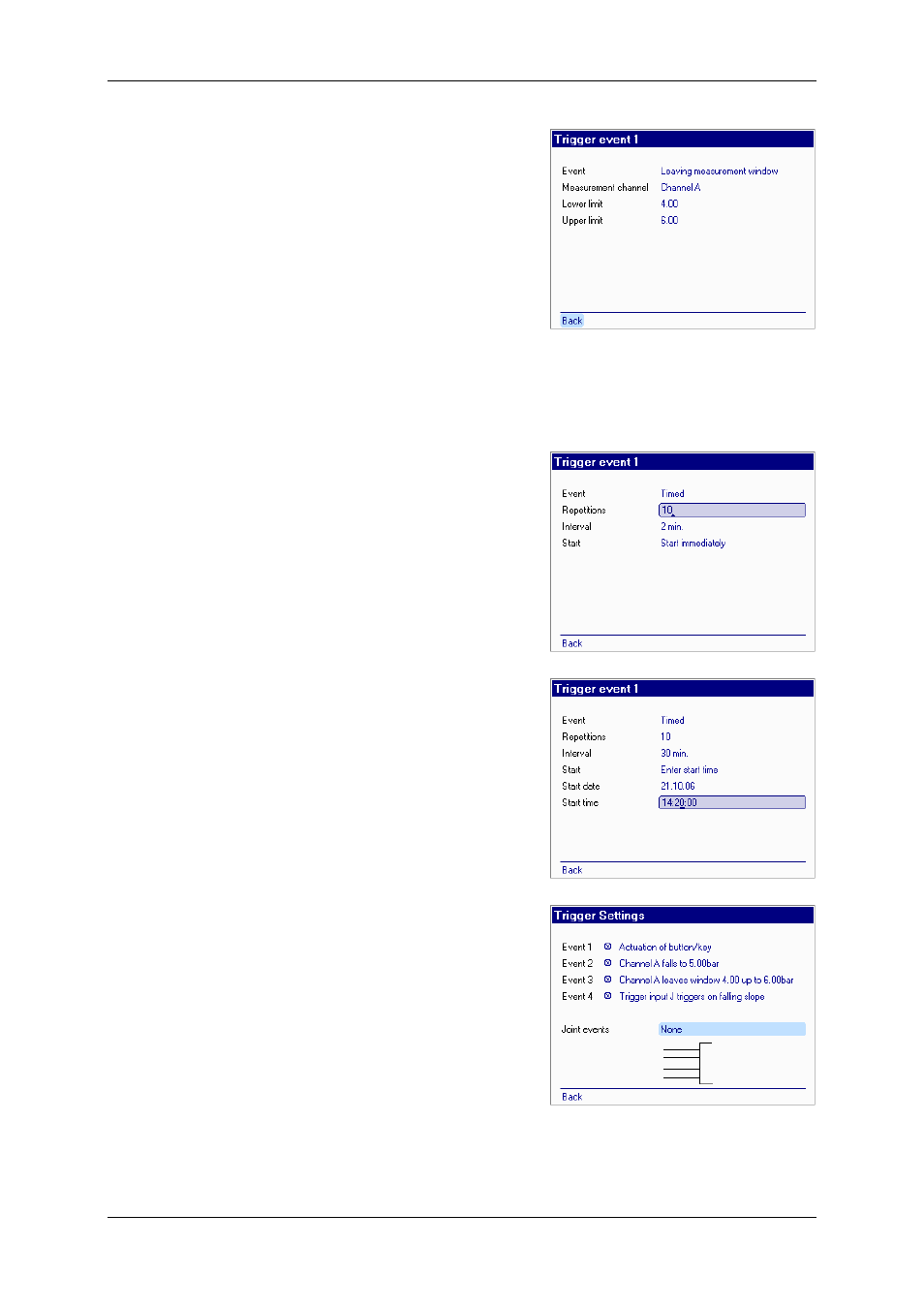

Event: Leaving measurement window
This trigger event is very similar to Specific
value
. You can specify a Lower Limit and
an Upper Limit. The trigger is activated
when the measured value enters the
measurement window. However, recording is
not started until the measured value leaves
the measurement window in a rising or
falling direction.
Event: Timed
The event setting using a time function
("timed") is useful for measurements which
are to be repeated at specific intervals. In the
Settings menu you can specify the number
of Repetitions (max. 30,000), the Interval
and the starting time. In the Start item you
can specify whether this event is to be
activated immediately (Start immediately)
or not until after a certain Start date and
Start time
.
In the Event: Timed example shown at the
right, a measurement is started 10 times,
every 30 minutes. The trigger becomes
active for the first time on 21 June 2005 at
14:20.
Up to 4 events can be specified for recording
triggered measurements. After making each
of the settings, return to the Trigger
Settings
menu via Back. The menu now
provides an overview of all the events and
settings entered by you.
