HMG 3000 Page 16
Edition 11/2007 - V02 R01-S02 Stock no.: 669712
In the Recording option line, select End
when time has elapsed
in the same
manner.

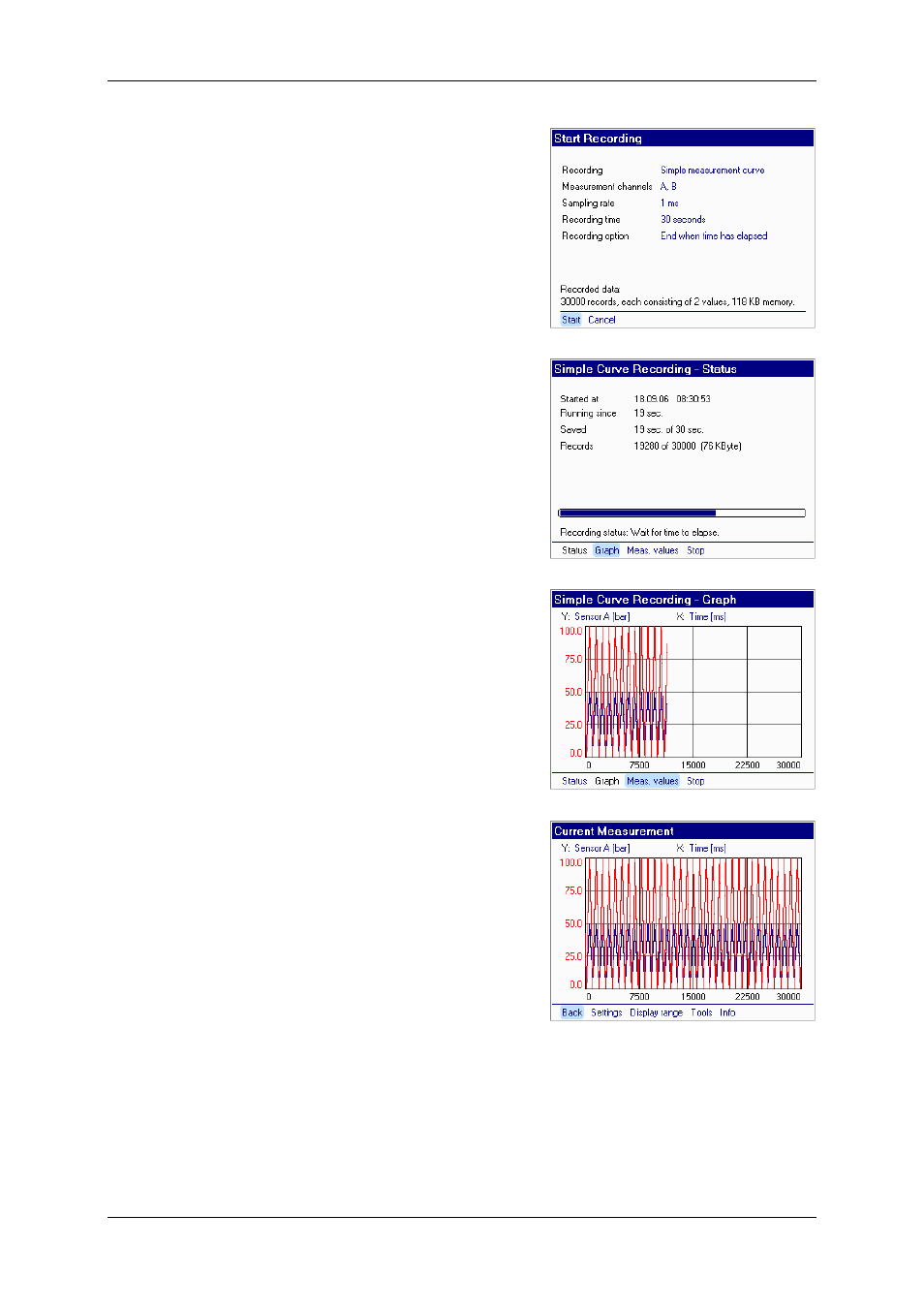

Your screen now shows the settings for
recording measured values made by you (cf.
screenshot at right). To double-check your
settings, refer to the recorded data selected
by you above the function bar.
Now you can start recording via Start in the
function bar + OK. A progress bar shows
you the status of your measurement. The
function bar offers you the option of having
the measurement curve plotted or the current
value shown while recording.
Graphic rendering
provides for a faster
visual impression of the changes in the
measured values. To have the measurement
curve displayed while recording, select
Graph
+ OK. The screenshot at the right
shows you the curve plotted for our example.
When recording is concluded, you have the
option of storing or discarding the
measurement. To store the recording, select
Save
and confirm via OK. The HMG
automatically assigns a name and a
consecutive number, which can be
subsequently changed by you as needed.
For our example, accept the name
suggested by the HMG and save via OK.
You can view any stored recording again or
delete it as you like. For more information on
this, refer to Detailed Operating Instructions.
