6.2.2 Viewing Recordings

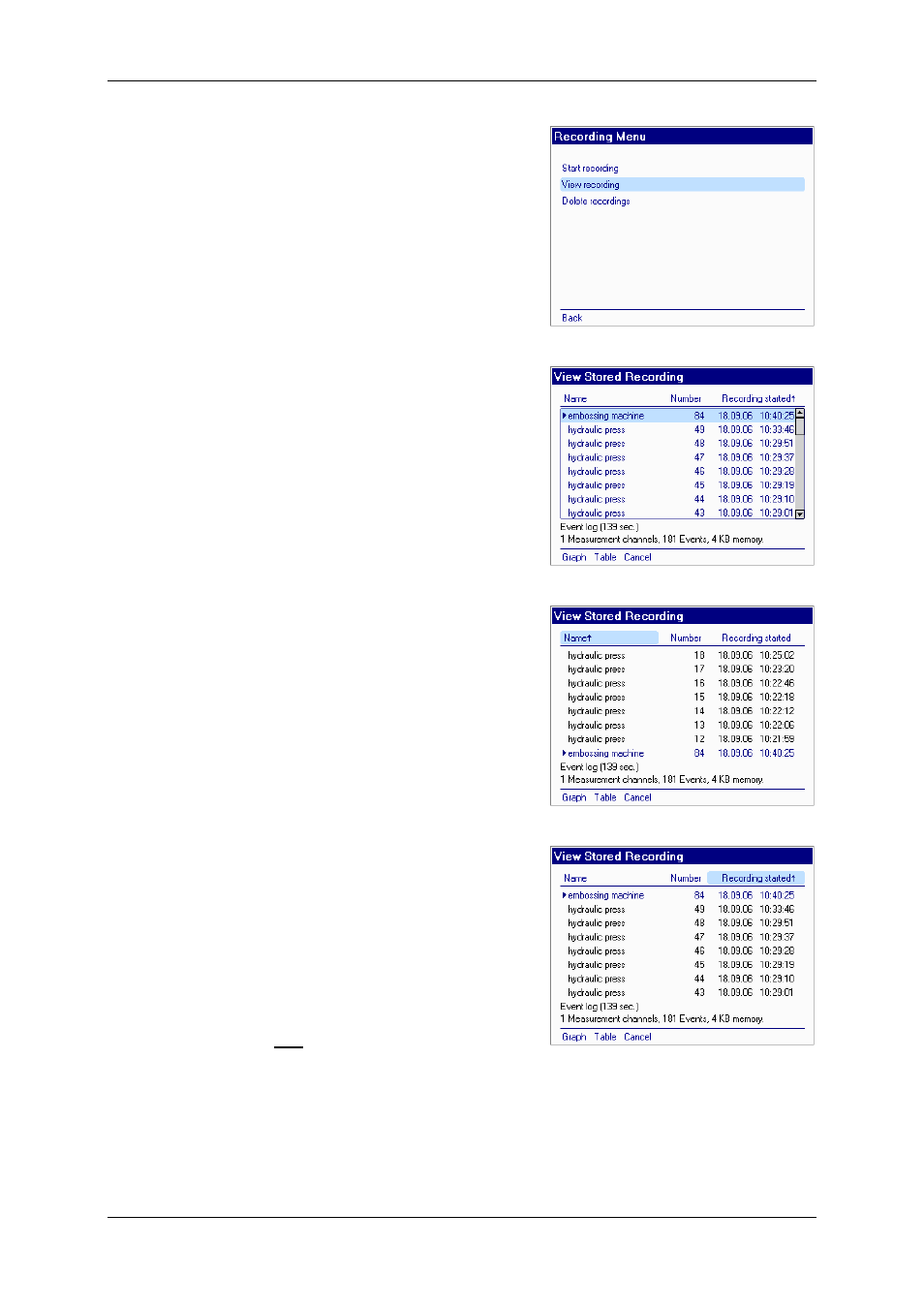

The View recording item in the Recording
menu causes a list of the recordings stored
in the HMG to be displayed. Use the arrow
keys to select the measurement you wish to
view. The selected recording is indicated by
an arrowhead and is blue-highlighted. The
associated recorded data appears above the
function bar.
Before selecting a measurement, this list can
be sorted according to
• Name
• Number
• Recording started
and in ascending (
↑) or descending order (↓)
in each case.
Hit Esc to change from the selection list into
the menu the next level up. The arrow key
(
↑ ) enables you to access the header row.
The list can be accordingly sorted by
pressing OK. To do this, select Name,
Number
or Recording started in the header
row. To sort in ascending or descending
order, click in the respective column header
via OK (pressing OK more than once causes
sorting to be done in the reverse order). An
arrow next to the column header indicates
whether sorting is in ascending (
↑) or
descending ( ↓) order. To return to the
selection list, press ( ↓) + OK.
In the list of the stored recordings, select a
measurement followed by OK. You are now
in the function bar and can now decide
whether you want to view the measurement
as a Graph or a Table. This applies to
measurement curves and event logs.
