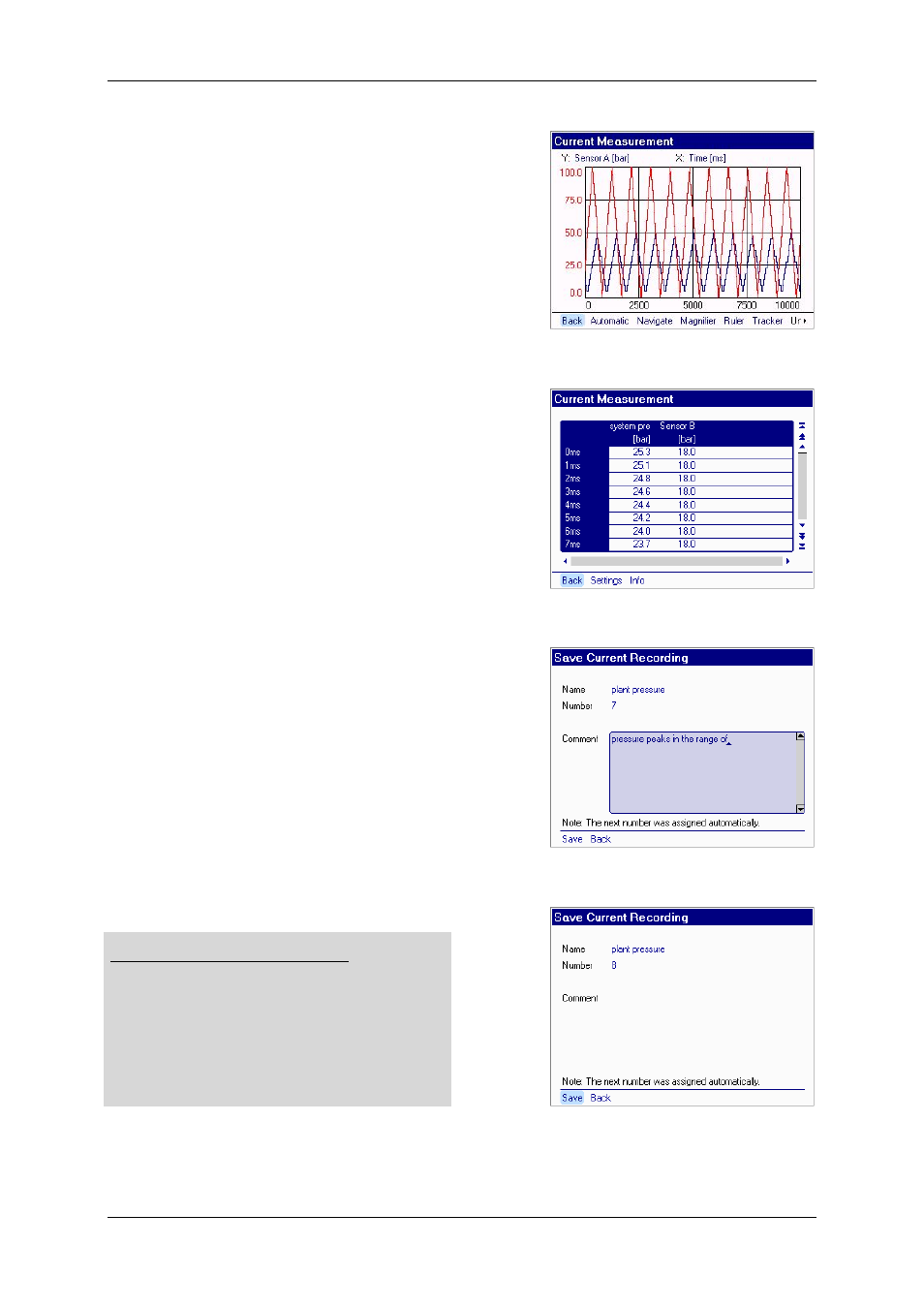

Before doing this, you can have the
measurement shown again as a curve
(Graph + OK) or as a measured value table
(Table + OK).
When doing this, other tools are offered for
analyzing the chart or table. For more
information on how you can retrieve
recordings and view them as a curve or
table, please refer to Viewing Recordings.
Back/Esc
enables you to return to the
Simple Measurement Curve Recording –
Status
screen.
To store the recording, select Save and
confirm via OK. The HMG automatically
assigns a name and a consecutive number,
both of which can be subsequently changed
by you as needed. Select a item + OK and
make your entries using the combination
keypad.
The Comment item enables you to enter a
text, e.g. a description indicating the
operational status of the unit or facility while
the recording was being made.
To store your event log, select Save and
confirm via OK. The HMG saves the
measurement settings together with each
recording so that a detailed measurement
log is created.
The following generally applies:
Each measurement is given a number.
The HMG automatically assigns the next
higher unused consecutive number, which is
always unique. Any gaps in the list of
numbers are not filled.
