6 Detailed Operating Instructions

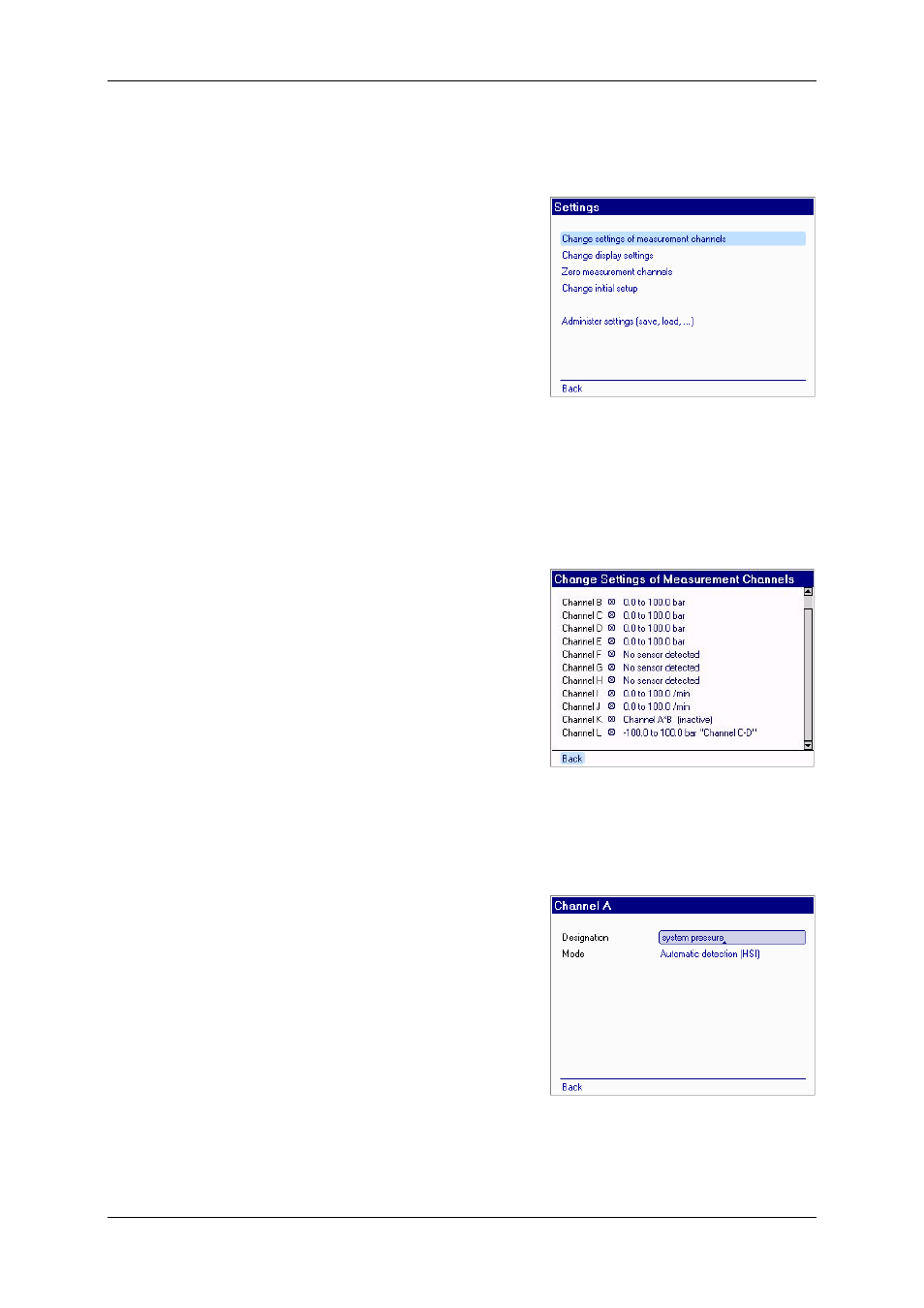

6.1 Settings Menu
Submenus of the Settings menu:
• Change settings of measurement
channels
• Change display settings
• Zero measurement channels
• Change initial setup
• Administer settings (save, load, ...)
• Administer sensor configuration
(not visible unless the configuration of a
SMART sensor has been read out, see
section 6.4.2.5)
6.1.1 Changing the Settings of the
Measurement Channels
Select Change settings of measurement
channels
to obtain a listing of all the
channels available in the HMG (see
screenshot). There is a checkbox next to
each of the channels enabling you to switch
the input on or off (+ OK key). Activated
channels
are marked by an “X”.
To the right of the checkbox is the
measurement range setting,
the unit of
measurement, and, as applicable, a
designation
for the sensor, e.g. "System
pressure".
The various options available for channels
A to H are demonstrated here using
channel A as an example. Select the
measurement range entry
to the right of
the channel using the arrow keys followed
by OK. You now proceed to the menu
window of the channel selected. To enter a
designation
, press OK again and then
enter it in the box using the combination
keypad, followed by OK.
