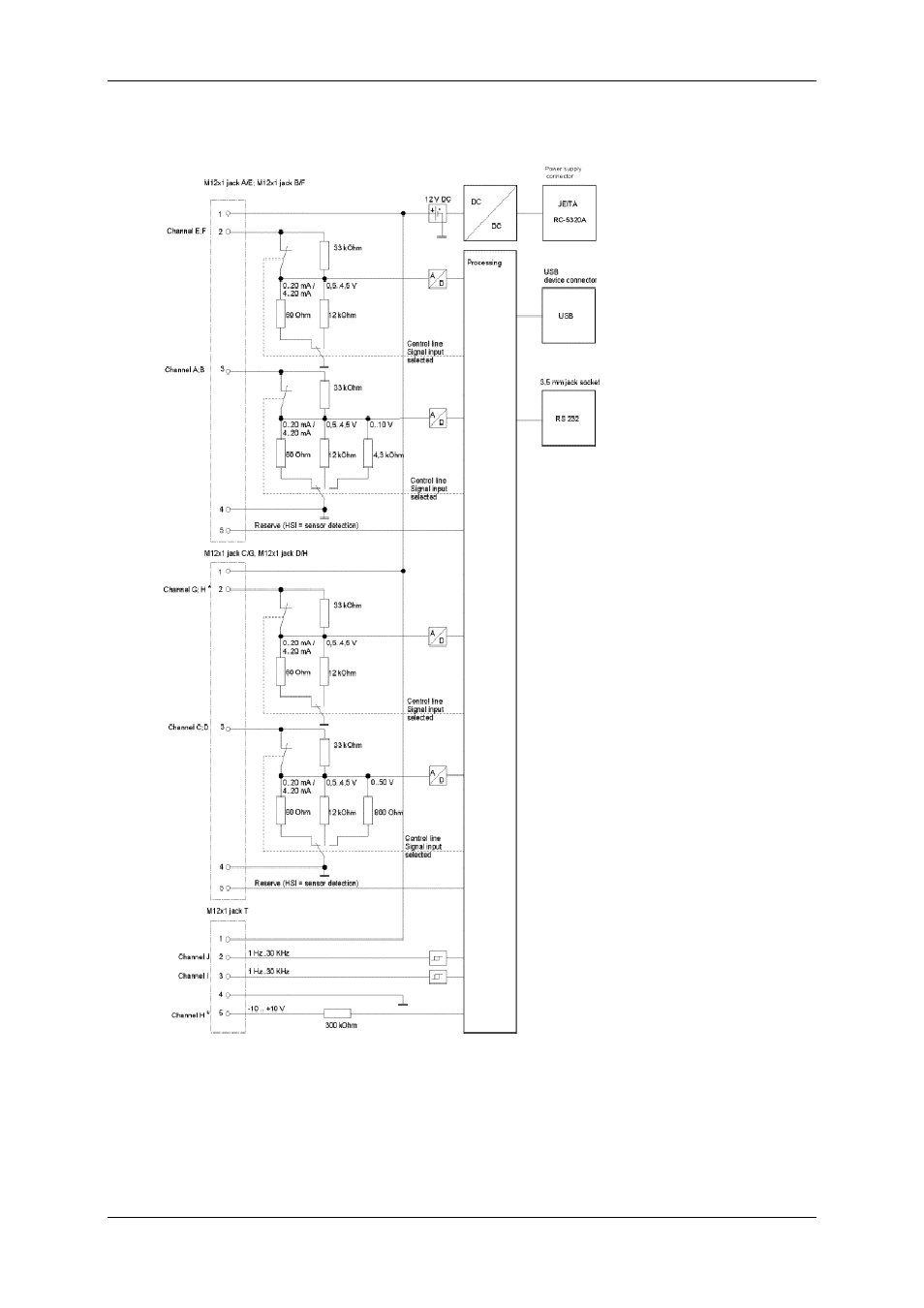

9.1 Pin assignment
Note on H*:
Channel H can be used for sensors with an analog signal (connection to jack D/H) or for
voltage measurements of -10 V to
+10 V (connection to jack T). The selection of the input signal is done when making the
measurement range setting for channel H.
