HMG 3000 Page 14
Edition 11/2007 - V02 R01-S02 Stock no.: 669712

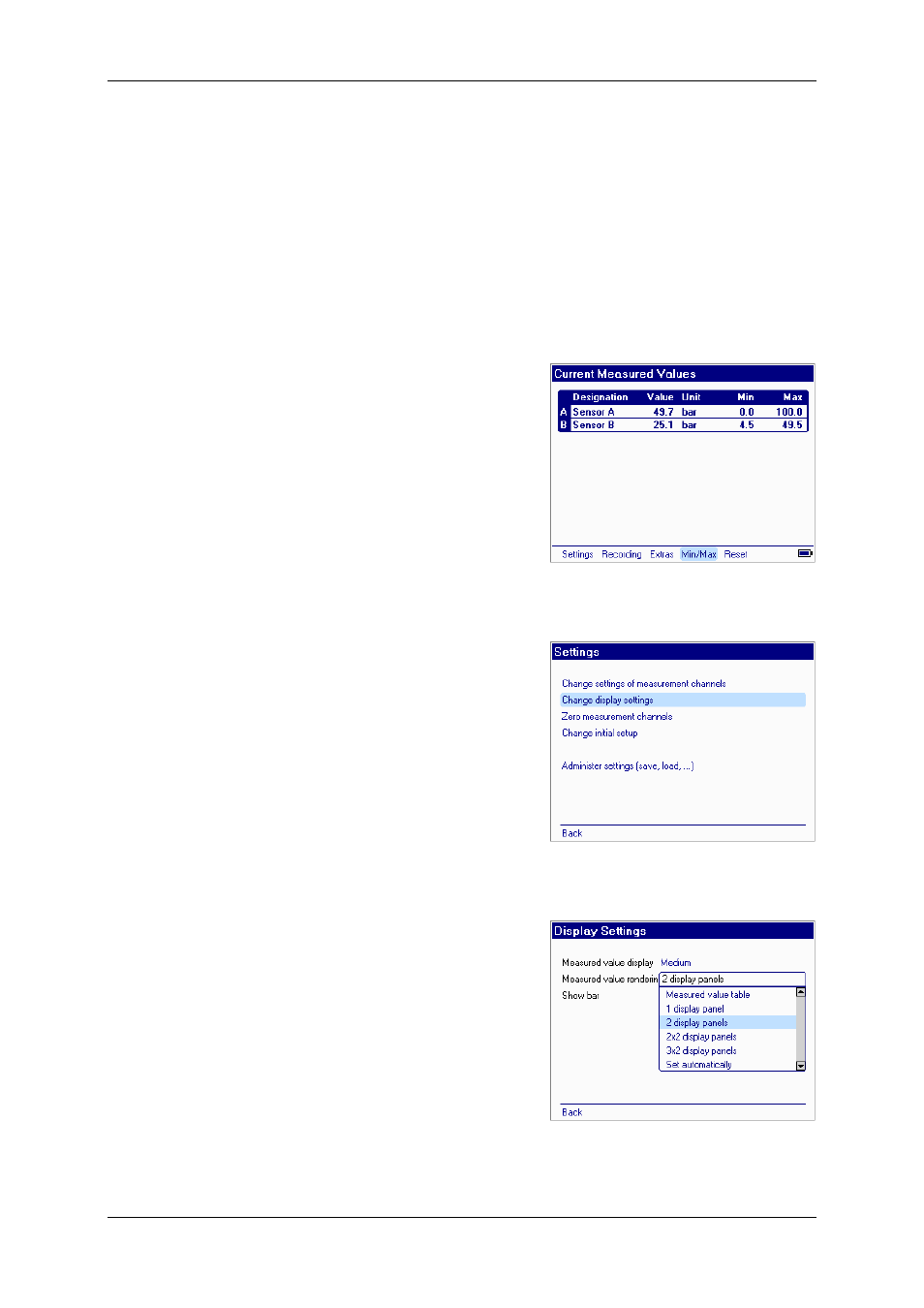

When HSI sensors featuring automatic
sensor detection are used, the HMG
automatically detects the measurement
range and the unit of measurement of the
two connected pressure transmitters and
shows them in the display with the current
measured values. You can also have the
minimum and maximum values for the
sensors displayed.
To hide or unhide the Min/Max display,
actuate the right arrow of the 5-way
navigation key until Min/Max is highlighted in
blue and then press the OK key. This causes
the Min/Max values of the sensors to be
additionally displayed. Pressing the OK key
again causes the Min/Max display to be
switched off.
When the Min/Max values are shown, Reset
appears in the function bar, enabling you to
reset the Min/Max values as needed. Select
them using the arrow keys (blue highlighted)
and then press the OK key: the Min/ Max
values are reset.
The measured values can also be displayed
in a 7-segment pane. To do this, go to
Settings
in the function bar and then press
OK. In the Settings menu, navigate to
Change display settings using the 5-way
navigation key, and then confirm via OK (cf.
screenshot of two-pane display on the next
page).
Now select the second item, Measured
value rendering
. Measured value table is
the default setting here. Press OK. A drop-
down list
appears in which you navigate to 2
display panels using the arrow keys,
followed by confirming via OK. To return to
the measured value display press Esc twice.
