Safety Basic Monitor
Configuration of the safe inputs
7.2 Assigning the diagnostics outputs

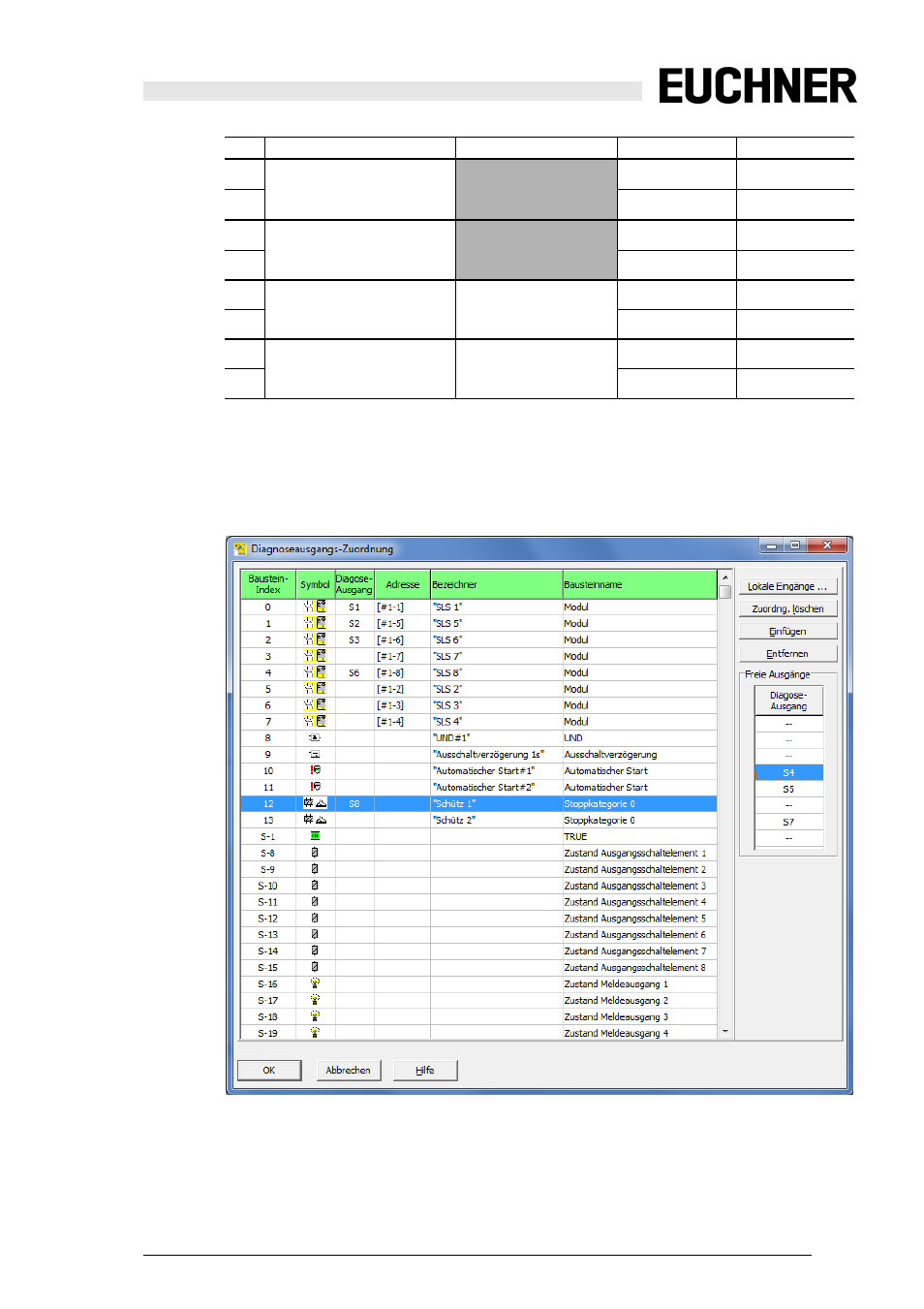

Diagnostics outputs represent the status of the selected safety devices. Outputs
are assigned using the ‘Diagnostics Output’ column in the ‘Module Index Assign-
ment’ field.
There the selected diagnostics outputs can be assigned to the module indices.
Each diagnostics output can be assigned to just one safety device.
Safety Input Dry Contacts Safety Input OSSD Std Input Diag Out
S1
√ √
S2
√ √
S3
√
S4
S5
√
S6
S7
√
S8
Tab. 7-39.
