Product Description
4. Product Description
This chapter is intended to inform the reader about the special characteristics of
the Safety Monitor. It describes the design and the functionality of the devices.
4.1 Technical data
The technical data are placed in the data sheet. Please view the current version
on the web page: www.euchner.de
4.2 Special characteristics of the Safety Basic Monitor
• The module uses only the necessary AS-i addresses.
• Various configuration possibilities for the safe inputs (see chap. tion possibilities for the safe inputs>).
• No limitation of cable length at safe inputs (the maximum loop resistance is
150 Ohm).
• A safe signal exchange of 2 signals between Safety Monitor and AS-i Safety
Module as well as between two AS-i Safety Modules are possible.
• LED displays acc. to other Safety Slaves or to the Monitor.
• Simple configuration of the AS-i-Slaves using ASIMON.
• Chipcard for the simple exchange.
• Micro-USB port for configuring with AS-i-Control-Tools and ASIMON.

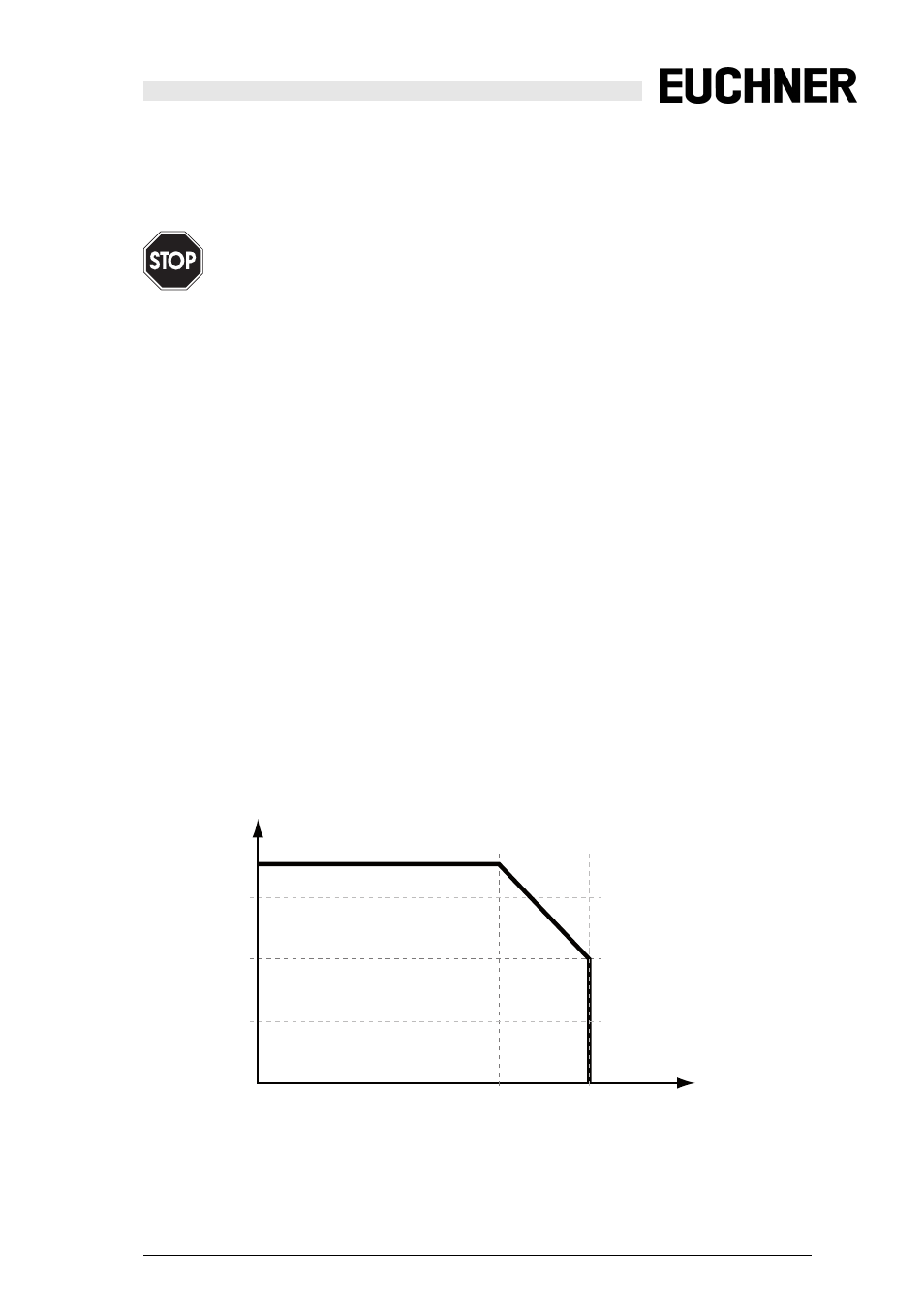

4.2.1 Derating by 24 V auxiliary power
Warning!
This chapter must be read before installation and operation of the device in conjunction
with other safety components on protected machinery.
I
AUX, max [A]
1
2
3
3,5
40 55
Tamb [°C]
