Safety Basic Monitor
Product Description

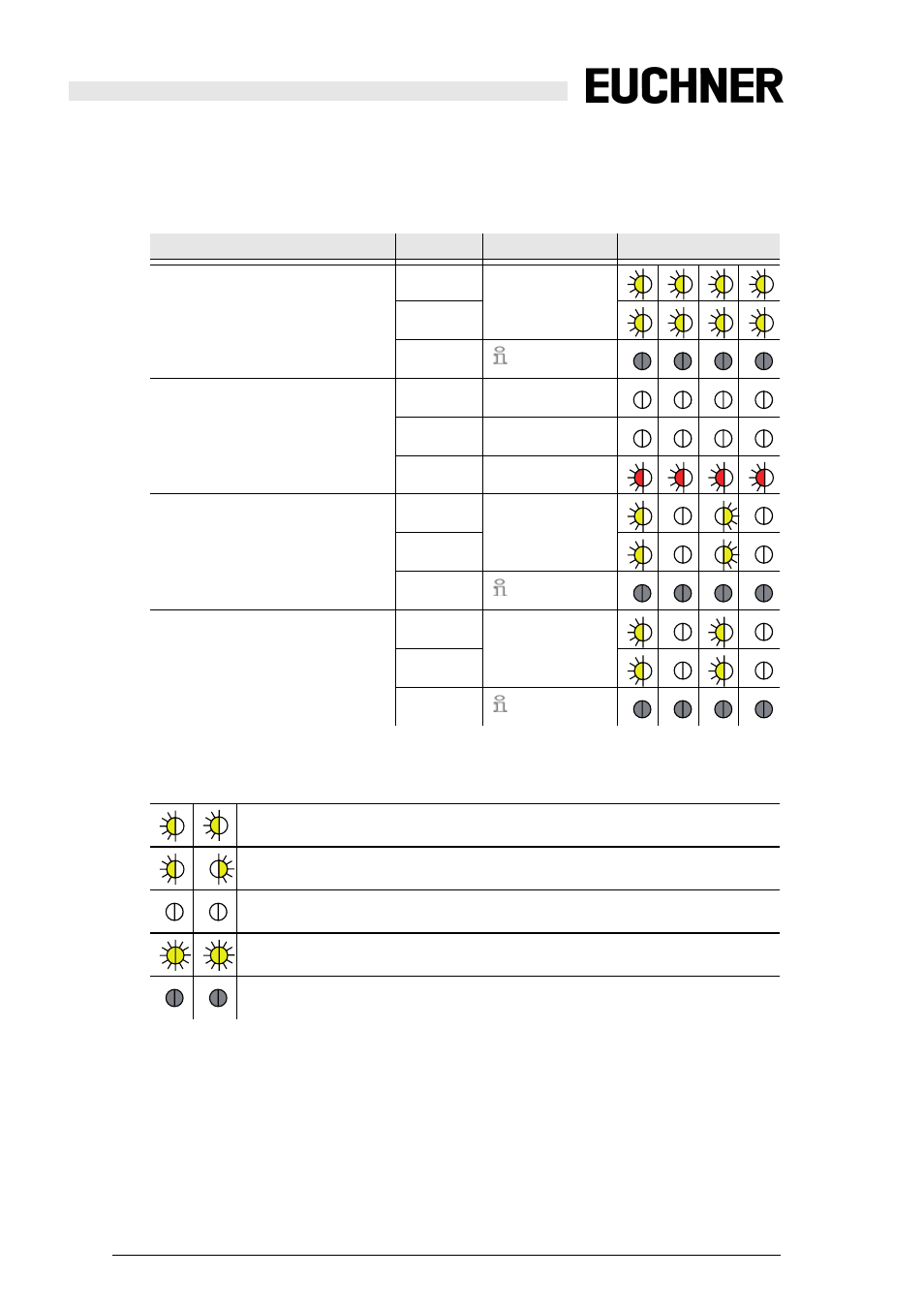

4.8.1 LED flashing sample
2. If ’config-error’ and ’peripheral fault’ occur simultaneously, only ’config-error’ is displayed.
3. ’red’ has higher priority than ’yellow’
operation LEDs frequency Status
chip card will be written
(yellow) S1-S4 2 x 1 Hz
S5-S8
SM, AS-i M,
O1, O2
table 4-2
internal error
(red) S1-S4 —
S5-S8 —
SM, AS-i M,
O1, O2
8 Hz
data on the chip card + device diffe-
rent
(yellow) S1-S4 1 Hz
S5-S8
SM, AS-i M,
O1, O2
table 4-2
chip card defect
(yellow) S1-S4 1 Hz
S5-S8
SM, AS-i M,
O1, O2
table 4-2
Tab. 4-3.
legend
flashing in common mode
flashing in push-pull mode
off
on
standard view acc. to table 4-2
Tab. 4-4.
