Safety Basic Monitor
Product Description
4.8 LEDs
LEDs Status Signal // Description
S1, S2,
S3, S4,
S5, S6,
S7, S8
(yellow) contact (S1 … S8) open
1 Hz cross circuit //
contact (S1 … S8) closed
SM
1
1. ’yellow’ has higher priority than ’red’ and ’green’ and will displayed preferentially.
AS-i supply power not OK
(green)
1 Hz ’protective mode’ and ASIMON active
(red)
1 Hz ’configuration mode’ and ASIMON active //
’configuration mode’ active
2 Hz
at least 1 device in state ’red flashing’ or ’yellow flashing’
(yellow)
2 Hz
1 Hz service button, state: ’teach-error’
service button, state: ’ready’
AS-i M 2
off-line, monitor mode
(red)
1 Hz ’peripheral fault’ without ’config error’
’config error’, auto addressing not possible
1 Hz
’config error’, auto addressing possible
(green)
2 Hz
master: ’protective mode’, no error //
1 Hz master: ’configuration mode’, no error //
O1, O2
3
(yellow)
output (O1, O2) off
1 Hz restart inhibit
8 Hz correctable error codition
output (O1, O2) on
(red)
no auxiliary voltage
SM,
AS-i M,
O1, O2
1 Hz
competing master active

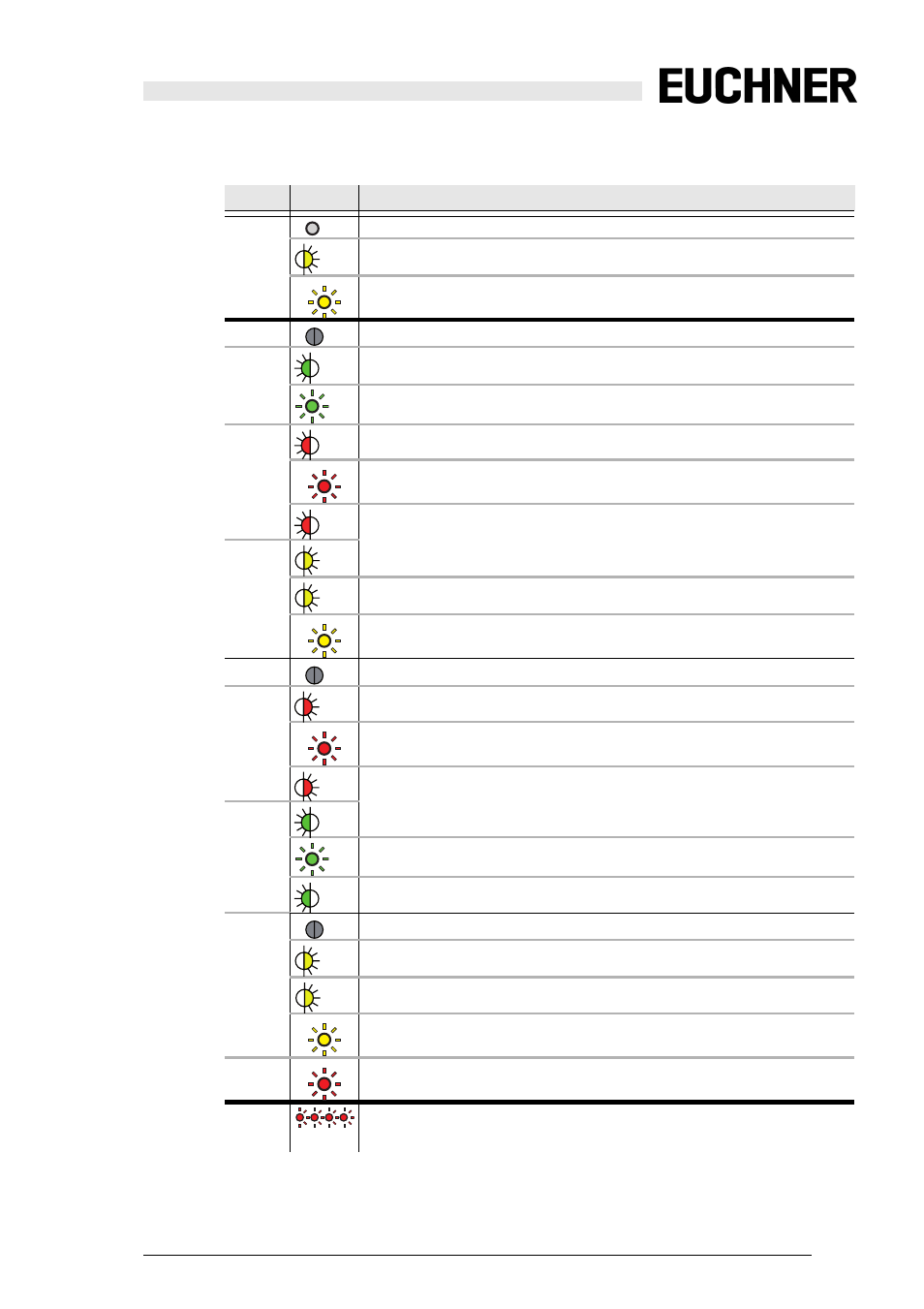

Tab. 4-2. LEDs
