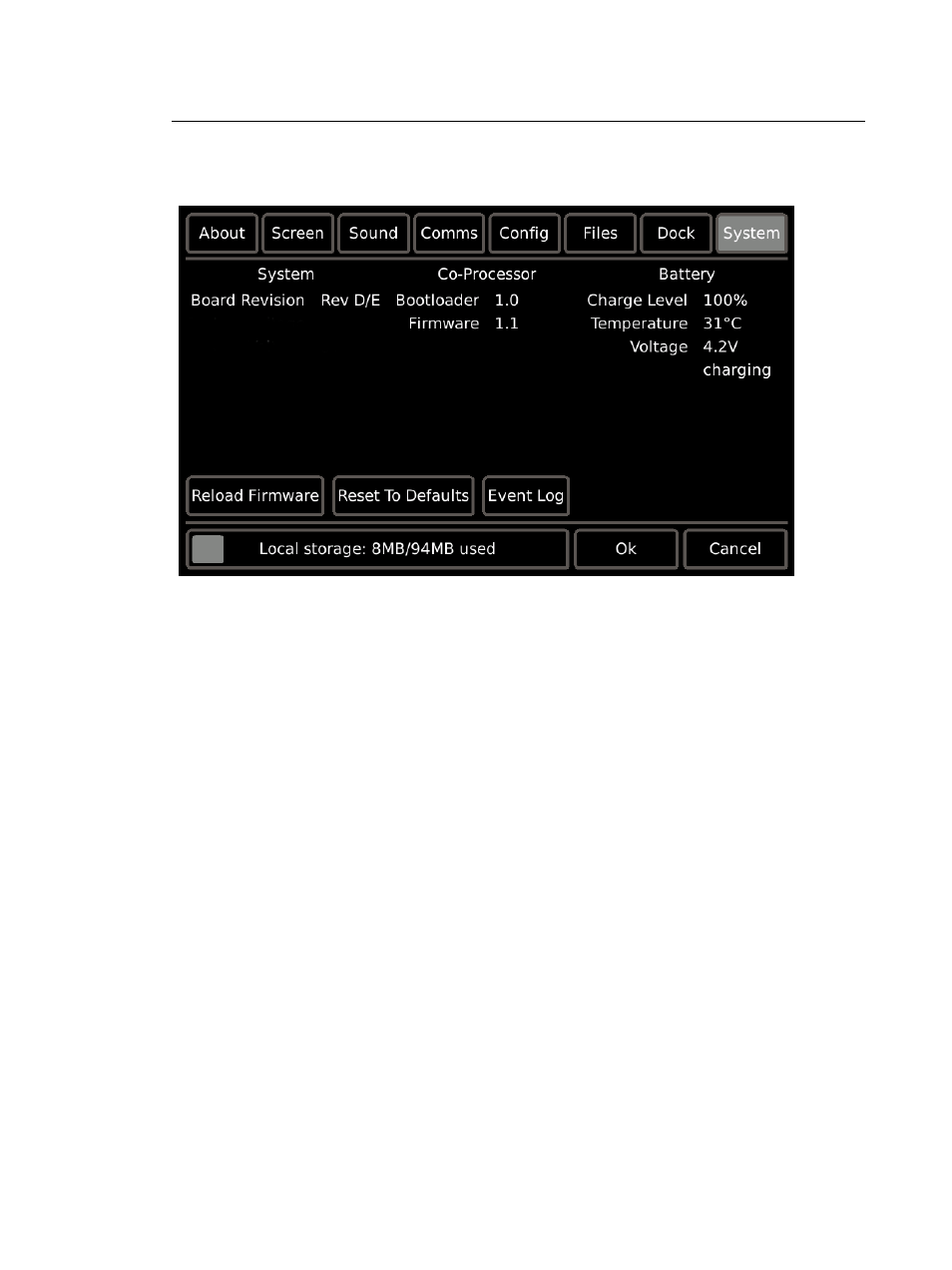

System
With the exception of battery information, the information displayed on this tab is primarily
of interest to ETC Technical Services for troubleshooting. Additional features of this tab
includes the ability to
, and view the
.
System
The system information displayed relates specifically to the Handheld Touchscreen
hardware.
•
Board Revision - the Touchscreen hardware circuit board revision.
Co-Processor
The co-processor provides information that relates to the Handheld Touchscreen processor
and system software.
•
Bootloader: the Touchscreen bootloader version.
•
Firmware: the Touchscreen firmware version.
Battery
The battery information displayed is specific to the Handheld Touchscreen battery.
•
Charge Level: the amount of current charge
•
Temperature: the current temperature of the battery
•
Voltage: the current voltage output of the battery
•
When the Handheld Touchscreen is charging, “Charging” status will display
