8 Configuration and User Manual
USB Ports
Two USB ports are located on the bottom left edge of the Handheld Touchscreen.
• USB - this connection is used for local upload and download of configuration and theme
files using USB removable media.
• micro USB - this connection is used for charging the Handheld from a USB power
adapter.
See “Charging using Micro USB Power Supply” on page 37.

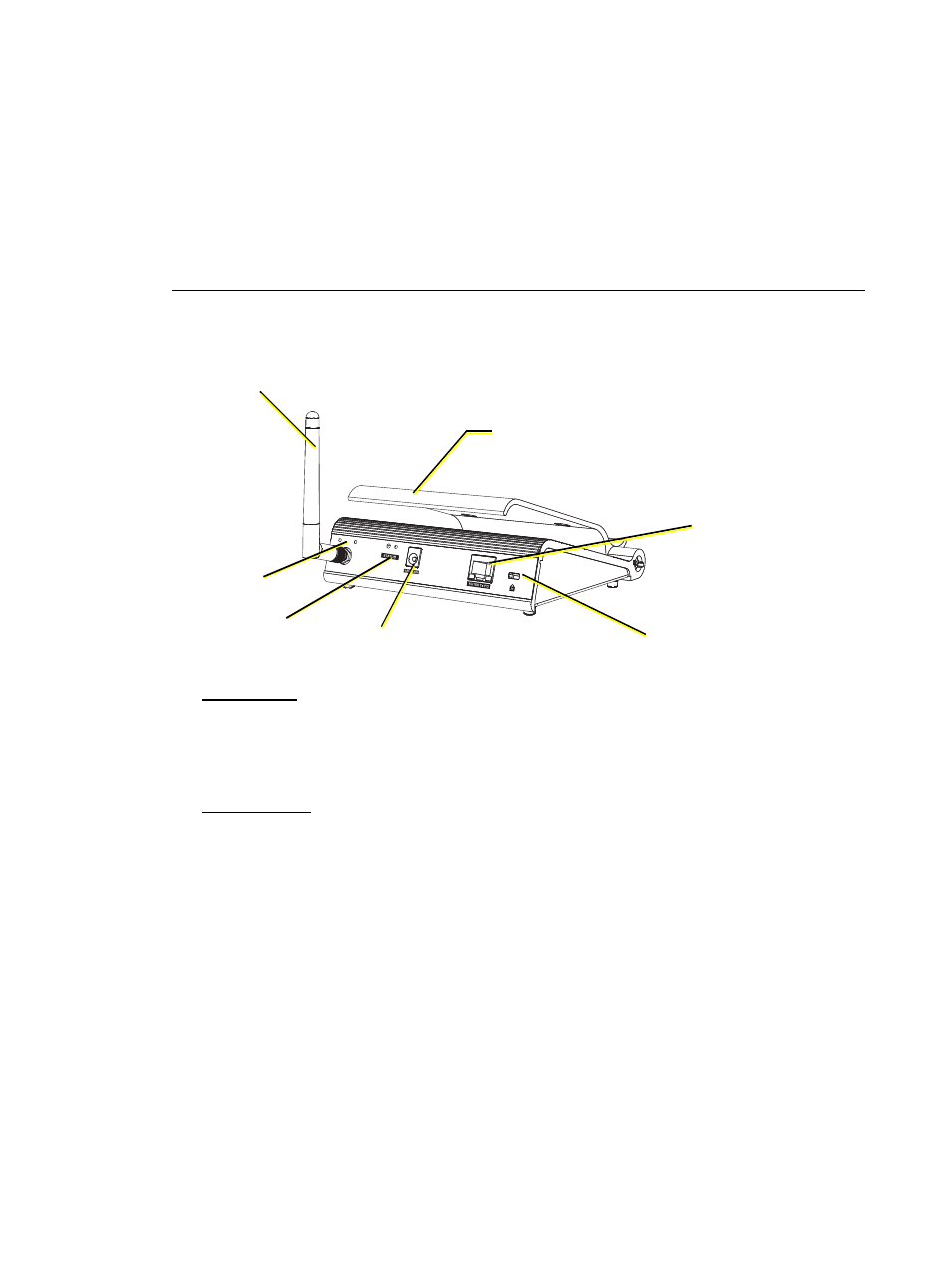

Docking Station Overview
The Docking Station connects to the Paradigm control network using Ethernet or
NetConnect (Power over Ethernet 802.3af) and serves the Handheld Touchscreen as both
a table top charging station and a wireless access point for MeshConnect communications.
NetConnect
NetConnect uses Power over Ethernet (IEEE 802.3af) communications to connect between
the Paradigm Docking Station and the Paradigm Architectural Control Processor (P-ACP).
A 12V DC power input adapter is supplied and can be used when Power over Ethernet is
not available.
MeshConnect
MeshConnect Uses the built-in radio to communicate wirelessly with the Handheld
Touchscreen Station. See “MeshConnect Overview and Setup” on page 11.
Reference the Paradigm Docking Station Setup Guide for more information.
Rx Tx
Reset Pwr
MeshConnect
antenna
RX and TX
Indicators
DC Power input
12V Input
Lock
NetConnect
Adjustable
Cradle
Reset button
Power indicator
