Configuration and User Manual

LinkConnect Overview and Setup

For the Handheld Touchscreen to use both power and control over the LinkConnect

network, connect a LinkConnect Portable Cable between the Handheld Touchscreen and

an installed Unison Heritage Portable Receptacle Station (UH1RS).

Installation and Configuration Requirements

Prior to connecting your Handheld Touchscreen using LinkConnect, please confirm the

installation meets the following requirements:

All components used, including the Unison Heritage Portable Receptacle Stations and
the Handheld Touchscreens, must exist in the LightDesigner configuration.

The “Portable Wired” property of the Handheld Touchscreen station is configured within
the LightDesigner Property Editor for use with the Portable Receptacle Station.

The Unison Heritage Portable Receptacle Station Neuron ID (labeled on the front of the
station with the cover removed) is associated to the configured station in LightDesigner.

The LightDesigner configuration should be uploaded to the connected Paradigm
Architectural Control Processor(s).

N o t e :

A Handheld Touchscreen can be associated to multiple Portable Receptacle

Stations within a configuration. The displayed configuration and theme may be

different for each configured Handheld Touchscreen and portable receptacle

station depending on the assignments in the configured space.

N o t e :

If the ID is not entered into the LightDesigner configuration, the station must be

manually connected (bound) at the Paradigm Architectural Control Processor (P-

ACP). When manual binding is required, reference the Paradigm Architectural

Control Processor Configuration Manual.

N o t e :

Information related to LightDesigner software including configuration, upload, and

associating Neuron/ROM IDs, can be found in the LightDesigner online help

system.

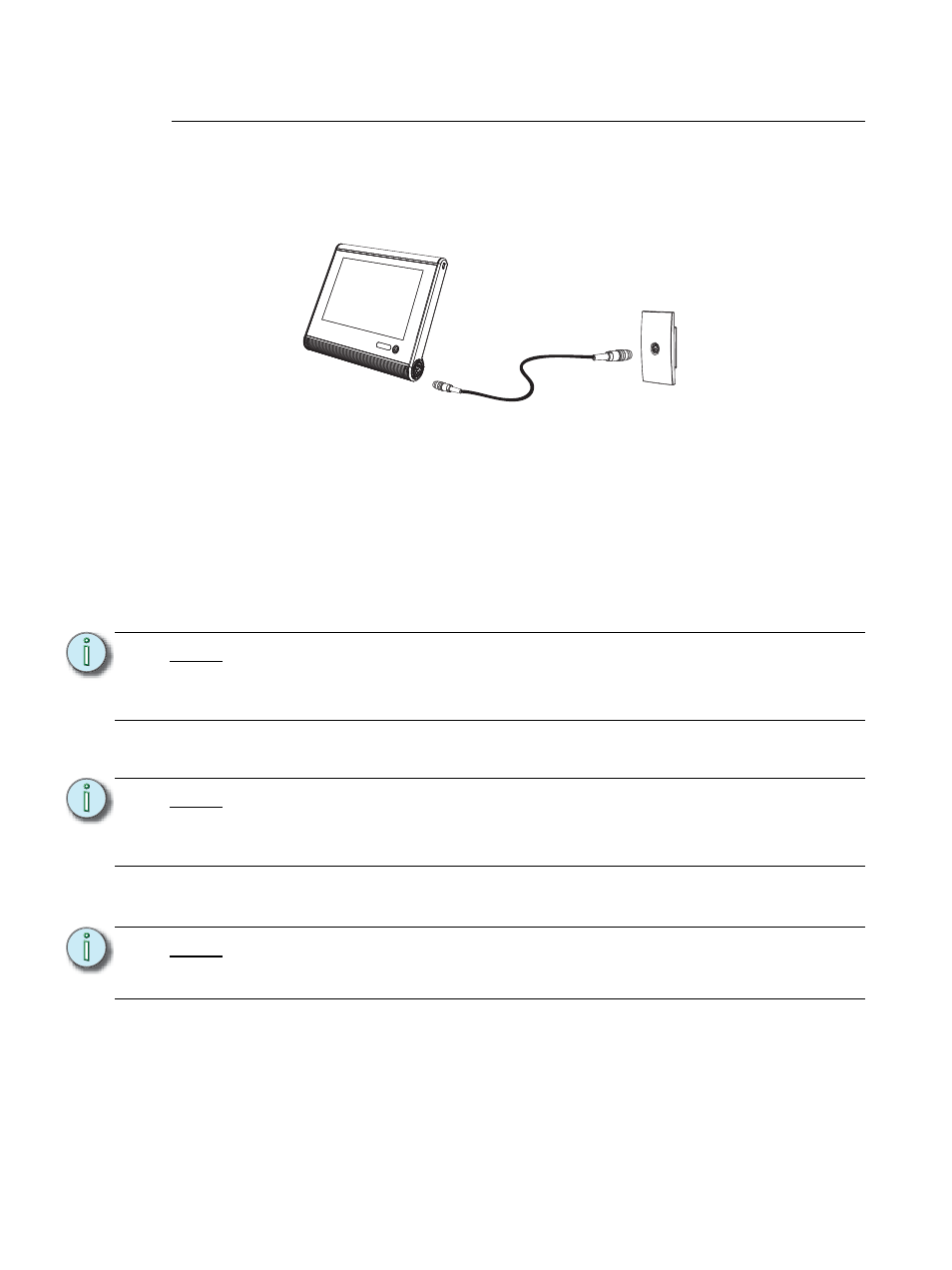

Handheld

Touchscreen Station

(P-LCD-H)

LinkConnect

Portable Cable

Unison Portable

Receptacle

Station (UH1RS)

LinkConnect system
