Handheld Touchscreen and Wireless Accessories User Manual 7
Wireless Status Soft Button
• The top right corner of the Touchscreen displays a soft button which displays as
different icons depending on the current state of the system and how the Handheld is
configured. The Handheld can be configured for Manual or Automatic configuration
selection.
• When the Handheld is setup for “Manual” Wireless Config Selection, you can select
the configuration you wish to connect to from the available configurations in the
“Select Configuration” list. Reference
page 16 for more information.
• When the Handheld is setup for “Automatic” Wireless Config Selection, the
Handheld will search and connect to the strongest wireless signal available and
load that associated configuration. Reference
page 16 for more information.
Docked
• When the Handheld is docked to a Docking Station, the bottom left corner of the
Touchscreen displays an animated icon representing the Handheld on a Docking
Station.
Battery
• The bottom right corner of the Touchscreen displays a battery level indicator. When the
battery level is high, the indicator displays graduated green levels. When the battery
level is low, the level indicator graduates through amber colors to a flashing red.
See
“Charging the Handheld Touchscreen” on page 37.

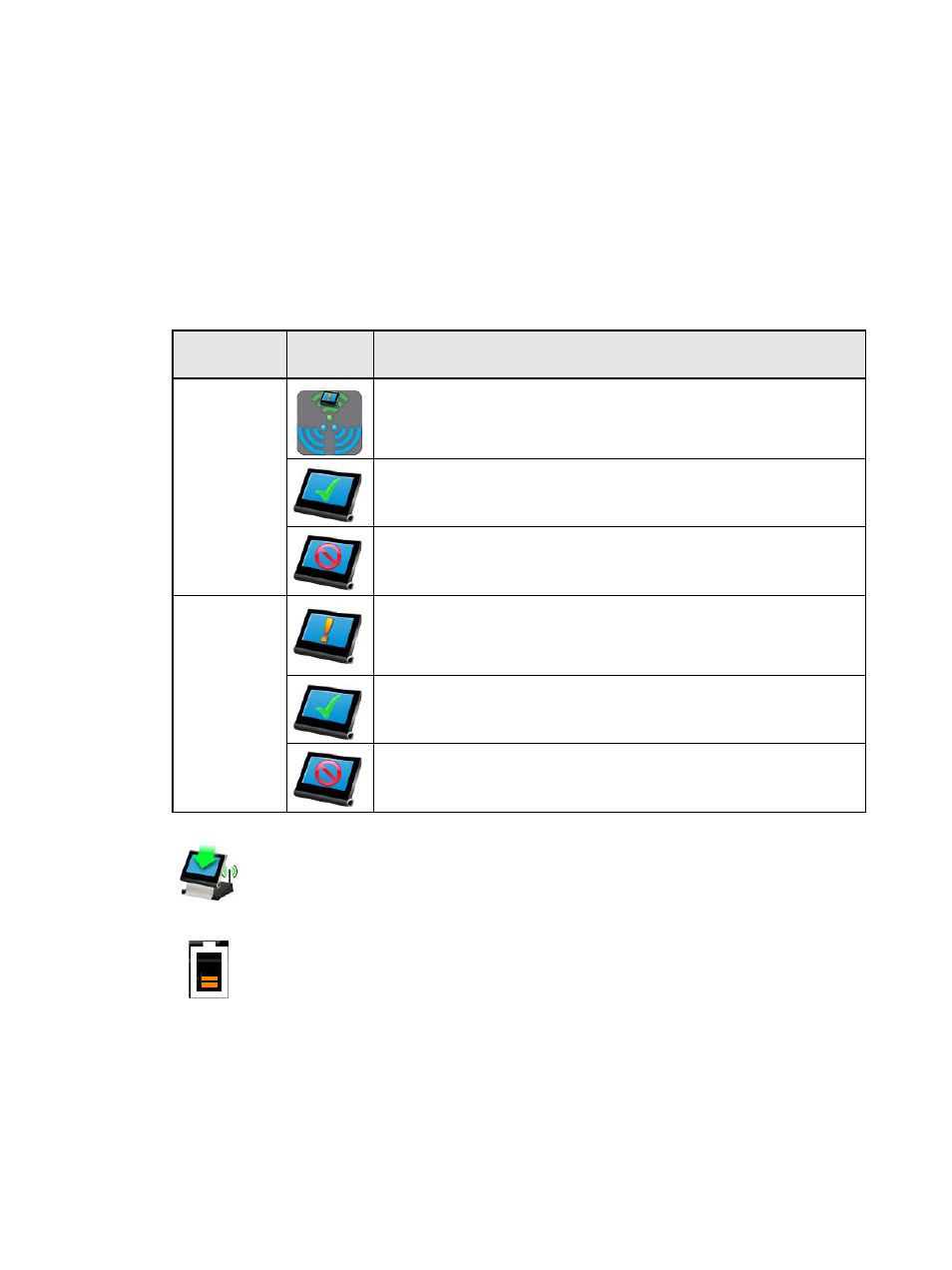

Configuration
mode
Icon Description
Manual
Other configurations available. This icon displays when other
wireless configurations are within range. Press the icon (soft button)
to display the Select Configuration screen, then select the desired
configuration for loading.
Displays when the Handheld is connected to and using the only
available configuration. When this icon displays, there are no other
configurations available for selection.
Configuration unavailable. This icon displays when the Handheld is
not within wireless range of any Wireless Access Station or Docking
Station.
Automatic
Configuration change is pending. This icon displays when a
Handheld is about to load the configuration from another detected
Wireless Access Station or Docking Station that has a stronger
wireless signal.
Displays when a Handheld is connected to and using the only
available configuration or the strongest detected wireless
configuration.
Configuration unavailable. This icon displays when the Handheld is
not within wireless range of any Wireless Access Station or Docking
Station.
